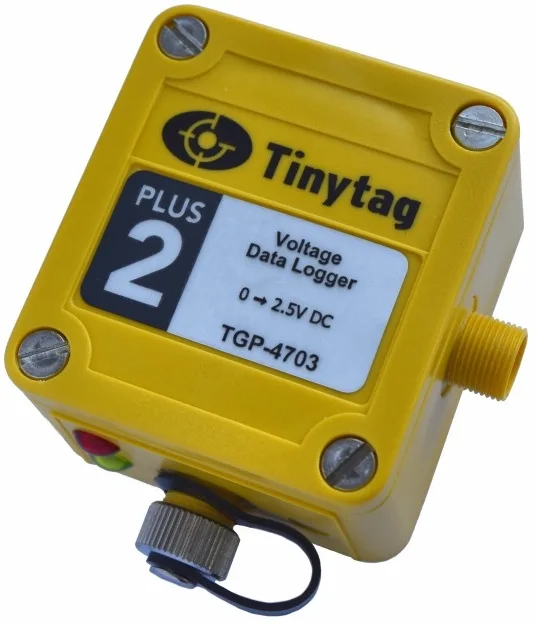

Tinytag Plus 2 Instrumentation Data Loggers for mA & Voltage

These Tinytag Plus 2 loggers are designed to monitor standard mA or vDC inputs in the ranges of 0-25mA, 0-2.5 and 0-25vDC. The TGP-4703 cover a voltage range of 0-2.5vDC and the TGP-4704 0-25vDC. The TGP-4804 covers a current range of 0-25mA. The unit has a waterproof case and features high reading resolution and accuracy, a large memory, a fast offload speed and a low battery monitor. These units are supplied with a 1m long input lead with flying leads for easy connection.

Need help finding the right product?

Description

The Tinytag Plus 2 Instrumentation range of data loggers allow for low DC voltage or 4-20mA current inputs. Logger have an internal memory for up to 32,000 readings, low battery monitor, high accuracy and improved reading resolution. The Tinytag Instrumentation loggers replace the existing Tinytag Re-Ed range, and these loggers can be used to record outputs from third party sensors, enabling users to measure a wide range of properties such as solar irradiance, heat flux, pressure, flow rate, etc.

Features

  • Waterproof housing
  • 32,000 reading capacity
  • High Accuracy
  • High Reading Resolution
  • Fast Data Offload
  • 2 user-programmable alarms
  • Low battery monitor
  • User-replaceable battery

Specifications

 Part Number: TGP-4703 TGP-4704 TGP-4804
 Input Range 0-2.5vDC 0-25vDC 0-25mA
 Resolution: 0.1mV 1mV 1µA
 Accuracy: 0.2% of reading ±10mV 0.2% of reading ±20mV 0.2% of reading ±20µA
 Internal Memory: 32,000 Readings
 Start Options: Magnetic Switch, Relative/Actual (up to 45 days)
 Stop Options: When Full, After No. of Readings, Never (wrap around)
 Reading Types: Actual, Minimum, Maximum
 Logging Interval: 1 second to 10 days
 Offload: While stopped or when logging in minute multiples
 Alarms: Two, fully programmable
 Functional Range: -40°C to +85°C
 Dimensions: 80mm (Height) x 59mm (Width) x 34mm (Depth)
 Weight: 110g

Each logger is supplied with a 1m input cable, CAB-3239.

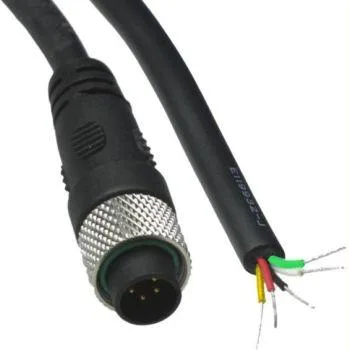

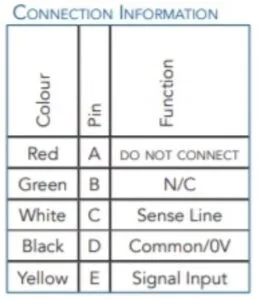

CAB-3239  Tinytag Voltage/Current Input Lead
Cable Length: 1m
Cable Material: PVC
Temp Rating: -10 to +85°C
IP Rating: IP68 (Connector)
Weight: 60g

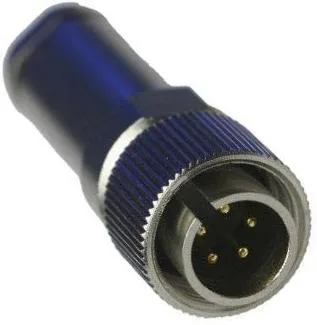

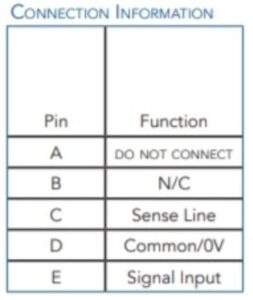

A 5-pin plug, ACS-9703, is available separately.

ACS-9703
5-Pin Plug
Shell Material: Brass and Zinc Alloy (Nickel plated)
Contact Material: Cooper Alloy (Gold plated)
Temp Rating: -40 to +85°C
IP Rating: IP68 (-25 to 85°C)
Weight: 15g



The standard configuration will record the values in voltage or milliamps at each user-defined logging interval. Loggers can be factory configured for use with a third-party sensor, with specific values, for applications such as pressure, wind speed or scaled values. To confirm that this logger can be configured to work with a specific sensor, please contact us or fill in the attached Configuration Form. Without Custom Configuration, the logger will only show the voltage or current at each logging interval.

Product

Ref

Price

Product Description

TGP-4703

£125.00

Tinytag Plus 2 Voltage data logger. Range 0-2.5vDC. Memory for 32,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 2 year. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239

TGP-4704

£125.00

Tinytag Plus 2 Voltage data logger. Range 0-25vDC. Memory for 32,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 2 year. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239

TGP-4804

£125.00

Tinytag Plus 2 Current data logger. Range 0-25mA. Memory for 32,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 2 year. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239

TGP-4703-ED

£175.00

Tinytag Plus 2 Voltage data logger. Range 0-2.5vDC. Memory for 32,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 2 year. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239. Custom Scaling to show readings in required units, ie. Bar, m/s, etc.

TGP-4704-ED

£175.00

Tinytag Plus 2 Voltage data logger. Range 0-25vDC. Memory for 32,000 readings with 2 programmable alarms. Logging rate 1 sec to 10 days with min, max & actual readings, battery life up to 2 year. Splash proof I.P. 65 case. Unit is supplied with the Current/Voltage input cable, CAB-3239. Custom Scaling to show readings in required units, ie. Bar, m/s, etc.
