Tinytag Dry Shipper

The Tinytag Dry Shipper allows the monitoring of products being shipped in cryogenic vessels employing Nitrogen dry vapour, generating low temperatures from evaporating liquid Nitrogen. The disp[ay securely mounts to the flask lid, with the probe extending into the tank via an insulating plug. Large memory capacity of 32,000 readings and 2 programmable, latchable alarms. Logging rate 1 sec to 10 days with min, max & actual readings.

Need help finding the right product?

Downloads

Tinytag Dry Shipper

Description

Cryogenic Temperature Data Logger with Integrated PT1000 Probe

The Tinytag Dry Shipper is a stand-alone, ultra-low temperature data logger, integrating a PT1000 sensor. Specifically designed for cryogenic vessels employing Nitrogen dry vapour generated from evaporating liquid Nitrogen. The Tinytag Dry Shipper accurately monitors temperatures down to -196°C. It is intended for use in dry vapour shipping containers, the preferred method for transporting temperature-sensitive biological materials (eg. gametes, embryos, stem cells, etc) as it avoids direct liquid Nitrogen contact, ensuring sample integrity and thermal stability.

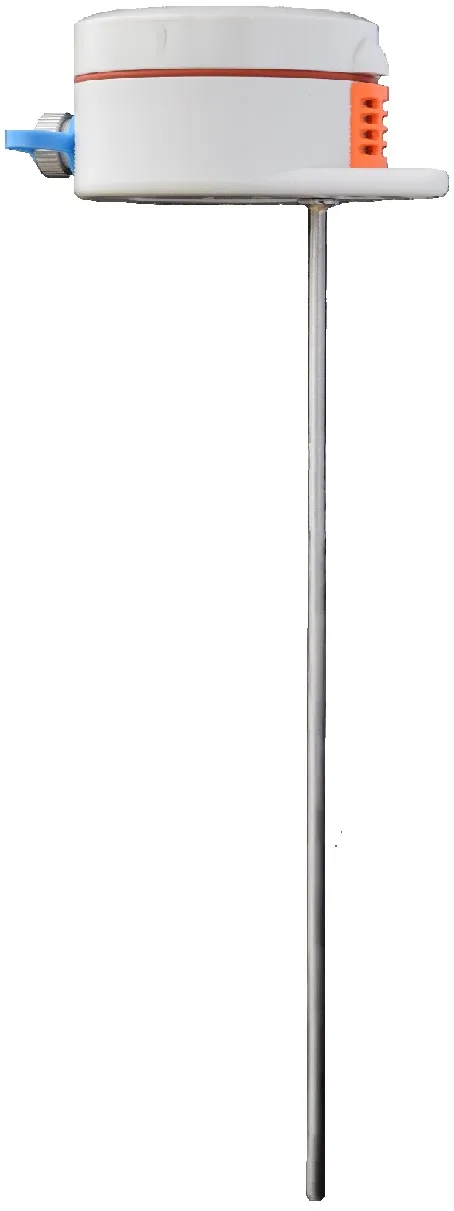

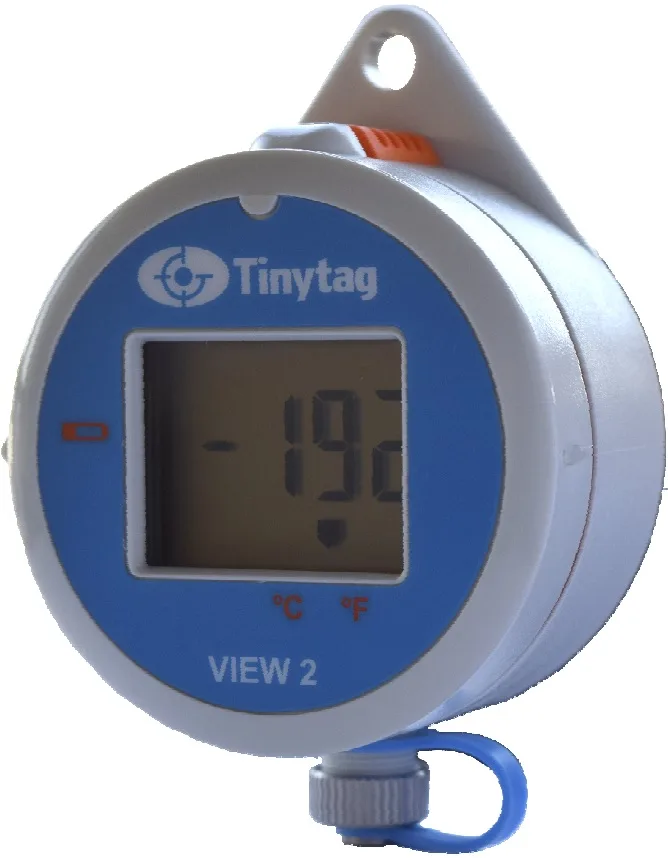

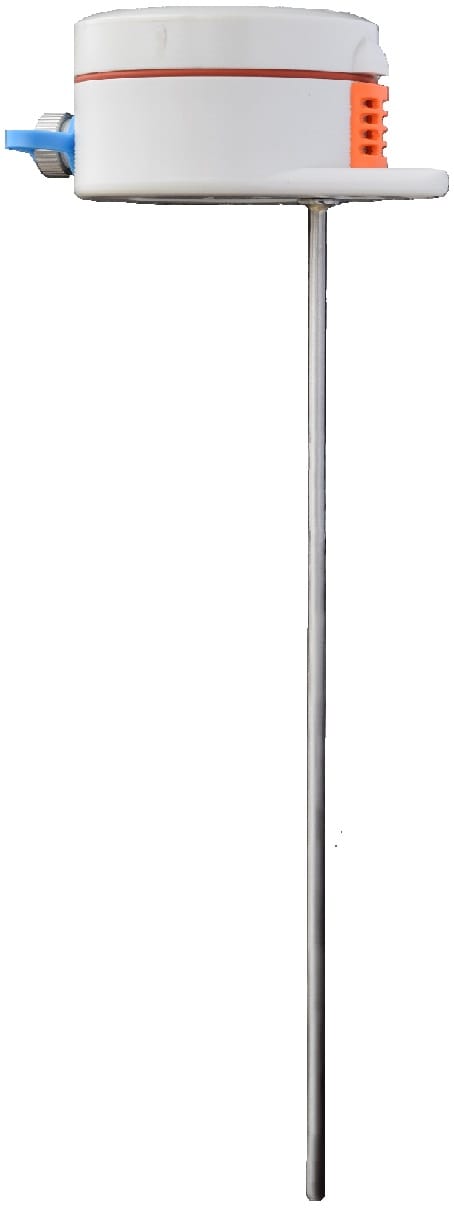

The IP65 rated enclosure of the Tinytag Dry Shipper allows for secure mounting to the flask lid, with the probe extending into the tank via an insulating plug. The integrated digital readout provides immediate temperature information, while the programmable alarms offer crucial visual warnings, if temperature parameters fall outside the user-defined range during transportation.

Features

  • Ultra-low temperature data logger
  • -196°C Nitrogen dry vapour applications
  • 252mm probe length
  • Digital display
  • Visual alarm warnings during transit

Specification

Total Reading Capacity 32,000 readings
Memory type Non Volatile
Display 4 digits + indicators
Display Modes °C or °F
Display Refresh Rate Every 2 seconds
Delayed Start Relative / Absolute (up to 45 days)
Stop Options  When full; After n Readings; or Never (overwrite oldest data)
Reading Types Actual, Min, Max
Logging Interval 1 min to 10 days
Offload While stopped or when logging in minutes mode
Alarms 2 fully programmable; latchable
Reading Range -200 to +100°C (-328 to 212°F)
Sensor Type PT1000 (Class B)
Logger Resolution 0.01°C or better
Display Resolution 0.1°C or 0.1°F (1°C/°F below -99.9°C/°F)
Temperature Stability 0.005°C/°C Change from 25°C



Product

Ref

Price

Product Description

CR-0100

£360.00

The Tinytag Dry Shipper allows the monitoring of products being shipped in cryogenic vessels employing Nitrogen dry vapour, generating low temperatures from evaporating liquid Nitrogen. The disp[ay securely mounts to the flask lid, with the probe extending into the tank via an insulating plug. Large memory capacity of 32,000 readings and 2 programmable, latchable alarms. Logging rate 1 sec to 10 days with min, max & actual readings.

ACS-6000

£10.00

Trigger Start Magnet for various Tinytag data loggers. The magnet is ideal for delayed triggering of Tinytag loggers that have been set up for a trigger start. The magnet is merely passed over the correct location on the logger and the lights will start to flash showing that logging procedure has been started. The position of the unit’s trigger start switch is indicated by the • • • label on the back of the logger.

SWPK-7-USB

£65.00

Tinytag Explorer Software and download cable starter pack. The SWPK-7-USB starter pack contains a USB download cable, Software CD, with device drivers and a quick start guide. This pack is suitable for use with the all Tinytag Ultra, Plus and View data loggers. The Tinytag Explorer software comes with a site licence allowing installation on multiple PCs at the same location, additional software should be purchased when used at a different site location.

CAB-0725

£5.00

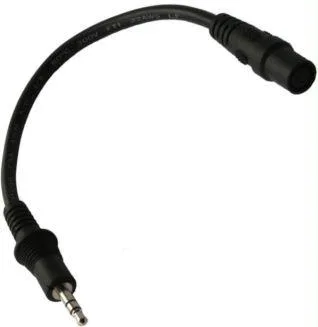

The CAB-0725 is an CAB-0007 to CAB-0005 Converter. Plugs into a CAB-0007 or CAB-0007-USB cable to allow a connection to a TG-0050 Tinytag Transit or an Tinytag Talk 2 data loggers. Cable Length 0.2m.

SER-9500

£6.50

The SER-9500 service kit is suitable for the Tinytag Ultra 2, Talk 2, TinyTalk, View 2, Plus 2, Plus and IS data loggers. This kit contains a replacement battery, gasket, lanyard, cable tie, desiccant pack and a service instruction sheet.
