Description

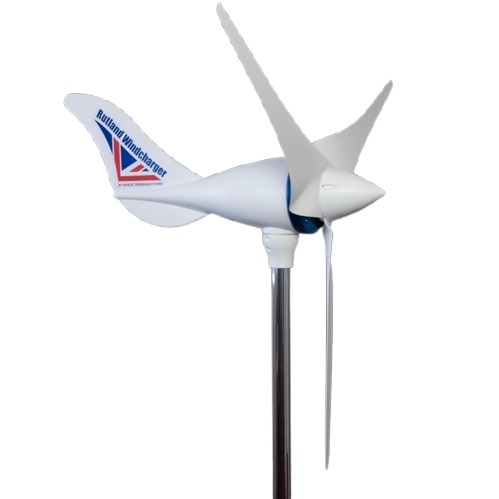

Made with high grade materials to create a robust, high quality and long lasting turbine the Rutland 1200 Terrain Wind Charger set the standards for micro wind turbines in both performance and reliability. Distinctive blue hard anodised marine grade Aluminium, modern, lightweight UV stable injection mouldings with stainless steel components and fasteners that perform in the temperature extremes experienced in locations from the Arctic to the Equator.

Features

• Ideal for remote off grid site and professional applications
• Modern durable materials for excellent reliability and product longevity
• Enables installation of essential remote monitoring equipment
• Generates 290W @ 11m/s
• Low friction 3 phase rare earth magnets, brushless generator design
• Tri-namic blades for low start up speed, high speed performance and near silent running.
• Supplied with state of the art MPPT controller.

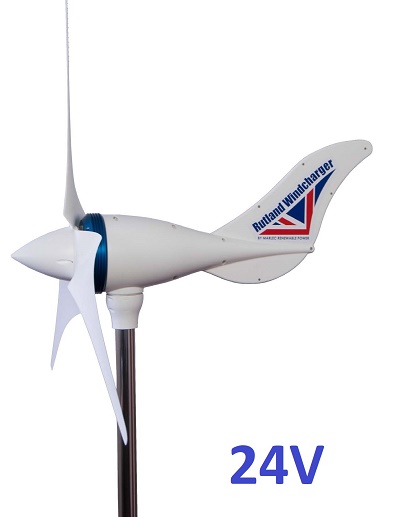

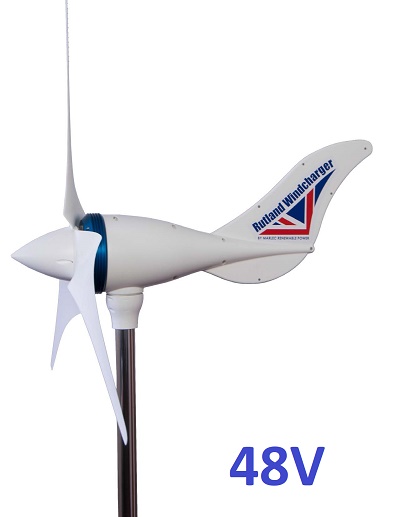

• Available in 12V, 24V and 48V versions to suit most remote monitoring applications.

Tri-namic Blade Profile

This is our unique blade design that brings together three key performance features in a single blade profile.

1. The Rutland 1200 Terrain model maintains our reputation for turbines with a very low wind speed start up – this means that turbines will start to capture energy from the lowest and most commonly experienced wind flows so you can rely on your Rutland for the energy you need.
2. The finely designed blade profile remains almost silent across all wind speeds so you can rest assured that you and your neighbours will not be disturbed by aerodynamic noise. We have benchmarked this important feature against existing competitors and the Rutland 1200 is the quietest in the market.
3. It’s powerful – in high winds the Rutland 1200 Terrain blades achieves high rotation levels thus delivering more power than any other turbine of its diameter range at 3, 6, 12 & 15m/s (6, 12, 23 & 29Knots)

Powerful Turbine Generator

The vast experience of Marlec shines through in our new rare-earth magnet generator.  Rare-earth magnets are the strongest type of permanent magnets.  They produce significantly stronger magnetic fields than other types and require careful handling but pay back swiftly in the power they are able to induce.

Low friction is critical to low wind speed performance and we have taken these super strength magnets into our new design of brushless generator yet maintained low wind speed start-up.  The Rutland 1200 Terrain’s supporting structure, called the nacelle, is constructed of high quality marine grade materials such as a stainless steel shaft.  The sleek outer casing is made from lightweight but robust mouldings to a high UV resistance specification which contrasts the distinctive blue anodised generator casing.

State of the Art Controller

Maximum Power Point Tracking technology is used on both the wind turbine and solar panel inputs to electronically boost the power outputs, charging your batteries faster.  The controller intelligently controls the inputs and battery voltage to give efficient charging and fine battery voltage regulation and maintenance.

Input capacity of the unit is high, accepting both the Rutland 1200T with up to 20A of solar panels, that’s 250W @ 12V and 500W @ 24V.   Outputs to 2 battery banks make this an ideal solution for keeping batteries charged in isolated monitoring stations.

Speed governing of the turbine occurs electronically from the controller, this becomes active at 15m/s or 29Kn or 35mph.  This intermittently alters the speed of the turbine to reduce aerodynamic and electrical stresses on the system. A remote digital display available now.  The controller has built in LED indicators and shutdown switches for the charge inputs.
