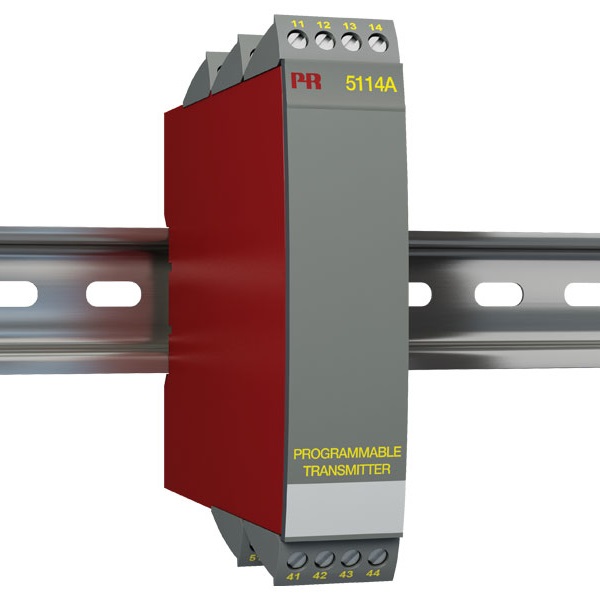

PR 5114 Programmable Transmitter

PR 5114 Programmable Transmitter

The PR 5114 is a programmable transmitter suitable for measuring DC voltage inputs up to 250vDC, current up to 100mA, PT100, Ni100 or resistance inputs. An output signal of 0-5V, 0-10V or 4-20mA is proportional and linear to the value of the input. The inputs range are fully programmable for any range up to 250VDC. Single and dual channel units are available.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

5114A Programmable Transmitter

Product Discontinuation

Notice - ATEX Certification Expired

Description

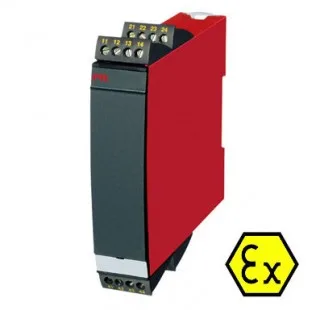

Please Note: The PR 5114B Version has been discontinued since 1 October 2025.

ATEX Certificate for the PR 5114B has expired and will not be renewed. Suitable alternative are available within the 9000 Series, Contact us directly for the best option for your application.

Application

  • Electronic temperature measurement with resistance sensor or thermocouple sensor.
  • Amplifier for temperature sensors, potentiometers, and current / voltage signals.
  • Power supply for 2-wire transmitters
  • Amplification of mV signals.
  • Conversion of linear resistance variation.
  • Galvanic isolation of analogue signals.
  • Measurement of floating signals.
  • Linearisation of non-linear Ohm, mV, mA, or voltage signals.
  • Separation of circuits in PELV/SELV installations.

Features

  • Jumper selectable inputs for current/voltage or temperature.
  • Programmable current (0…100 mA) and voltage (0…250 VDC) inputs.
  • Programmable PT100, Thermocouple, mV and linear resistance inputs
  • 3-port 3.75 kVAC galvanic isolation
  • Configurable current and voltage output
  • Universal voltage supply
  • Single and Dual channel versions

Options

Type Version Input Channels
5114 A: Standard – : RTD/TC/R/mA/V/mV A: Single
B: Double

Product

Ref

Price

Product Description

PR 5114A Programmable Transmitter

5114A-A

£326.00

Single channel 5114A programmable transmitter. Single channel unit for RTD, TC, mV, linear resistance, mA and V inputs, producing a (0)4-20mA, 0-10vDC output. 3-port 3.75 kVAC galvanic isolation. Can be mounted vertically or horizontally on a DIN rail. Power Supply 21.6 to 253vAC or 19.2 to 300vDC.
MORE INFO
Add to basket
PR 5114A Programmable Transmitter

5114A-B

£569.72

Dual channel 5114A programmable transmitter. Dual channel unit for RTD, TC, mV, linear resistance, mA and V inputs, producing a (0)4-20mA, 0-10vDC output. 3-port 3.75 kVAC galvanic isolation. Can be mounted vertically or horizontally on a DIN rail. Power Supply 21.6 to 253vAC or 19.2 to 300vDC.
MORE INFO
Add to basket

PR-CONFIG

£19.00

Complete programming and configuration of programmable PR units to client specifications prior to shipping.
MORE INFO
Add to basket
