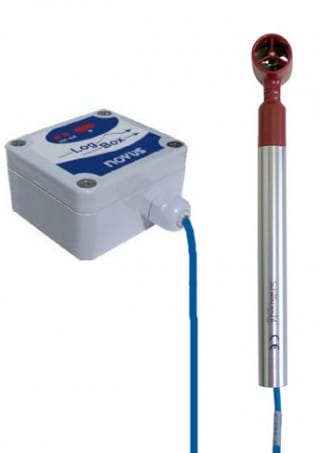

This unit utilises the MiniWater6 Mini probe and the LogBox DA data logger to provide a versatile and accurate portable measurement and logging device for the measurement of water flows in open channels, tanks and chambers. The measurement range up to 10m/s. Optional sensors for temperature, distance, level and rainfall.
The MiniWater 6 probes are designed with a snaphead vane anemometer and a probe handle. The probe handle contains all the electronic components and comes with 2m cable with flying leads. All plastic snapheads are designed to be replaceable with an Aluminium vane for use in river and water courses to measure the flow rates. The MiniWater vane anemometers are available in two different sizes: Micro and Mini, with two different flow ranges available for each: 0-5ms; and 0-10m/s.
| Air Probe | MiniWater 6 Micro | MiniWater 6 Mini |
| Range 5m/s | 0.04 – 5 m/s | 0.02 – 5 m/s |
| Range 10m/s | 0.05 – 10 m/s | 0.03 – 10 m/s |
| Accuracy | ±2.0% full scale ±3.5% reading |
±2.0% full scale
±3.0% reading
|
| Operating Temp | 0 to +70°C | |
| Power Supply | 9 – 26vDC | |
| Output Signal | 0 – 2V | |
| Head Dimensions | ø 11 x 15 mm | ø 22 x 28 mm |
| Access Opening | 16mm | 35mm |
| Probe Length | 165mm | 175mm |
| Cable Length | 2m Cable | |
The PTM/N depth sensor is designed to take pressure readings for up to 10m water depth. The unit can be programmed down to as little as 0-3m. The sensor comes with 12m cable as standard. Sensors are available with large ranges, longer cables suitable for different media.
| Depth Probe | Standard Probe |
Optional |
| Range |
0-3m up to 0-10m | 1m – 250 m |
| Output Signal |
4-20mA | |
| Accuracy | ±0.25% full scale |
±0.25% full scale
±0.1% full scale
|
| Operating Temp | -5 to +85°C | |
| Power Supply | 9 – 33vDC | |
| Diameter | 24mm | |
| Cable Length | 12m PUR Cable | |
The TR-525MET was designed to meet the need for a rugged and reliable rain gauge tipping bucket with high accuracy and low cost. Resolution on this unit is 0.2mm per pulse and we can provide these units with an internal logger to record rainfall totals, or with any desired cable length to connect to your own monitoring equipment.
Maximum rainfall rate: 12.7 cm (5 in.) per hour
Calibration accuracy: ±1.0% (up to 1 in./hour for the RG3 or 20 mm/hour for the RG3-M)
Resolution: 0.2 mm per pulse.
Calibration: Requires annual calibration: can be field calibrated or returned to the factory for re-calibration
Operating temperature range: 0° to +50°C (+32° to +122°F)
Storage temperature range: -20° to +70°C (-4° to +158°F)
Environmental rating: Weatherproof
Housing: 15.24cm (6-in.) aluminum bucket
Tipping bucket mechanism: Stainless steel shaft with brass bearings
Dimensions: 25.72 cm height x 15.24 cm diameter (10.125 x 6 in.); 15.39 cm (6.06 in.) receiving orifice
Weight: 1.2 Kg (2.5 lbs)
MINIWATER6MINI-LOGBOX
£1,082.47
95.0296
£799.93
95.0311
£860.95
95.0295
£759.89
95.0312
£830.44
