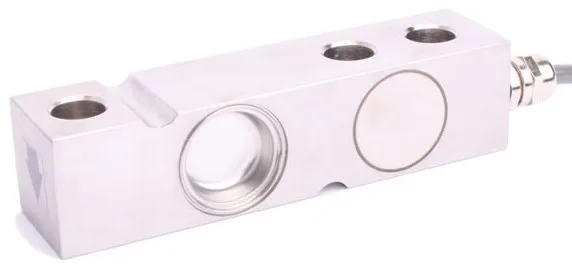

OSBST Single-Ended Shear Beam Load Cell

The OSBST single-ended shear beam load cell are suitable for medium capacity weighing applications such as hoppers and vessels where a high accuracy measurement system is required. The waterproof IP68 body and stainless steel construction make it ideal for conveyor weighing applications where the loadcell may need to be washed down for hygienic purposes, eg. food, pharmaceutical or brewing industry.. Ranges 500kg to 5000kg. The load cells provide a 2mV/V output but can be supplied with suitable inline amplifiers to provide a calibrated 4-20mA output. ATEX versions are available.

Need help finding the right product?

Downloads

OSBST Load Cell

Description

Features

  • Capacities 500kg to 5000kg.
  • Sealed to IP68
  • Robust Stainless Steel Construction
  • Optional Vessel mount for static applications.
  • Options Shock/Anti-Vibration mount for mixer, feed hopper or conveyor applications where vibration or transient loads may occur.
  • Optional amplifier output & integral connector
  • 3-Year Warranty

Options

  • Different Cable Lengths.
  • Full range of mounting options available including
    • Vessel/Tank mounting assembly
    • Shock/Anti-Vibration mounting assembly
    • Platform mounting assembly
    • Load Button
    • Base mounting spacer
    • Spherical rod-end bearings
  • 500VAC Certification
  • BASEEFA Certification
  • Low cost versions also available

Applications

  • Low Profile Platforms
  • Hoppers and Vessels
  • Weighing and Packing Machines
  • Conversion of Mechanical Scales
  • Food Industry
  • Pharmaceutical Applications
  • Brewing Applications

Specifications

Standard Capacities (Kgf): 0-500, 0-1000, 0-2000, 0-5000
Sensitivity: 2.0mv/V ±0.1%
Zero Balance/Offset: <±2.0% Rated Output
Accuracy: <±0.02% Rated Output
Input Resistance: 380 Ohms Nominal
Output Resistance: 350 Ohms Nominal
Insulation Resistance: >2000 @ 50vDC
Excitation Voltage: 10vDC Recommended (2-15vDC Acceptable)
Operating Temperature: -20 to +70°C
Compensated Temperature: -10 to +40°C
Storage Temperature: -20 to +70°C
Safe Overload: 150% of Rated Capacity
Ultimate Overload: 300% of Rated Capacity
IP Rating: Standard IP68
Fatigue Life: 108 Cycles Typical (109 cycles on fatigue-rated version)
Cable: 5m, 6-Core Screened, PUR Sheath ¶Ø6mm nominal
Construction: Stainless Steel

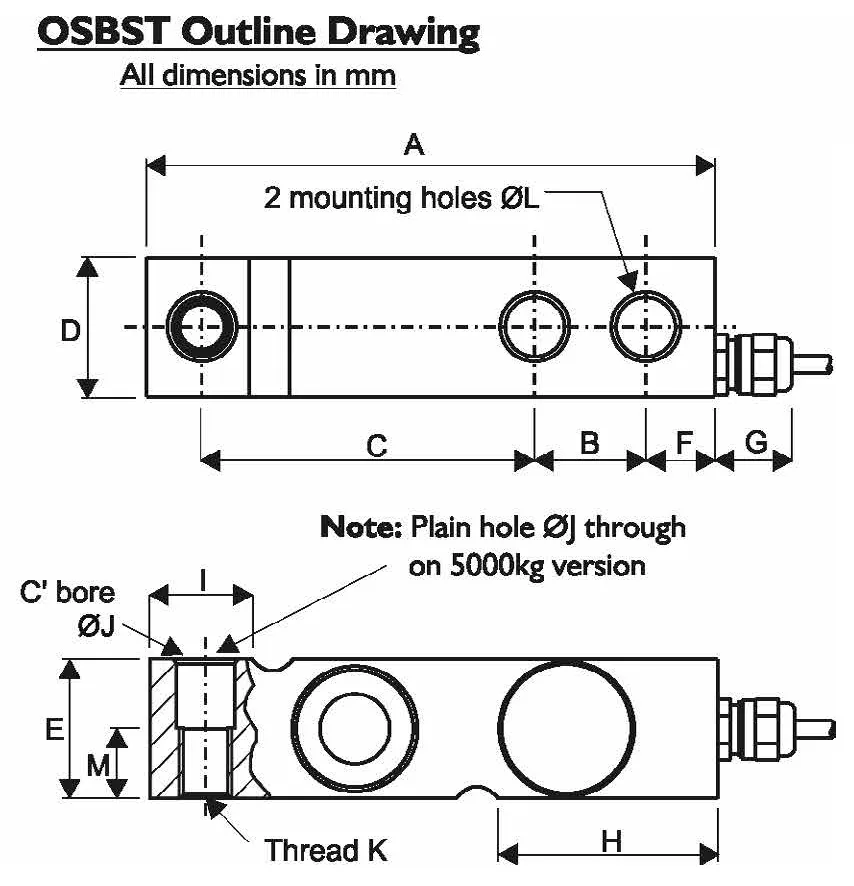

Dimensions

Model Capaciity (Kg) A B C D E F G H I ØJ K ØL M Weight
OSBST 0-500, 0-1000, 0-2000 130 25.4 76.2 32 32 15.8 18 50.5 23.5 13.5 M12 x 1.75 13.5 16 0.9Kg
OSBST 0-5000 171.5 38.1 95.25 36.5 48 19 18 70 37 20.5 M20 x 2.5 20.5 1.9Kg
