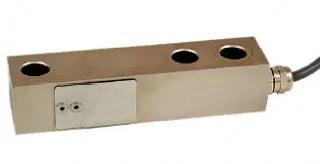

OSBKT Load Cells

Description

Features

  • Capacities 250kg to 2000kg.
  • Sealed to IP67
  • Robust Nickel Plated Alloy Steel Construction
  • Optional Vessel mount for static applications.
  • Options Shock/Anti-Vibration mount for mixer, feed hopper or conveyor applications where vibration or transient loads may occur.
  • Optional amplifier output & integral connector
  • 3-Year Warranty

Options

  • Different Cable Lengths.
  • Full range of mounting options available including
    • Vessel/Tank mounting assembly
    • Shock/Anti-Vibration mounting assembly
    • Platform mounting assembly
    • Load Button
    • Base mounting spacer
    • Spherical rod-end bearings
  • 500VAC Certification
  • BASEEFA Certification
  • Low cost versions also available

Applications

  • Low Profile Platforms
  • Hoppers and Vessels
  • Weighing and Packing Machines
  • Conversion of Mechanical Scales

Specifications

Standard Capacities (Kgf): 0-250, 0-500, 0-1000, 0-2000
Sensitivity: 2.0mv/V ±0.1%
Zero Balance/Offset: <±2.0% Rated Output
Accuracy: <±0.02% Rated Output
Input Resistance: 380 Ohms Nominal
Output Resistance: 350 Ohms Nominal
Insulation Resistance: >2000 @ 50vDC
Excitation Voltage: 10vDC Recommended (2-15vDC Acceptable)
Operating Temperature: -20 to +70°C
Compensated Temperature: -10 to +40°C
Storage Temperature: -20 to +70°C
Safe Overload: 150% of Rated Capacity
Ultimate Overload: 300% of Rated Capacity
IP Rating: Standard IP67
Fatigue Life: 108 Cycles Typical (109 cycles on fatigue-rated version)
Cable: 3m, 6-Core Screened, PUR Sheath ¶Ø6mm nominal
Construction: Nickel Plated Alloy Steel

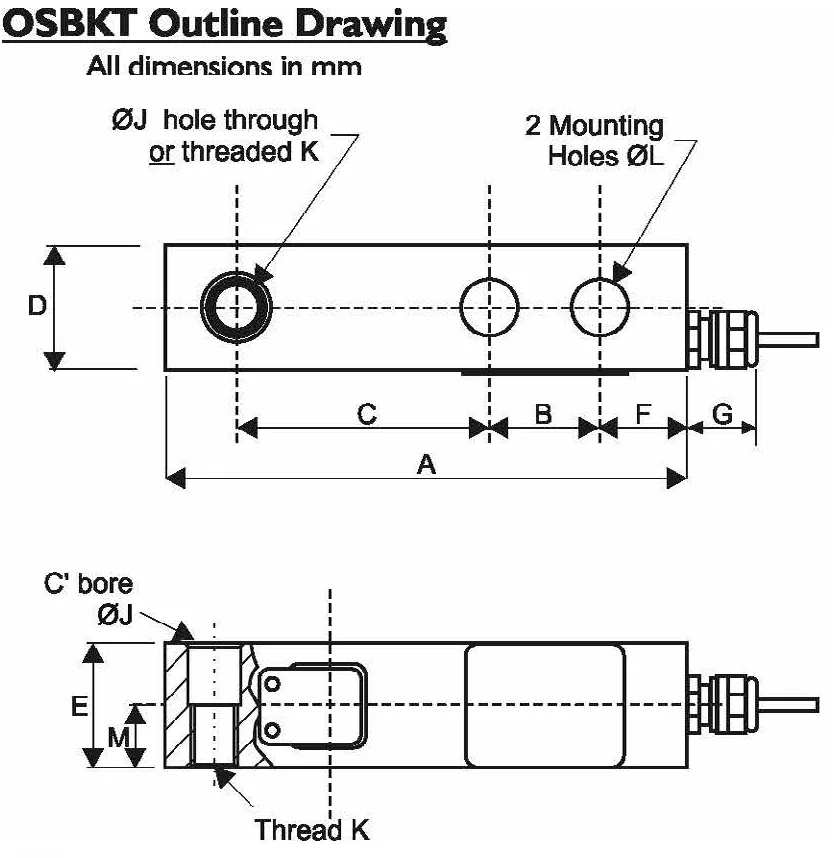

Dimensions



Model Capaciity (Kg) A B C D E F G ØJ K ØL M Weight
OSBKT 0-250, 0-500, 0-1000 130 25.4 76.2 30.5 30.5 16 19 13.5 M12 x 1.75 13.5 16 0.9Kg
OSBKT 0-2000 130 25.4 76.2 30.5 36 16 19 13.5 M12 x 1.75 13.5 16 1.1Kg
