N20K

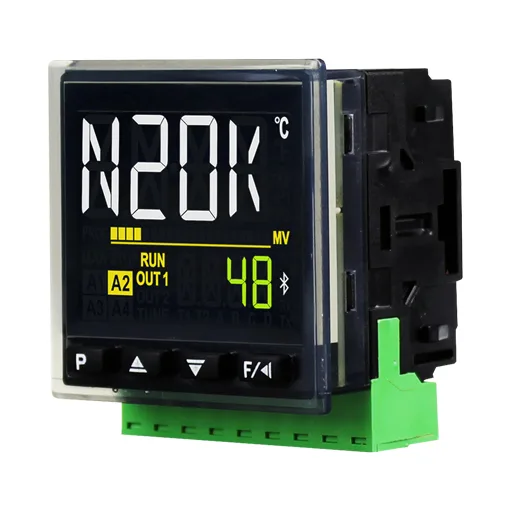

N20K48 Process Controller - Image 2

N20K48 Process Controller

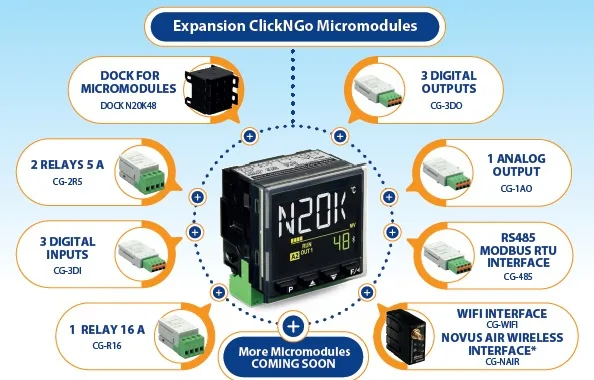

The N20K48 is a compact controller that can be expanded by a wide range of micromodules to fit any application. The N20K48 micromodules use ClickNGo technology to allow the module to fit the display and be easily configured using the QuickTune Mobile app

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

N20K48 Process Controller

Description

The N20K48 Controller is a compact, powerful core controller with a various micromicromodules that enable it to be used in a wide range of different application.



Specifications

Display 11-segment alphanumeric LCD type
Input Type



 Thermocouple J, K, T, E, S, N, R, B, Pt100, 0-50 mV,
0-5 V, 0-10 V, 0-20 mA and 4-20 mA
PID Features PWM, Auto tune
Control Action 1 Loop (Heat or Cool)
Output Control 1 Pulse and 1 Relay 3A
Ramp & Soak 20 Programs, 9 Segments
Sampling Period 18 ms
Power Consumption 10 VA
Special Functions



 Soft-Start, PID Loop Break, Ramp and Soak event,
4 Alarms (9 alarm types) and Timer Function
Configuration



 QuickTune software for Windows, via USB or Bluetooth
QuickTune Mobile app for Android and iOS via Bluetooth
Certifications CE, UKCA, Anatel and FCC
Power Supply 100-240 Vac/dc or 12-24 Vdc (Optional)
Operate Conditions



 Temperature: -20 to 60 °C (-4 to 140 °F)
Humidity: 80 % @ 30 °C (86 °F)
Front Panel IP65, Polycarbonate (PC) UL94 V-2
Enclosure 48×48 (DIN 1/16), material in ABS+PC UL94 V-0



Product

Ref

Price

Product Description

820K481010 N20K48 Modular Controller

820K481010

£63.62

N20K48 Modular Controller Mains Powered Display shows process variable values with 11 segment alphanumeric digits. Lower Parameter Display show the Set Point Values. A Graphical Bar shows the progress of Ramps and Soaks. Various Flags for Alarm Conditions, Operations, Timers, Comms, etc. Four button keyboard on front panel. Each display has 1 Universal analog input channel, 1 pulse output channel, 1 Relay output channel and USB and Bluetooth Low Energy (BLE) Interfaces. Connecting a Dock allows for up to 8 ClickNGo modules. Power Supply: 100~240vAC. Dimensions 56.7 x 50.8 x 38.6mm.
MORE INFO
Add to basket
820K481024 N20K48-24V Modular Controller

820K481024

£65.51

N20K48-24V Modular Controller. Mains Display shows process variable values with 11 segment alphanumeric digits. Lower Parameter Display show the Set Point Values. A Graphical Bar shows the progress of Ramps and Soaks. Various Flags for Alarm Conditions, Operations, Timers, Comms, etc. Four button keyboard on front panel. Each display has 1 Universal analog input channel, 1 pulse output channel, 1 Relay output channel and USB and Bluetooth Low Energy (BLE) Interfaces. Connecting a Dock allows for up to 8 ClickNGo modules. Power Supply: 24vDC. Dimensions 56.7 x 50.8 x 38.6mm.
MORE INFO
Add to basket
820KCG00DK - Dock for N20K48-24V Modular Controller

820KCG00DK

£5.04

N20K48 Dock Accessory. Dock attaches to the back of the N20K48 Modular Controller and can hold up to 8 ‘Size 1’ ClickNGo Modules, 4 ‘Size 2’ ClickNGo Modules and 2 ‘Size 4’ ClickNGo Modules.
MORE INFO
Add to basket
820KCG11AO - CG-1AO ClickNGo Module

820KCG11AO

£20.80

CG-1AO ClickNGo Module, 1 Isolated Analog Output Module. Size 1 Module with a 0 to 20mA or 4-20mA Output. Operating Temp -20 to +60°C, 80%RH. Dimensions: 53.8 x 10.6 x 22.2mm, Weight: 12g. IP50 when installed in controller.
MORE INFO
Add to basket
820KCG12R5 - CG-2R5 ClickNGo Module

820KCG12R5

£15.12

CG-2R5 ClickNGo Module, 2 x 5A Relay Output Module. Size 2 Module with two independent relay output, SPST-NO. Operating Temp -20 to +60°C, 80%RH. Dimensions: 46.5 x 21.1 x 22.2mm, Weight: 10g. IP50 when installed in controller.
MORE INFO
Add to basket
