Description

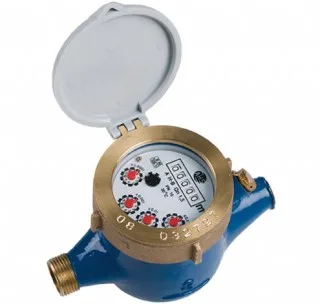

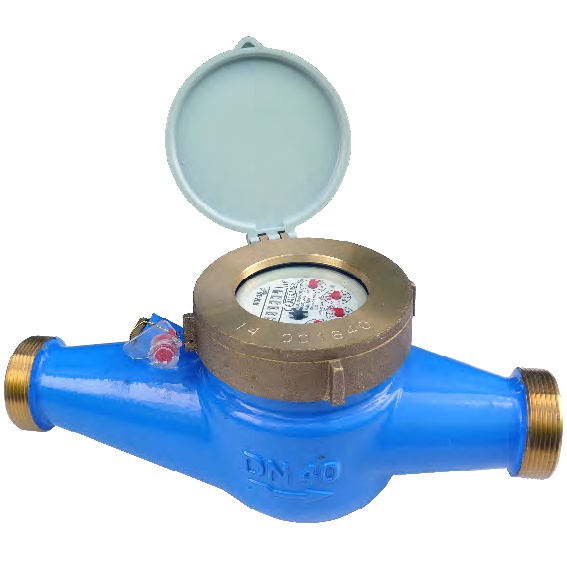

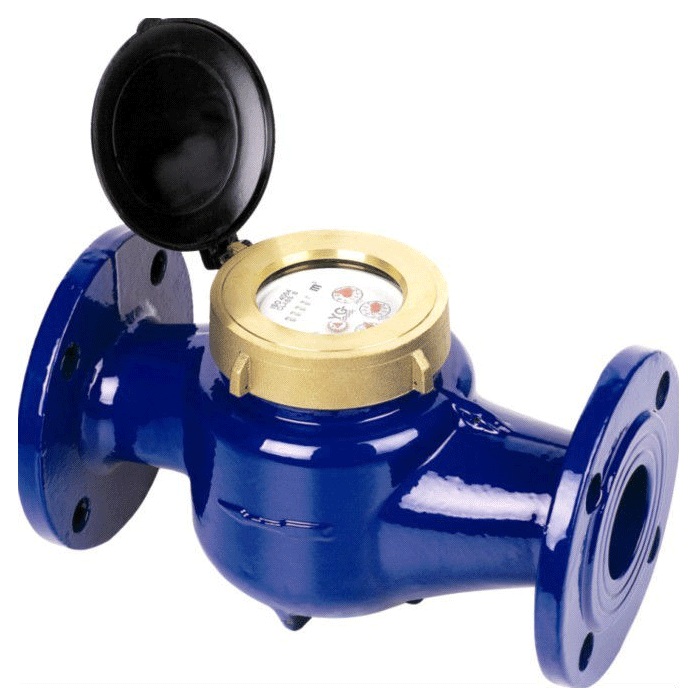

Multi-jet water meters are very accurate in small sizes and are commonly used between ½” to 2″ sizes for domestic, residential and small light industrial users. The water flow meters have several flow ports surrounding an internal chamber to create multiple jets of water against an impeller whose rotational speed depends on the velocity of the water flow. Multi-jets are very accurate at low flow rates.

Multi-jet meters include an internal strainer element that prevent the jet ports from getting clogged. These Multi-jet flow meters have an epoxy coated bronze alloy body, with internal measuring components made from modern thermoplastic materials and stainless steel, all tested for compatibility with potable water requirements. These WRAS approved multi-jet flow meters are an ideal flow meter for BMS system integration, sub-tenant metering and facilities monitoring.

Measuring Instruments Directive 2004/22/EC
MID Approved :: Specifications according to OIML R49, EN14154 or ISO4064

Features

• Multi-jet impeller type flow meters
• Suitable for cold water up to 30°C
• WRAS Approved for use with drinking water (75/33/EEC)
• Easily readable mechanical register
• Dry dial types with vacuum sealed totaliser
• Epoxy coated brass body with threaded connectors
• Suitable for soft or hard water applications
• Integral filtration strainers to stop large particles
• Tamper evident wire lock and seal
• Meters are supplied with nuts, tails and washers, if required.

Specifications
