Description

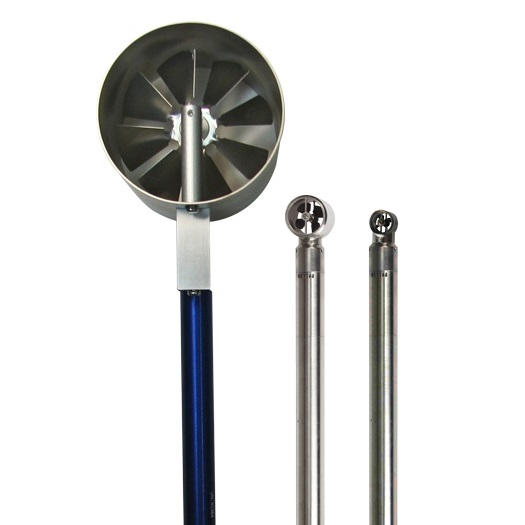

The MiniAir20 robust vane anemometer probes are available with Micro and Mini Steel heads and with Brass Macro heads for aggressive air flow ranges of up to 20m/s and 40m/s. These probes are designed to be automatically recognised by the MC4.0 display, which can set the range automatically to match the connected probe. The probes in this section are the steel blade anemometers with steel heads that are screwed directly to the handle. The Macro probes are made from Brass and Aluminium. These probe heads are not intercchangeable.
Features
- Fits all MC 4.0 displays with Lemo connector.
- Low Starting Velocities, depending on snaphead size.
- MC 4.0 display can automatically recognised connected probe.
- Comes with 2m cable.
- Handle can be extended with 180 or 300mm extension pieces.
Specifications
| Snaphead Size | Micro | Mini | Macro |
| Range 20m/s | 0.6 – 20 m/s | 0.4 – 20 m/s | 0.2 – 20 m/s |
| Range 40m/s | 0.7 – 40 m/s | 0.5 – 40 m/s | 0.3 – 40 m/s |
| Operating Temperature | -10 to +80°C | ||
| Snaphead Dimensions | ø11 x 15mm | ø22 x 28mm | ø85 x 80mm |
| Shaft Length | 165mm | 175mm | 235mm |
| Accuracy | 1.0% FS and 1.5% of reading | ||
| Shaft Diameter | 15mm | ||
| Cable Length from Electronics | 2m Cable (1.8m visible) | ||
