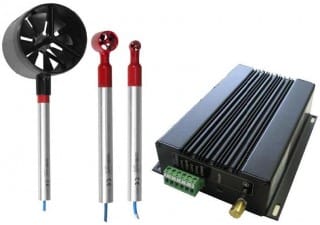

These MiniAir vane anemometers come with Ex certification and provide linear voltage or current outputs relative to the flow velocity ranges of up to 20m/s or 40m/s. Each unit comes with external electronics and EX barrier, with a standard 20m cable between the probe and electronics. The electronics must be located in a safe area with probes in the hazardous zone. The units are simple to install or use as part of a fixed system or in conjunction with data loggers, displays or portable indicators located in the safe area.
Specifications
MiniAir 6 anemometers with voltage output.
| Vane Sensor | MiniAir6 Micro | MiniAir6 Mini | MiniAir6 Macro |
| Measuring Range |
0.5 – 20 m/s
0.7 – 40 m/s
|
0.3 – 20 m/s
0.5 – 40 m/s
|
0.15 – 20 m/s
|
| Accuracy |
±1.0% Full Scale
±3.0% of Reading
|
±0.5% Full Scale
±1.5% of Reading
|
±0.5% Full Scale
±1.5% of Reading
|
| Operating Temperature | -30 to +140°C (Max Range) | ||
| Snap Head Size | 11 x 15 mm | 22 x 28 mm | 85 x 80 mm |
| Cable Length | 20m (Standard) | ||
| Power Supply/Transmitter | Located Outside EX Zone |
||
| Supply Voltage | 9-26 vDC |
||
| Output |
0-2 vDC
|
||
| Operating Temperature | 0 to 80°C |
||
| Dimensions |
170 x 130 x 45mm
|
||
| Connections | Screw Terminals |
||
| IP Protection |
IP40
|
||
MiniAir 64 anemometers with current output.
| Vane Sensor | MiniAir64 Micro | MiniAir64 Mini | MiniAir64 Macro |
| Measuring Range |
0.5 – 20 m/s
0.7 – 40 m/s
|
0.3 – 20 m/s
0.5 – 40 m/s
|
0.15 – 20 m/s
|
| Accuracy |
±1.0% Full Scale
±3.0% of Reading
|
±0.5% Full Scale
±1.5% of Reading
|
±0.5% Full Scale
±1.5% of Reading
|
| Operating Temperature | -30 to +140°C (Max Range) | ||
| Snap Head Size | 11 x 15 mm | 22 x 28 mm | 85 x 80 mm |
| Cable Length | 20m (Standard) | ||
| Power Supply/Transmitter | Located Outside EX Zone |
||
| Supply Voltage | 9-26 vDC |
||
| Output |
4-20 mA
|
||
| Operating Temperature | 0 to 80°C |
||
| Dimensions |
170 x 130 x 45mm
|
||
| Connections | Screw Terminals |
||
| IP Protection |
IP40
|
||
MiniAir6 & 64 external electronics unit should be located in a safe area. Standard cable length from probe to electronics unit is 20m, additional lengths are available on request.

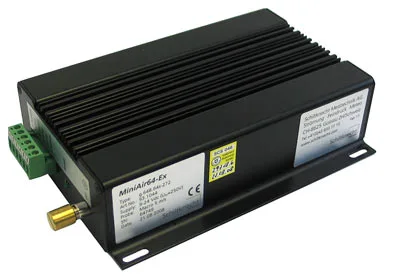

MiniAir 64 EX Electronics unit
MIEX06112
£2,612.42
MIEX06114
£2,707.76
MIEX06122
£2,583.82
MIEX06124
£2,612.42
MIEX06252
£2,793.57
