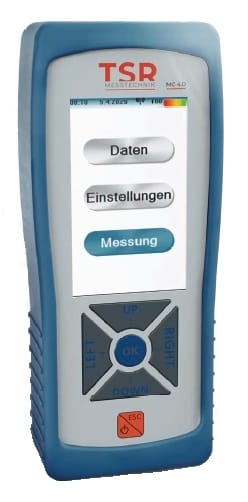

The MC 4.0 is available in 5 different versions, with options for lemo connectors for vane anemometers, touchscreen or the larger 4,000mAh battery. Units feature an internal datalogger and additional measuring channels, There are also additional modules available to allow for humidity, differential pressure to be connected to the unit.
MC 4.0 units with the Lemo connector option can be used with any of the MiniAir 20 vane anemometers to monitor air or surface water flows. With the appropriate modules, ThermoAir, differential pressure or humidity probes can also be connected..
Vane anemometers can be swapped on site and will automatically adjust to the connected sensors. The vane anemometers for air flows come in three different sizes: Micro; Mini; and Macro, with two different flow ranges available for each: 0-20ms; and 0-40m/s. The individual probes include a synthetic plastic construction snap head with a metal turbine that generates a frequency output each time the metal blade passes the probe handle. The frequency of rotation is virtually proportional to the air-flow velocity and largely independent of pressure, temperature, density and humidity. Probes are available with either Aluminium or Steel vane and handles. The Aluminium probes are suitable for non-aggressive gases. Steel probes are available for aggressive environments or higher temperature environments.
MiniWater probes are available in the Micro and Mini sizes with ranges of 5m/s and 10m/s. Short extension rods can be fitted to these probes to allow for measuring flow velocities from the river bank, or bridge over the river
Features
- Modular concept allows a single instrument so adapt to various different applications
- Lemo connector versions can be uses with all MiniAir 20 and MiniWater 20 flow sensors.
- Snap head vanes for easy measuring vane replacement, existing calibration retained.
- 3.2″ display with button operation, plus option for touchscreen display
- Mc 4.0 are supplied with removable rubber case in blue.
- Minimum, Maximum and Average values continuously selectable
- Measurement rate of 2 Secs.
- Internal logger with 1 million reading capacity in 4GB storage
Specifications
MC 4.0 Display Unit
| Display: | 3.2″ TFT Display |
| Unit of Measure: | Flow: m/s, km/h, ft/s. mph Volume: Flow: m³h, l/min, m³/s, cfm Humidity: %RH Temperature: °C, F, °K Pressure: Pa, mBar, mm H20, PSI, VOC, CO2 and PM1: ppm |
| Logger: | Internal 4GB memory, capacity 1 million readings |
| Power Supply: | Lithium Polymer Battery |
| Battery Life: | Approx 15 Hours |
| Case Dimensions: | 168 x 68 x 38mm |
| IP Rating: | IP67 |
| Weight: | Approx 300g |
| Operating Temp: | 0 to 60°C |
| Humidity: | 0-99%RH |
| Protective Case: | Removable Blue Rubber Case. Also available in Orange, Red or Green. |
