Description

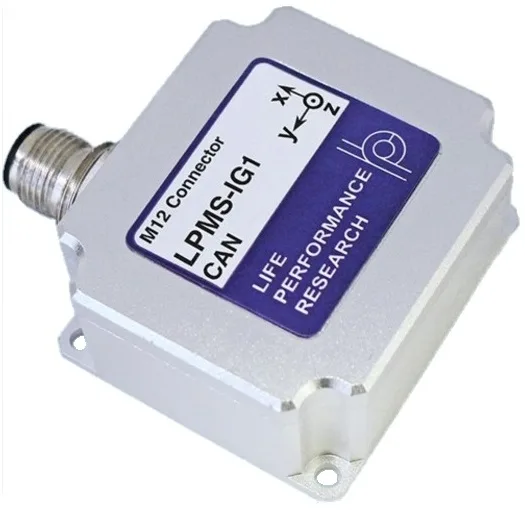

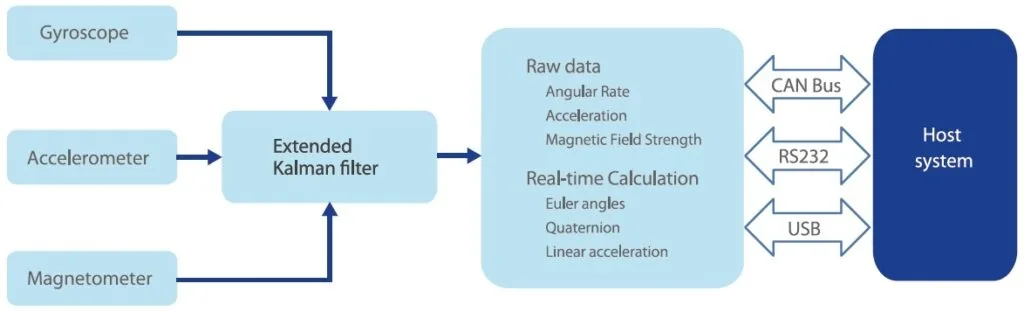

The LPMS-IG1 Motion Sensor is a miniature inertial measurement unit (IMU) and attitude and heading reference system (AHRS) with optional GPS antenna integration. The unit performs accurate, high speed orientation and displacement measurements with three different MEMS sensors. The LPMS-IG1 is equipment with a powerful central processing unit that will fuse raw data from the dual gyroscopes, accelerometer and magnetometer to calculate results in real-time with low drift and high accuracy. The LPMS-IG1P features an integrated sma antenna connection for GPS data integration. All sensor parameters and data transmission options can be controlled by our IG1-Control software. For direct interfacing to Windows / Linux PC or embedded system we provide extensive library support.

Features

• MEMS-Based 9-axis inertial measurement unit (IMU) with onboard sensor fusion.
• Very low-noise gyroscope for low-drift measurements with a bias of 4°/hour
• Dual gyroscope mode with additional high-range gyroscope for meaurements up to 2,000°/s
• Real-time, on device calculation of sensor orientation and linear acceleration
• CANBus (partial CANOpen Support) RS485 or RS232 Communications.
• All options include USB Interface
• LPMS-IG1P includes multi-channel GNSS extension supporting various Satellite Systems
• IP67 rugged Aluminium housing
• Versatile software and library support for data acquisition and sensor configuration.

Applications

• Robotic Manipulator Forward Kinematics Control
• Automotive Dead Reckoning
• Object Orientation Tracking for VR/AR
• Automatic Guided Vehicle (AGV) Navigation
• Prototype Integration

Specifications
