Tracer Lithium Polymer (Li-Po) Battery Packs fitted in an IP65 Pelic case, supplied with mains charger and Neutrix connector with 1 metre lead for powering external devices. Lithium polymer rechargeable battery packs are 75% lighter than sealed lead acid batteries and have a very flat discharge rate. They are also very compact for the amount of capacity provided and a built-in charge indicator shows how much power remains in your battery and whether you need to recharge.
Professional power packs housed within a protective Peli™ Case. These battery packs are the portable solution, easy to carry and install. A robust IP65 Waterproof standard case has been pre wired. The batteries use prismatic cells that create the lightest weight construction. Supplied with fitted fuel gauge and charger.
With an external fuel gauge you can check the power level remaining in the battery. A touch of the button shows how much energy remains and whether you need to recharge.

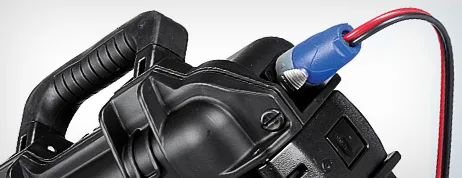

Each Peli™ Case is equipped with two Neutrik connections, each offering up to 20A continuous output at ambient temperature up to 25°C. A combined output of 30A can be achieved if the two connectors are used with a Twin Neutrik Output Lead (TR8155). Please note – if both sockets are being used as output connections the total current must not exceed 30A.
Tracer LiFePO4 battery packs are a totally sealed unit and waterproof to IP65 standard.
For more than 30 years Peli™ has built a reputation for manufacturing the toughest Protector Cases in the world. These high quality, protective cases offer safe transportation for fragile or expensive equipment and are the choice of professionals.

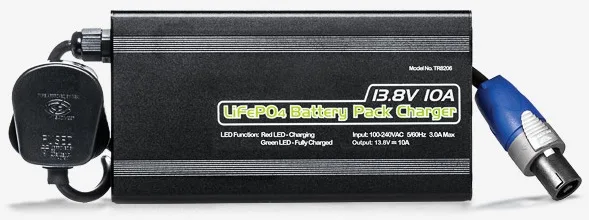

The 10A Charger (TR8206 included) will charge your battery quickly.
For faster charge times, a rapid 20A charger (TR8212) is available. Please purchase separately.
Integrated Electronic ‘Battery Management System’ (BMS) provides the following protection:
LiFePO4 technology gives a very flat discharge curve which means sustained power to the end of the cycle. If you are powering lights they will remain brighter for longer, giving you sustained performance.
All Tracer LiFePO4 batteries conform to standard UN 38.3 which is the ONLY relevant safety standard for LiFePO4batteries. Our battery packs have been through a rigorous testing procedure by UN certified inspectors. You should NEVER handle a non-certified LiFePO4 battery pack.
| Model | Weight | Dimensions | Charge Time | Max Discharge Current | ||
| kg | mm | 12V 10Ah (TR8206) | 12V 20Ah (TR8212) | Continuous | Peak (for 10mS) | |
| 12V 170Ah | 22.0 | 462 x 340 x 170 | 22-30hrs | 13-18hrs | 30A | 60A |
| 12V 100Ah | 13.2 | 411 x 322 x 168 | 14-18hrs | 9-14hrs | 30A | 60A |
| 12V 80Ah | 10.7 | 361 x 289 x 165 | 12-15hrs | 6-9hrs | *10A | *30A |
| 12V 40Ah | 6.0 | 300 x 249 x 119 | 5-7hrs | 3-5hrs | 30A | 60A |
| Model | Weight | Dimensions | Charge Time | Max Discharge Current | ||
| kg | mm | 24V 2A (TR8209) | 24V 5A (TR8208) | Continuous | Peak (for 10mS) | |
| 24V 20Ah | 6.0 | 300 x 249 x 119 | 10-12hrs | 5-7hrs | 30A | 60A |
*Upon request the BMS can be changed to 30A continuous 60A peak.

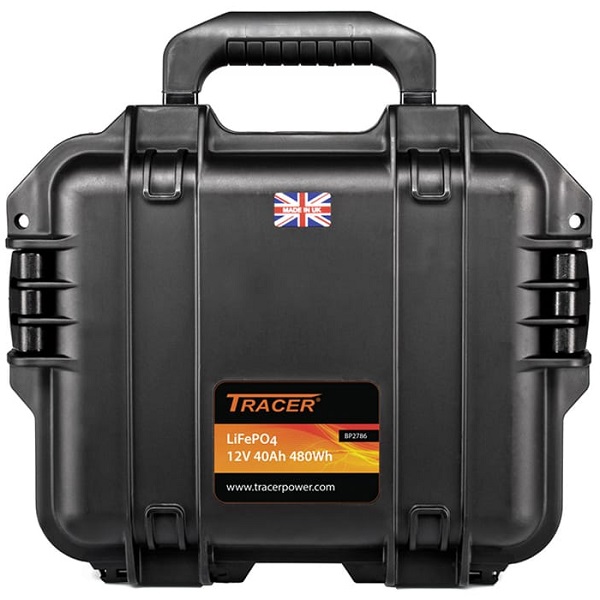

BATT-12V-40AH-PELI
£1,221.53

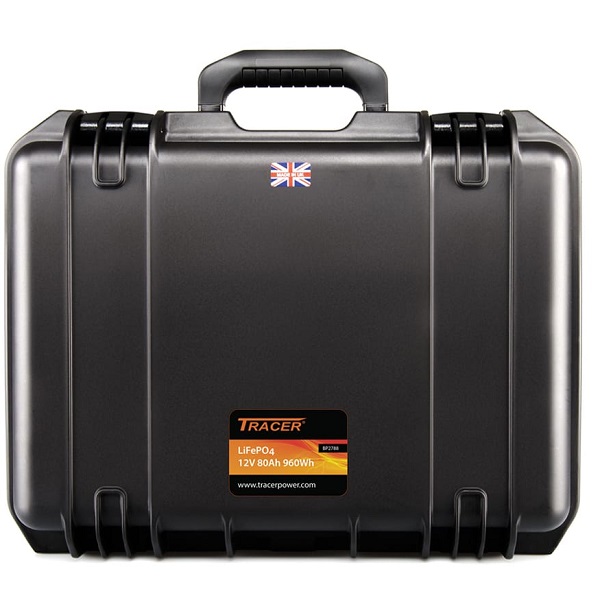

BATT-12V-80AH-PELI
£1,887.82

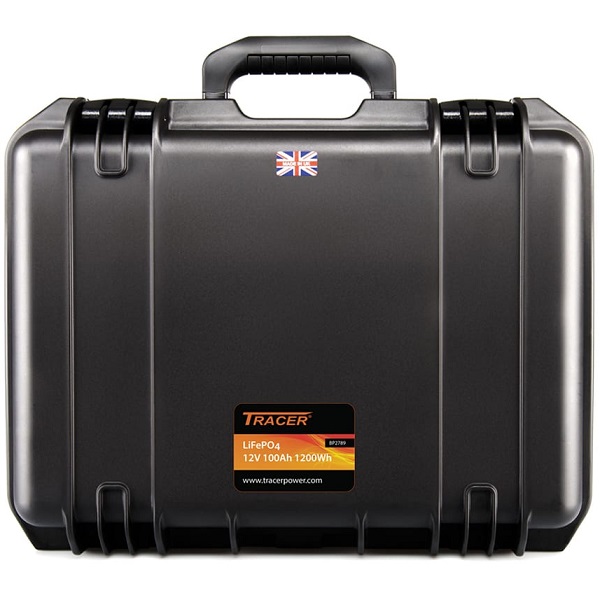

BATT-12V-100AH-PELI
£2,109.91

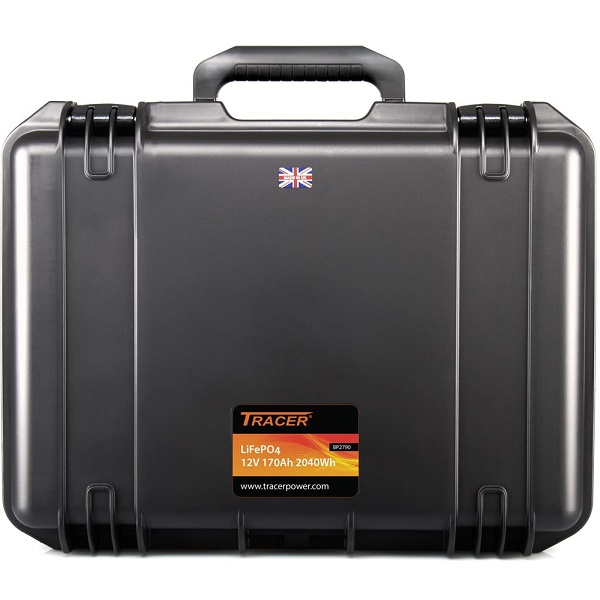

BATT-12V-170AH-PELI
£2,803.96

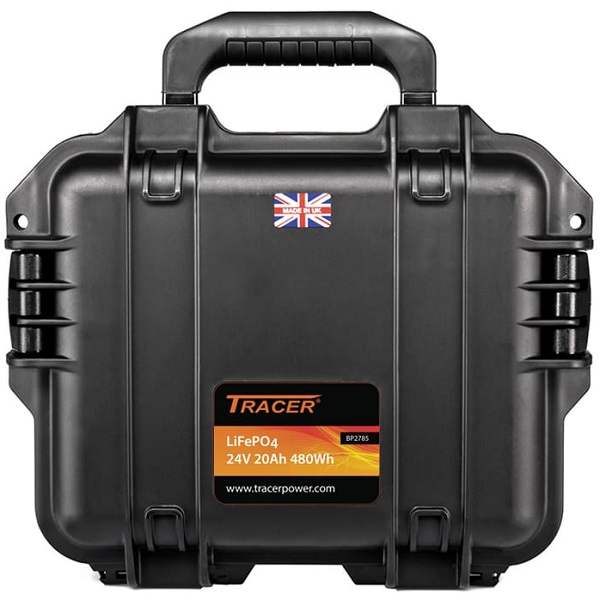

BATT-24V-20AH-PELI
£1,221.53
