HC2A-IE02 Screw-In Probe

HYGROCLIP 2. Screw-in Probes

Industrial screw-in probe for pressurised and vacuums applications up to 400 Bar with ½” BSP or ½” NPT connection. Mounted on a 2m cable with a digital interface to connect to the HygroFlex 5 series of transmitters.

View Options

Need help finding the right product?

CONTACT US

Description

Features

  • Measures relative humidity, temperature and dew/frost point.
  • Screw-in probe with steel housing.
  • Suitable for pressures up to 400 Bar (5800psi)
  • Temperature range -100 up to +200°C
  • Humidity range 0-100%RH
  • UART interface and freely scalable analog signals 0-1V
  • Standard scaling 0-1V = 0-100% RH & -40 to 60°C
  • Probe material: DIN 1.4305 or AISI 302/AFNOR Z10 CNF 18-9
  • Probe with ‘standard’ adjustment profile, factory adjustment certificate

Specifications

Product Ref  HC2A-IE02-G HC2A-IE02-NPT
Type ½” BSP screw-in probe ½” NPT screw-in probe
Ranges Temp = -100°C to +200°C & Humidity = 0-100%RH
Adjustment At 23°C and 10, 35, 80%RH
Accuracy ±0.8%RH/±0.1 K/Response time τ 63: without filter < 15 s
Filter Carrier SP-MSB15 (order filter separately.)

Filter Options

SPA-PE – Polyethylene Filter Sleeve (Pore size 40-50µm)

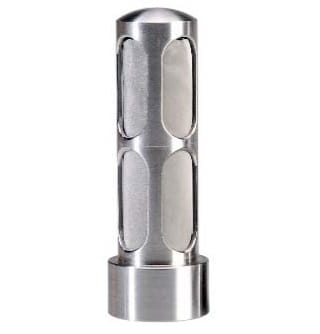

SPA-WM – Wire Mesh Filter Sleeve (Pore size 10µm)

SPA-PTFE – Teflon Filter Sleeve (Pore size 10µm)

SPA-SSS – Sinter Steel Filter with Carrier (Pore size 25µm)
