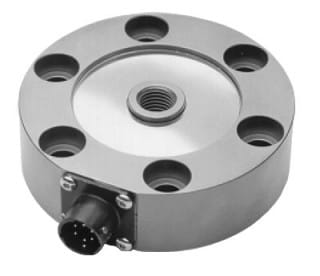

DSCRC Load Cell

Description

The DSCRC series are low profile pancake type load cells suitable for both Weighing and Force Measurement applications. Constructed from Stainless Steel, offering excellent corrosion resistance and improved zero force pass through performance over conventional steel products. The load cell’s design provides excellent resistance to extraneous forces, such as bending, side and torsional forces.

The load cell is used widely in material and fatigue testing applications, where a low physical height is required and forces are applied axially. The mounting bolts for all capacities are counterboard to prevent obstruction from the bolt heads. High frequency response is also a benefit with this load cell for dynamic force measurement applications, which is also complimented with excellent fatigue resistance.

Features

  • Capacities 200N to 2kN
  • Stainless Steel Construction.
  • Low Profile Design
  • High Natural Frequency
  • Excellent Rejection of Extraneous Forces
  • 3-Year Warranty

Options

  • Other ranges available on request
  • Equivalents to other manufacturers’ available
  • Full range of mounting options available including: Load Buttons, Spherical Rod End Bearings, Standard and Special Mounting Base.
  • Aluminium Version
  • Integral Cable Version
  • Different Centre Thread Sizes (consult factory)
  • Fatigue Rated Version
  • Double Bridge Version
  • TEDS Available for Plug & Play with TEDS Enabled Instrumentation, eg. TR150 Display

Applications

  • Materials Testing
  • Component Fatigue Testing
  • Calibration & Testing Machines
  • General Load & Force Measurement
  • Press Force Monitoring & Verification
  • Test Stand Force Measurement

Specifications

Standard Capacities (N): 0-200, 0-500, 0-1,000, 0-2,000
Sensitivity: 2mv/V Nominal
Zero Balance/Offset: <±5.0% Rated Output
Non-Linearity: <±0.1% Rated Output
Hysteresis: <±0.08% Rated Output
Repeatability: <±0.03% Rated Output for identical mounting position
Input Resistance: 375 Ohms Nominal
Output Resistance: 350 Ohms Nominal
Insulation Resistance: >5000 Megaohms @ 50vDC
Excitation Voltage: 10vDC Recommended (2-15vDC Acceptable)
Operating Temperature: -20 to +80°C
Compensated Temperature: 0 to +60°C
Storage Temperature: -20 to +80°C
Safe Overload: 150% of Rated Capacity
Ultimate Overload: 300% of Rated Capacity
IP Rating: IP65 (2,000N Version / IP52 (1,000N and below)
Fatigue Life: 108 Cycles Typical (109 cycles on fatigue-rated version)
Cable: 3m, 4-Core Screened, PUR Sheath via 6-pin Bayonet Lock Connector (MIL-C-26482-10-6P)
Construction: Stainless Steel

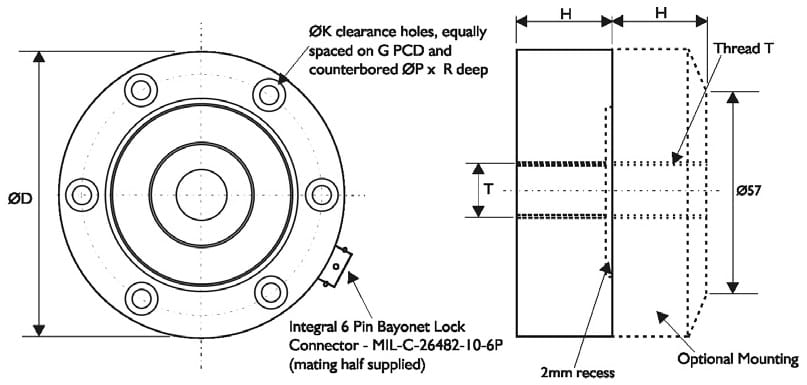

Dimensions



Capacity ØD H G K T ØP R Resonant Frequency
(kHz)
0-200N 76 25 60 6 off, Ø7 M10 x 1.0 11 7 1.5
0-500N 76 25 60 6 off, Ø7 M10 x 1.0 11 7 2.2
0-1kN 76 25 60 6 off, Ø7 M10 x 1.0 11 7 3.0
0-2kN 76 25 60 6 off, Ø7 M10 x 1.0 11 7 4.0
