Description
Applications
- Monitoring air filters, ventilators and blowers
- Monitoring and control of air flows
- Fan and blower control
- Valve and flap control
- Flow meter applications
- Pressure monitoring and control in clean rooms
Specification
| Accuracy | ±1,5% or (±6Pa <250 Pa) (including: general accuracy, temperature drift, linearity, hysteresis and repetition error) |
| Response Time | 0.8 / 4 s selectable by push button |
| Suitable Media | Air and non-aggressive gases |
| Measuring Element | Piezoresistive |
| Power Supply | 24vAC or vDC ± 10% Power consumption < 1.0 W (<1.5W with Iout 20mA) |
| Output Signal | 0…10vDC, Load R minimum 1kohm or 4…20mA, maximum load 500 ohms |
| Operating Temperature | -10…+50°C (-5…+50°C for –AZ model) |
| Housing | IP 54 ABS housing with PC Cover. |
| Dimensions | 90.0 x 71.5 x 36.0 mm |
The standard device includes
- Output signal 0-10V and 4-20mA in the same device
- Adjustable response time
Available options
- Autozero function

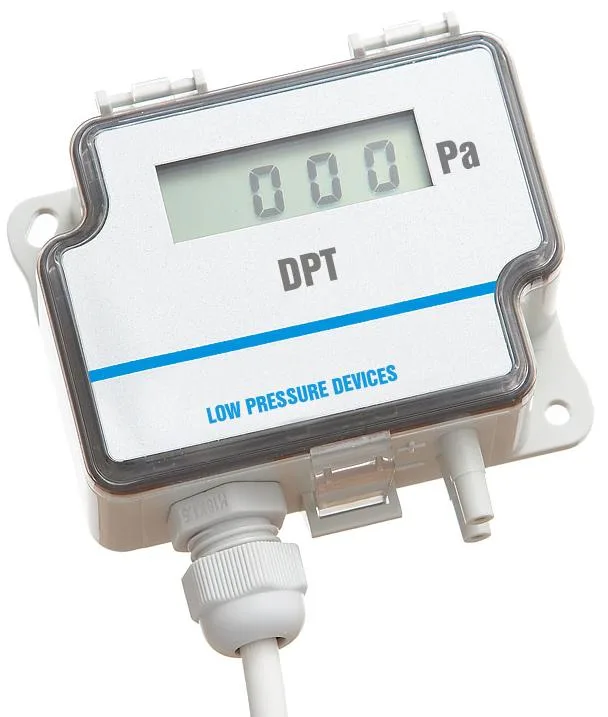

- Display

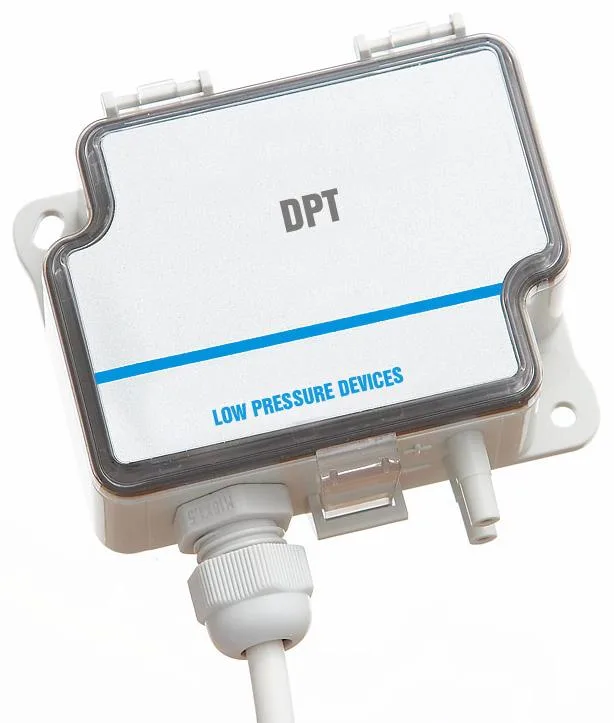

– the device is available with or without a display
– it is also possible to order and install the display afterwards
Selectable Pressure Ranges
| Model 2500 | Model 7000 |
| -100 to +100 Pa | 0 to 1000 Pa |
| 0 to 100 Pa | 0 to 1500 Pa |
| 0 to 250 Pa | 0 to 2000 Pa |
| 0 to 500 Pa | 0 to 2500 Pa |
| 0 to 1000 Pa | 0 to 3000 Pa |
| 0 to 1500 Pa | 0 to 4000 Pa |
| 0 to 2000 Pa | 0 to 5000 Pa |
| 0 to 2500 Pa | 0 to 7000 Pa |
Auto Zero Element
The optional auto zero element allows the transmitter to perform as a maintenance free unit. The element automatically adjusts the transmitters zero point from time to time, this eliminates the zero point long term drift of the piezoresistive sensing element. Units without an Auto Zero Element will require a manual zeroing at least every 12 months.
