The DMI820 Serial is a dual axis inclinometer with an RS232 or RS485 connection with a flying lead. A touchscreen display allows for real-time inclination monitoring and integrated control panel allows for adjustment. Units include a built-in rechargeable battery suitable for up to 11 hours standalone operation from 3-4 hours charging, or infinite operation when powered via the cable entry. The RS232 and RS485 connection allows for a connection to a laptop or PC running the software Provides synchronised display and data logging. The housing is a rugged metal with a double magnetic mounting or two screw fixing points.. Range ±15° or ±30° with an accuracy of 0.005° and 0.01° respectively and 0.001° resolution.

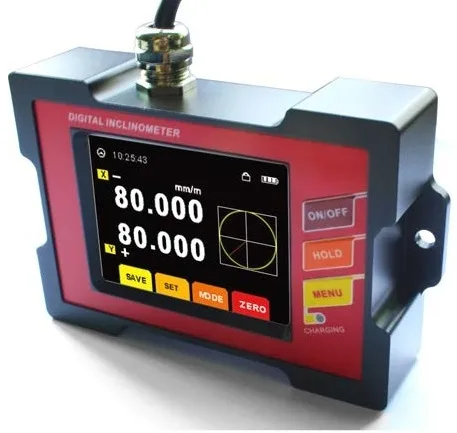

The DMI820 Serial series is a ready to use out of the box dual axis inclinometer with no complex configuration or calibration. DMI820 units are fitted with strong magnets on one side and bottom for mounting to metal surfaces for quick mounting and re-positioning, DMI825 has two fixing holes for a secure permanent mounting option. The display and internal rechargeable batteries allow for portable applications and up to 11 hours operation. The inclinometer displays both the X-axis and Y-axis and can be connected to a PC for synchronised display via the serial connection. Open software and choose COM port to view real time data on the computer and allow for recording.
| Parameters | DMI82x-15-RS232 | DMI82x-30-RS232 | DMI82x-15-RS485 | DMI82x-30-RS485 |
| Measuring Range | ±15 ° | ±30 ° | ±15 ° | ±30 ° |
| mm measuring Range | 267mm | 577mm | 267mm | 577mm |
| Measuring Axis | Dual axis | |||
| Angle Measuring Accuracy | <0.005 °FS | <0.01 °FS | <0.005 °FS | <0.01 °FS |
| Angle Measuring Resolution | 0.001° | |||
| MM Measuring Accuracy | 0.1mm | 0.2mm | 0.1mm | 0.2mm |
| MM Measuring Resolution | 0.02mm | |||
| LCD Visible Area Size | 57.6 x 43.2mm | |||
| Working Temperature | -10 to +70? | |||
| Working Humidity | ≤85%RH | |||
| Power Supply | 3.7V Charging Lithium battery | |||
| Ideal Charging Time | 3-4 hours | |||
| Battery Time | 11 hours (±0.5 hours) | |||
| Connect Plugin | RS232 via 1m cable with tails | RS485 via 1m cable with tails | ||
| Shock Impact | 10grmsÆ?10«?100Hz | |||
| Weight | 300g | |||
| IP Rating | IP54 | |||
| Mounting Options | DMI815: Magnetic Mounting; DMI825: Mounting Holes. | |||
| Dimensions | 105 x 73 x 27.1mm | |||

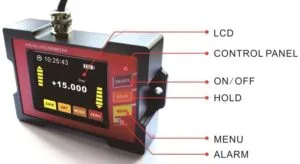

| ON/OFF: | Press for 2 seconds to turn on/off |
| HOLD: | Hold recording data |
| MENU: | Press to toggle onscreen.menu buttons |
| MENU&HOLD: | Press MENU & HOLD together to enter onscreen calibration mode. |
| Alarm Light: | Lit when recharging, off when charging completed May also be used for user configured alarm levels. |
DMI820-15-RS232
£846.46
DMI820-30-RS232
£718.50
DMI820-30-RS485
£718.50
DMI820-15-RS485
£718.50
DMI825-15-RS232
£718.50
