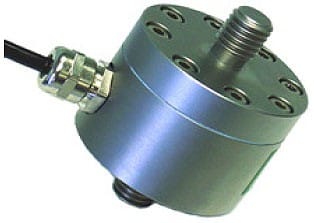

The DDEN series load cells are an inline bi-directional load cell suitable for tension and compression applications in areas likely to be submerged. The DDENA version is fitted with an integral amplifier and can incorporate any of the ICA series amplifiers, or DCELL RS485 signal digitisers.
The DDEN range of submersible low profile load cells is designed for the measurement of tensile or compressive forces in underwater locations and in situations where very high humidity or occasional submersion due to flooding is likely. The compact design proves to be advantageous by enabling in-line mounting of the load cell in a wide variety of applications where conventional load cells such as S-Beams will not fit. The low deflection and high natural frequency of the DDEN offers particular benefits in material testing and cable tension monitoring applications.
A version fitted with an integral amplifier is also available. Designated as the DDENA, is can incorporate any of the ICA series amplifiers to provide a conditioned voltage or current output signal, or DCell RS485 Signal Digitiser, without the need for an external amplifier, or housing.
| Standard Capacities (Tonnes): | 0-50, 0-100, 0-250, 0-500, 0-1000, 0-2000, 0-5000, 0-10,000, 0-20,000, 0-50,000 |
| Sensitivity: | 50N = 0.5mV/V / 100N=1.0mV/V / 250N = 0.75mV/V / 500N = 1.5mV/V / 1000N up = 2.0mV/V |
| Zero Balance/Offset: | <±1.0% Rated Output |
| Non-Linearity: | <±0.15% Rated Output |
| Hysteresis: | <±0.15% Rated Output |
| Repeatability: | <±0.1% Rated Output |
| Input Resistance: | 700 Ohms Nominal |
| Output Resistance: | 700 Ohms Nominal |
| Insulation Resistance: | >5000 @ 50vDC |
| Excitation Voltage (mV/V Only): | 10vDC Recommended (2-15vDC Acceptable) |
| Operating Temperature: | -20 to +80°C |
| Compensated Temperature: | 0 to +70°C |
| Storage Temperature: | -20 to +80°C |
| Safe Overload: | 150% of Rated Capacity |
| Ultimate Overload: | 200% of Rated Capacity |
| IP Rating: | Standard IP68 to 10m (Greater depths available on request) |
| Fatigue Life: | 108 Cycles Typical (109 cycles on fatigue-rated version) |
| Cable: | 2m, 4-Core Submersible Screened, PUR Sheath ¶Ø7.5 nominal |
| Construction: | 17-4PH Stainless Steel, 303 Stainless Steel, PUR, TPE, Silicone |

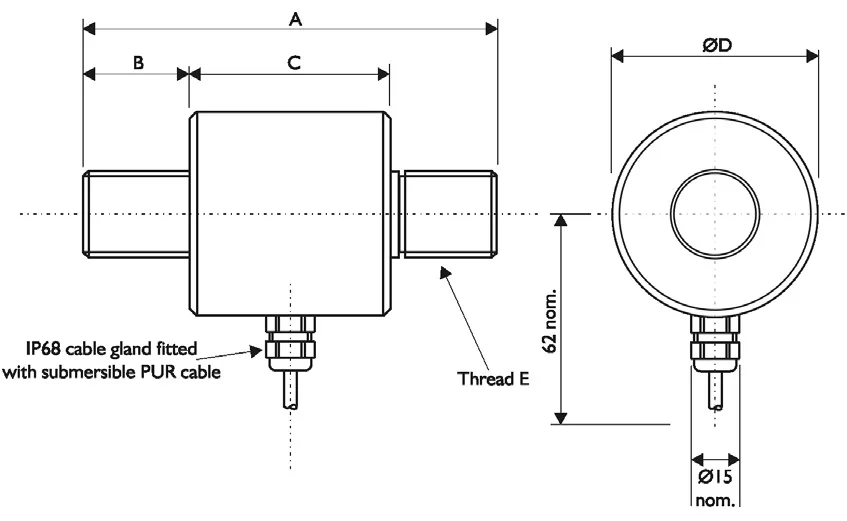

| Model | Capacity | A | B | C | ØD | E | Deflection | Resonant Frequency |
| DDEN | 0-50N | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.08mm | 1.7kHz |
| DDEN | 0-100N | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.12mm | 1.3kHz |
| DDEN | 0-250N | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.09mm | 0.72kHz |
| DDEN | 0-500N | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.06mm | 1.18kHz |
| DDEN | 0-1kN | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.04mm | 2.0kHz |
| DDEN | 0-2kN | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.03mm | 3.1kHz |
| DDEN | 0-5kN | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.02mm | 6.1kHz |
| DDEN | 0-10kN | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.015mm | 9.9kHz |
| DDEN | 0-20kN | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.01mm | 18.2kHz |
| DDEN | 0-50kN | 71 | 18 | 35 | 44 | M16 x 2.0 | 0.03mm | 13.0kHz |
| DDENA | 0-50N | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.08mm | 1.76kHz |
| DDENA | 0-100N | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.12mm | 1.3kHz |
| DDENA | 0-250N | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.09mm | 0.72kHz |
| DDENA | 0-500N | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.06mm | 1.18kHz |
| DDENA | 0-1kN | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.04mm | 2.0kHz |
| DDENA | 0-2kN | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.03mm | 3.1kHz |
| DDENA | 0-5kN | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.02mm | 6.1kHz |
| DDENA | 0-10kN | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.015mm | 9.9kHz |
| DDENA | 0-20kN | 67 | 15 | 35 | 44 | M12 x 1.75 | 0.01mm | 18.2kHz |
| DDENA | 0-50kN | 71 | 18 | 37 | 50 | M16 x 2.0 | 0.03mm | 13.0kHz |
