DBB Series Load Cell

Datasheet

Load Cell Mounting Accessories

Description

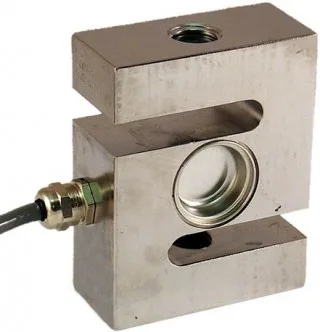

The DBB series ‘S-beam load cell’ is designed for force measurement and weighing applications alike and can be used for tension and compression measurements. It’s ease of mounting makes it very attractive for use as a general purpose load cell.

There are two versions available within the standard range. The smaller DBBE is an encapsulated cell sealed to IP67 (covering ranges of 50kgf up to 1,000kgf), the DBBWAS covers ranges above 1000Kgf.

Features

  • Capacities 50kg to 10,000kg
  • Robust Construction
  • Simple Installation
  • High Performance
  • 3-YEAR Manufacturer Warranty
  • DBBE Fully Encapsulated and Sealed to IP67

Options

  • Other Ranges Available on Request
  • Spherical Rod End Bearings
  • Load Buttons
  • Different Cable Lengths
  • Full Range of Mounting Options Available (consult factory)
  • 500VAC Certification

Applications

  • Force & Load Measurement Applications
  • Suspended Hoppers
  • Geotechnical Test Equipment
  • Tensile Testing Machines
  • Materials Testing
  • Bag Fillers
  • Conversion of Mechanical Scales to Digital
  • Dynamometers

Specifications

DBBE DBBWAS
Standard Capacities (Kg): 0-50, 0-100, 0-150, 0-200, 0-300, 0-500, 0-1000  0-1500, 0-2000, 0-3000, 0-5000, 0-6000
Sensitivity: 2.0mv/V ±0.1%
Zero Balance/Offset: <±2.0% Rated Output
Total Error: <±0.03% Rated Output
Zero Return after 30 mins: <±0.03% Applied Load
Input Resistance: 400 ±20 Ohms
Output Resistance: 350 ±3 Ohms
Insulation Resistance: >2000 Megaohms @ 50vDC
Excitation Voltage: 10vDC Recommended (2-15vDC Acceptable)
Operating Temperature: -30 to +70°C
Compensated Temperature: -10 to +45°C
Storage Temperature: -30 to +70°C
Safe Overload: 150% of Rated Capacity
Ultimate Overload: 300% of Rated Capacity
IP Rating: Standard IP67
Fatigue Life: 108 Cycles Typical (109 cycles on fatigue-rated version)
Cable: 6m, 6-Core Screened, PUR Sheath
Construction: Nickel Plated Alloy Steel

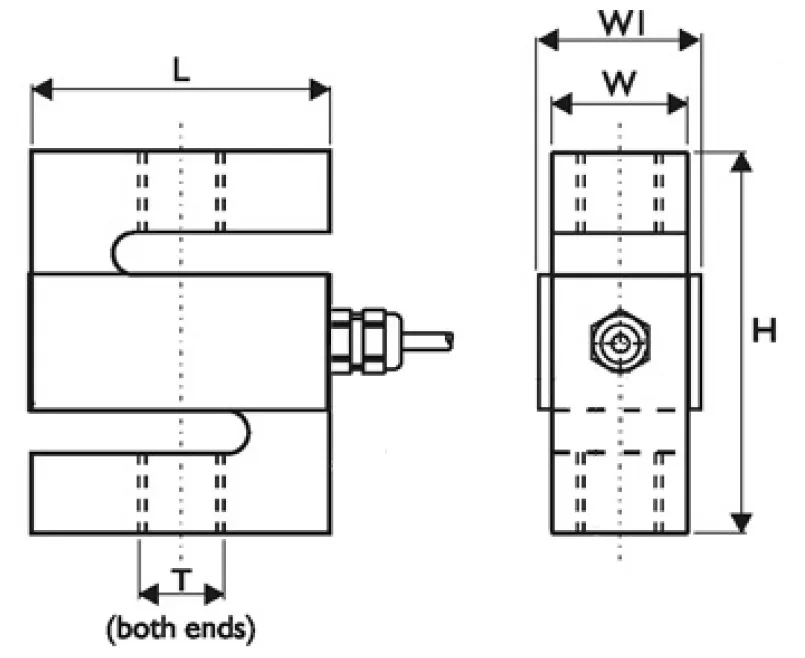

Dimensions

Model Capacity H L ¶W W1 ¶H1 Threads T
DBBE 0-50 up to 0-1,000Kgf 80 62.1 18 22 15 M12 x 1.75
DBBWAS 0-1,500Kgf 90 70 32 36 19 M16 x 2.0
DBBWAS 0-2,000Kgf 90 70 32 36 19 M16 x 2.0
DBBWAS 0-3,000Kgf 120 100 45 45 26 M24 x 2.0
DBBWAS 0-5,000Kgf 120 100 45 45 26 M24 x 2.0
DBBWAS 0-6000Kgf 120 100 45 45 26 M24 x 2.0



The optional load buttons and rod end bearings are designed to align forces through the principle axis of the load cell, reducing the effects of extraneous forces. Load Buttons are used for compressive forces and Rod End Bearings are used for tensile forces.
