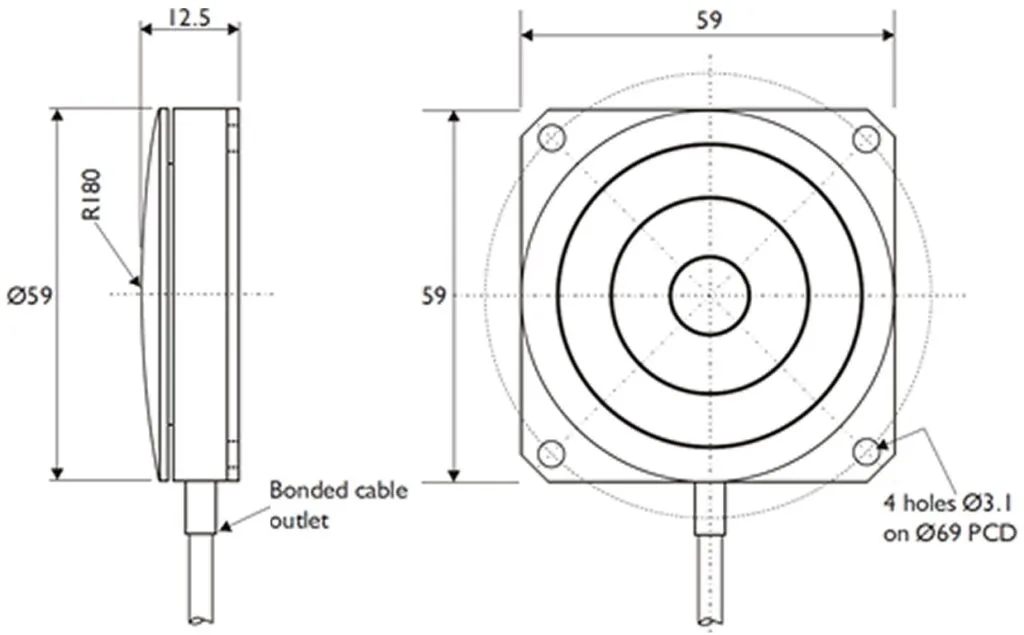

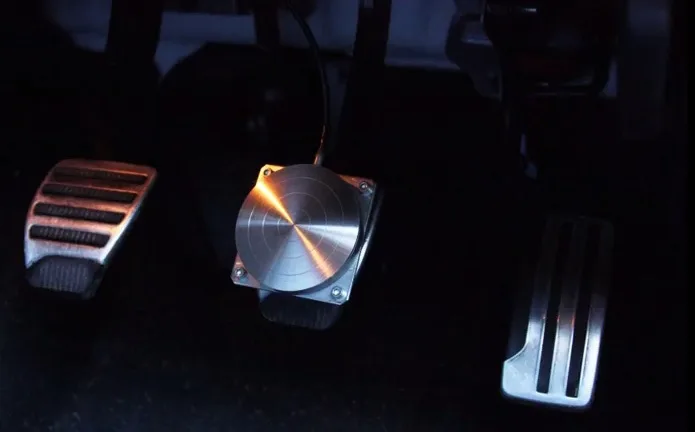

The CCGBP load cell is a very low profile load cell designed for the measurement of brake pedal compressive forces. At just 12.5mm high, the CCGBP load cell is small enough to fit in the tightest spaces. The integral mounting and loading plate allows for fast and simple fitting directly onto the pedal, with customised mounting options available for any vehicle. Ranges 50 to 200Kg. Standard output is 2mV/V with options for inline amplifiers for standard 4-20mA or voltage outputs and handheld display for immediate readout.
The CCGBP series load cells are designed for measuring compressive forces as they are applied to a brake pedal. The CCGBP are a very low profile and use a radial strain gauge arrangement to reduce errors from off-centre forces being applied. Its rugged stainless steel construction and IP65 ingress protection rating ensure a long and maintenance-free life.
The CCGBP can be connected to various signal conditioners to suit the monitoring systems. Inline signal conditioners can provide standard 0-10V or 4-20mA outputs, whilst the TR150 can read the TEDS chips to allow for real-time display of the readings. The DSC-USB can also be used to provide the readings to a laptop.
| Standard Capacities (Kgf): | 0-50 (500N), 0-100 (1000N), 0-150 (1500N), 0-200 (2000N), 0-250 (2500N) |
| Sensitivity: | 2mv/V Nominal |
| Zero Balance/Offset: | <±5.0% Rated Output |
| Non-Linearity: | <±2.5% Rated Output |
| Hysteresis: | <±2.5% Rated Output |
| Repeatability: | <±0.5% Rated Output |
| Input Resistance: | 700 Ohms Nominal |
| Output Resistance: | 750 Ohms Nominal |
| Insulation Resistance: | >2000 Megaohms |
| Excitation Voltage: | 10vDC Recommended (2-15vDC Acceptable) |
| Operating Temperature: | -20 to +80°C |
| Compensated Temperature: | 0 to +60°C |
| Storage Temperature: | -20 to +80°C |
| Safe Overload: | 150% of Rated Capacity |
| Ultimate Overload: | 300% of Rated Capacity |
| IP Rating: | Standard IP65 |
| Fatigue Life: | 108 Cycles Typical (109 cycles on fatigue-rated version) |
| Cable: | 3m, 4-Core Screened, PTFE Sheath via Cable Gland |
| Construction: | Stainless Steel |
| Weight: | 180g |
