CCG Annular Force Washer – Compression Load Cell

The CCG load cell is an annular/force washer load cell designed for the measurement of compressive forces and they are suitable for use in a wide range of research and industrial applications. The CCG load cell is often used in electro-mechanical test rigs and other critical bolted installations for monitoring continuously, or periodically, the tension profile of bolts during their use in the installation. The CCG load cell can also be used in cable tension systems and would normally be positioned at the cable anchor point. Ranges 12.5 to 540kN. Standard output is 1.5mV/V with an accuracy of 1.5% and options for inline amplifiers for standard 4-20mA or voltage outputs.

Need help finding the right product?

Downloads

CCG Load Cell

Description

The CCG Series of annular load cells are designed for the measurement of compressive forces, both continually and periodically and are often used to monitor bolt tension on wind turbines, or similar structures. These load cells often used in electro-mechanical test rigs and other critical bolted installations for monitoring continuously or periodically the tension profile of bolts during their use in the installation. The CCG is also used in cable tension systems and usually positioned at the cable anchor point.

Features

  • Capacities 12.5kN to 540kN
  • Sealed to IP66
  • Low Profile and Very Compact
  • Low Deflection
  • Suitable for use with Metric and Imperial Bolt Sizes
  • Robust Construction
  • 3-YEAR WARRANTY

Options

  • Non-Standard sizes available on request
  • Shunt Calibration Facility
  • Other ranges available on request
  • Special mounting adaptors available on request
  • Submersible & Waterproof Versions
  • Minaturised & High Temperature Versions
  • TEDS Available for Plug & Play with TEDS Enabled Instrumentation, eg. TR150 Display

Applications

  • Electro-Mechanical Test Rigs
  • Critical Bolted Installations
  • Cable Tension Systems
  • Cable Stays Monitoring
  • Rock Anchor Monitoring

Specifications

Standard Capacities (kN): 0-12.5, 0-25, 0-35, 0-50, 0-100, 0-160, 0-200, 0-250, 0-300, 0-360, 0-540
Sensitivity: 1.5mv/V Nominal
Zero Balance/Offset: <±5.0% Rated Output
Non-Linearity: <±1.5% Rated Output
Hysteresis: <±1.5% Rated Output
Repeatability: <±1% Rated Output for identical mounting position
<±10% Rate Output for altered mounting position
Input Resistance: 375 Ohms, 750 Ohms (above 40kN) Nominal
Output Resistance: 350 Ohms, 700 Ohms (above 40kN) Nominal
Insulation Resistance: >5000 Megaohms @ 50vDC
Excitation Voltage: 10vDC Recommended (2-15vDC Acceptable)
Operating Temperature: -20 to +70°C
Compensated Temperature: -10 to +60°C
Storage Temperature: -20 to +70°C
Safe Overload: 150% of Rated Capacity
Ultimate Overload: 300% of Rated Capacity
IP Rating: Standard IP66
Fatigue Life: 108 Cycles Typical (109 cycles on fatigue-rated version)
Cable: 2m, 4-Core Screened, PVC Sheath via Cable Gland
Construction: Stainless Steel

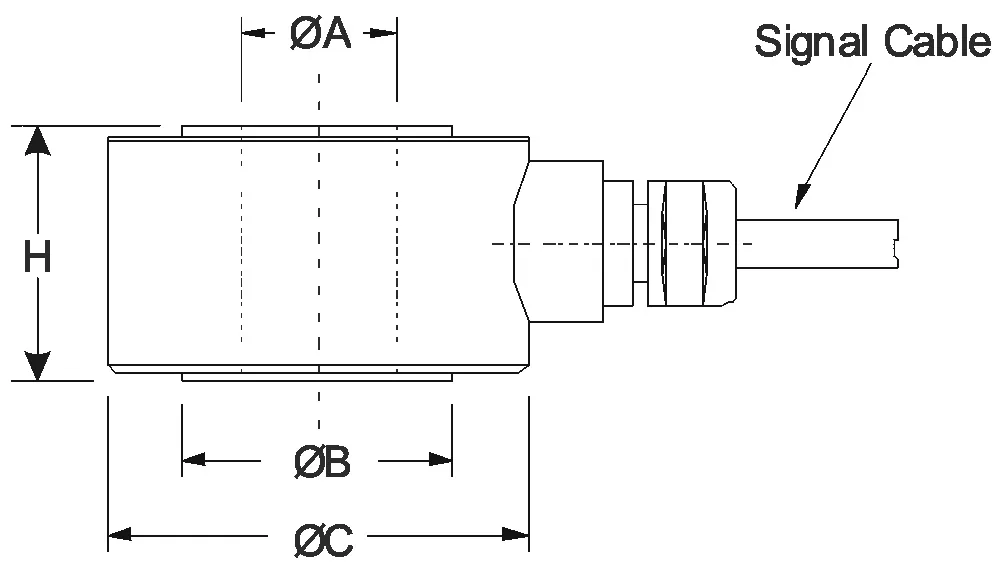

Dimensions





Capacity ØA ¶ØB ¶ØC H ¶Deflection Resonant Frequency
(kHz) @ Zero Load
Weight
0-12.5kN 6.1 10.4 25 12 0.01 25 50g
0-25kN 8.2 14.0 25 12 0.01 33 60g
0-35kN 10.2 17.7 32 12 0.01 31 100g
0-50kN 12.2 21.3 38 15 0.02 21 200g
0-100kN 16.3 29.0 48 20 0.025 19 300g
0-160kN 20.3 36.3 50 20 0.025 24 300g
0-200kN 22.3 40.4 55 25 0.03 20 400g
0-250kN 24.3 43.5 60 25 0.03 20 500g
0-300kN 27.3 49.60 63 25 0.03 22 500g
0-360kN 30.5 54.9 75 30 0.035 17 900g
0-540kN 36.5 65.5 88 50 0.06 10 2Kg
