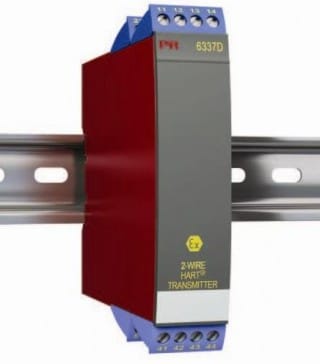

The 6337 is an extremely high accuracy DIN Rail mounting programmable transmitters with HART 5 or HART 7 protocol suitable for PT100/PT1000, Ni100, TC, Ohm or bipolar mV inputs. The transmitters converts the inputs into a 4-20mA outputs. The 6337 will also accept inputs from 2 RTD or TC sensors and provide a 4-20mA output with individual, difference or average temperature measurements. The unit requires a 8 to 35vDC power supply and can be mounted vertically or horizontally on a DIN rail. The unit can accept single or dual channel inputs with the option of intrinsically safe versions and galvanic isolation.
Application
Features
HART Protocol
The HART protocol provides a uniquely backward compatible solution for instrument communication as both 4-20 mA analog and digital communication signals are transmitted simultaneously on the same wiring. The Loop Link Programming Kit can configure the individual transmitters for multidrop mode and provide it with a unique polling address. The HART protocol revisions can be changed by user configuration to either the HART 5 or HART 7 protocl. HART provides many benefits promised by fieldbus, while retaining the compatibility and familiarity of existing 4-20mA systems.
HART® 7 protocol offers:
Options
| Type | Version | Galvanic Isolation | Channels |
| 6337 | A: Standard D: ATEX |
2: 1,500 VAC | A: Single B: Double |
If required, Omni Instruments will program a 6337 to your specific requirements. Please contact us for details.
6337A2A
£343.93
6337A2B
£615.08
6337D2A
£414.63
6337D2B
£740.63
5909
£217.34
