2224 Valve Controller

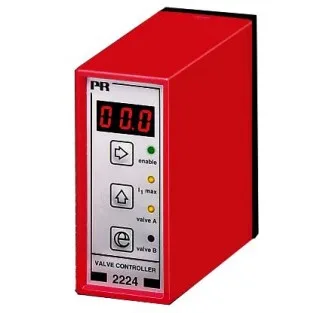

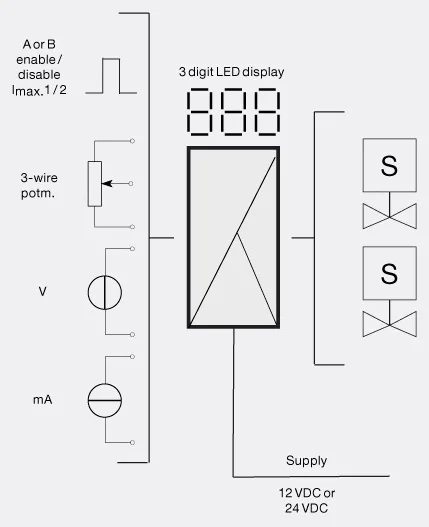

The PR 2224 Valve Controller is a microprocessor-based unit containing ramp functions for soft start and stop and jump functions thus avoiding deadband at start and changes between A & B valves. The user interface of the valve controller consists of three pushbuttons and a 3-digit LED display. During operation the display shows the present output signal as a % of the I valve. All parameters are protected against unauthorised changes with a password. Options for 12 or 24vDC power supply and single or dual channel versions.

Need help finding the right product?

Downloads

Description

Description

Applications

Control and regulation of single- or double-coil hydraulic and pneumatic proportional valves.
The unit is used for accurate oil flow regulation, linear soft acceleration and deceleration, modulated output signal, and programmable deadband.
Is highly suitable for joystick regulation of A/B movements.

Features

Front-programmable
mA, V, and Ω programmable input
Ramp times, jump values, reversal, chopper frequency, and deadband
3-digit LED display shows I-valve % value
1 or 2 channels
Modulated current output for proportional valve

Options

Type	Input	Supply	Options
2224	A: 0-20mA B: 4-20mA C: 0-1V D: 0.2-1V E: 0-10V F: 2-10V G: ±10V Potentiometer H: 0-10V Potentiometer	1: 12V 2: 24V	A: Single valve (A) B: Double valve (A/B)

Product

Ref

Price

Product Description

2224-1A

£373.00

PR2224-A1 Programmable Valve Controller for Single Valve Control with 12V @ 1.8W Power Supply. Inputs configurable via DIP Switches for 0-20mA, 4-20mA, 0-1V, 0.2-1V, 0-10V, 2-10V, ±10V Potentiometer & 0-10V Potentiometer. Standard 11-pole relay socket pins for PR 7023 Connection. 3-Digit LED Display shows Current or % value. Operating Temperature -20 to +60°C, 0-95%RH (non-condensing). IP50 Rated case with Dimensions: 80.5 x 35.5 x 84.5mm (without pins).

2224-1B

£486.00

PR2224-1B Programmable Valve Controller for Double Valve Control with 12V @ 1.8W Power Supply. Inputs configurable via DIP Switches for 0-20mA, 4-20mA, 0-1V, 0.2-1V, 0-10V, 2-10V, ±10V Potentiometer & 0-10V Potentiometer. Standard 11-pole relay socket pins for PR 7023 Connection. 3-Digit LED Display shows Current or % value. Operating Temperature -20 to +60°C, 0-95%RH (non-condensing). IP50 Rated case with Dimensions: 80.5 x 35.5 x 84.5mm (without pins).

2224-2A

£373.00

PR2224-2A Programmable Valve Controller for Single Valve Control with 24V @ 2W Power Supply. Inputs configurable via DIP Switches for 0-20mA, 4-20mA, 0-1V, 0.2-1V, 0-10V, 2-10V, ±10V Potentiometer & 0-10V Potentiometer. Standard 11-pole relay socket pins for PR 7023 Connection. 3-Digit LED Display shows Current or % value. Operating Temperature -20 to +60°C, 0-95%RH (non-condensing). IP50 Rated case with Dimensions: 80.5 x 35.5 x 84.5mm (without pins).

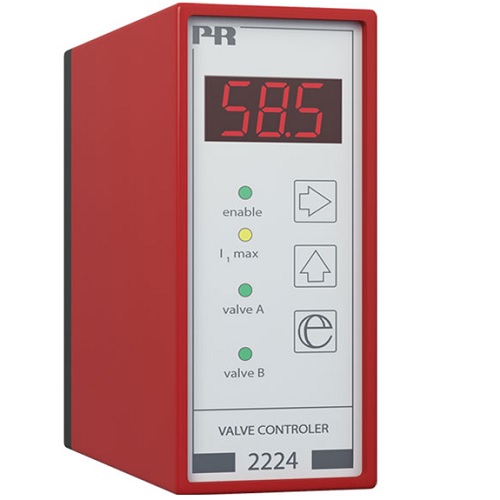

2224-2B

£496.00

PR2224 Programmable Valve Controller for Double Valve with 24V @ 2W Power Supply. Control. Inputs configurable via DIP Switches for 0-20mA, 4-20mA, 0-1V, 0.2-1V, 0-10V, 2-10V, ±10V Potentiometer & 0-10V Potentiometer. Standard 11-pole relay socket pins for PR 7023 Connection. 3-Digit LED Display shows Current or % value. Operating Temperature -20 to +60°C, 0-95%RH (non-condensing). IP50 Rated case with Dimensions: 80.5 x 35.5 x 84.5mm (without pins).

7002

£4.00

Stainless Steel retention clip for use with 11 point relay socket. Necessary in environments with strong vibrations.
