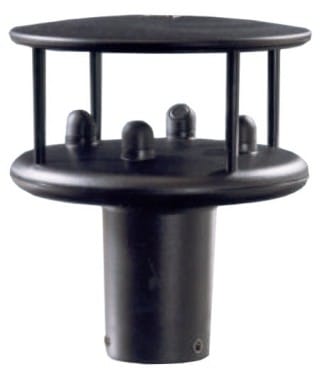

Windsonic 75 Anemometer

Description

The WindSonic 75 is a robust versatile wind speed and direction sensor with a wind speed range of 0-75m/s. Requiring very little maintenance and with no moving parts, or cups that can easily be damage, the WindSonic 75 Ultrasonic anemometer can be position in less accessible areas to take wind readings clear of obstructions. The high range is also suitable for most extreme storms and provide readings even in hurricane force winds and read gusts approaching 180mph.

Part Number 1405-PK-400 has an RS232 output, which can be useful for shorter cable lengths and direct connection to PC or Data Logger. A maximum of 6.5m is advised to ensure a clear signal.

FeaturesWindSonic75 Ultrasonic Anemometer Diagram

  • Wind Speed & Direction Sensor
  • 0-75m/s (146 knots) Wind Speed
  • 0-359° Wind Direction
  • WMO Compliant gust wind speed and directions
  • RS232 NMEA 0183 Output
  • RS232 ASCII Output
  • Low Power Consumption
  • Maintenance Free.
  • Free WindCom Software

Typical Applications

  • Remote weather monitoring stations
  • Building controls
  • Small airports & helipads
  • Road & rail tunnels
  • Environmental field sites
  • Coastal weather monitoring stations

Specifications

Wind Speed Range 0-75m/s (0-146 knots)
Wind Direction 0-359° (no dead band)
Starting Threshold 0.01m/s
Accuracy Wind Speed 2% RMSE, Direction 2° RMSE @ 12m/s
Resolution Wind Speed 0.01m/s, Direction 0.1°
Ultrasonic Output Rate 0.25, 0.5, 1, 2 or 4Hz
Parameters Speed & Direction or U & V Vectors
Units m/s, knots, mph, kph, ft/min
Power Supply 12-30vDC
Housing Material Polycarbonate
Size 142 x 163mm
Weight 0.5Kg
