Process Controllers are a robust suite of automated solutions designed to optimise industrial operations through seamless connectivity, remote monitoring, and precision control. These advanced systems integrate effortlessly into existing workflows, significantly reducing operational costs and boosting overall efficiency.
The N20K48 Modular Controller offers high levels of customisation to meet the demands of diverse applications. For example, when equipped with a Wi-Fi micromodule, it enables wireless communication with legacy systems for continuous, real-time data collection. This connectivity facilitates faster, more accurate decision-making and minimises downtime, an essential advantages in a modern industrial environment.
Our Temperature Controller series features high-performance PID technology engineered for simplicity. These controllers bridge the gap between professional-grade precision and ease of use, making them accessible to beginners without compromising on performance.
The N20K48 is a compact controller that can be expanded by a wide range of micromodules to fit any application. The N20K48 micromodules use ClickNGo technology to allow the module to fit the display and be easily configured using the QuickTune Mobile app
The Novus N1020 is a compact, ultra-shallow 1/32 DIN PID temperature controller designed to deliver high-precision industrial control at a low cost. It features automatic tuning for both PID and ON-OFF control modes, universal input support for PT100 RTDs, Thermocouples and 0-50mV. plus one SSR-driving pulse and electromechanical relay. Built with a space-saving 26 x 49mm front panel and 108.3 mm panel depth and a removable terminal block for easier installation. The compact display area makes the unit ideal for limited spacing applications and still provide PID functions with ramp-and-soak programs with timer functions.
The N1040i Universal indicator is a compact universal display suitable for most common Thermocouple, PT100 RTD and linear 4-20mA, Voltage and mV inputs. The unit is housed in a 1/16 DIN enclosure with a very simple configuration interface to allow programming. The N1040i has optional RS485 interface, two optional alarm relays with 6 programmable functions and auxiliary power supply for external sensors.
The Novus N1050 features a high-contrast, multi-colour LCD display designed with custom 11-segment alphanumeric characters that present process variables, parameters, and status messages clearly. Built into a compact 1/16 DIN panel format, it offers wide, multi-angle readability alongside large numerical digits for quick monitoring. Dedicated indicators line the display area to provide immediate visual feedback on output activity, active alarms, auto-tuning status, and timer/ramp-and-soak execution.
The N480D series of PID temperature controllers were designed to provide a high performance inexpensive high end controller with simple configuration and use. The controller will accept temperature inputs from Thermocouples and PT100 RTD sensors and has a wide range of options of two SPST, one SPDT, logic pulse and 4-20mA outputs. Autotuning PID function, dual display, full range universal power supply (optional 24vDC supply) and ramps soak function are standard on all controllers.
The N960 temperature controller is an ideal replacement for obsolete potentiometric controllers, combining simple operation with the high precision of a PID controller. It has a dual display, with an 18mm display for measuring variables and a 13mm display for Setpoints. N960 is the ideal device for applications that require a temperature controller with larger digits that make it easier to view variables from a distance.
The N2000 Universal Process controller is a real breakthrough in versatility for holding in one single instrument all the major features required in the vast majority of industrial processes.
The N2000S is a complete servo position controller engineered for precise and reliable control in critical processes. Designed for motorised valves, servo actuators, and dampers, it features two dedicated opening/closing relays, a programmable 0/4–20 mA analogue output, configurable for control or PV/SP retransmission, and a universal input compatible with most industrial sensors. Fully field-configurable without hardware modifications, all parameterisation, alarm settings, and input/output selections are easily managed via the front keypad for simplified commissioning and maintenance.

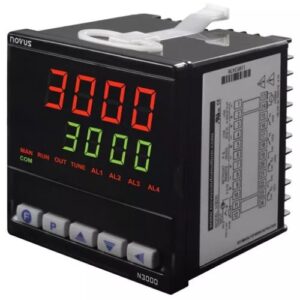

The N3000 is a Big Digit Universal Process Controller similar to the N2000 display but larger with 18mm PV Red Digits and 13mm SV Green Digits in a 96 x 96 x 92mm display. The basic N3000 unit includes one universal input, two SPST relays, two SPDT relays, 24vDC output for powering remote transmitters, one digital input, a 4-20mA input for remote setpoint and one 4-20mA output which can also be used as a digital input or output. RS485 Modbus RTU protocols are available as an option.
