FXT9/160
MSR145WD External FlexConnect Temperature Sensor. Range: -40 to +125°C, Accuracy ±0.1°C (-25 to 55°C), ±0.3°C (-40 to +125°C). Sensor is fitted with cable and FlexConnect connector. The sensor connects to the FlexConnect Box and MSR145WD data logger and will be automatically detected...
GC-06
GEN II radio transmitter with integrated thermistor probe. Temperature Range -40 to +70°C, Resolution 0.1°C and Accuracy ±0.2°C (-15 to 40°C). Supplied with 4 x AA Alkaline batteries and stub antenna...
GL100-N
GL100-N Petit logger main unit. 4.9MB internal memory and micro SD memory card slot, (max file size 1.9GB). Backlit monochrome display (128Ç?64 dot resolution) displays measured values and settings. Power Supply 2 x AA Alkaline batteries or USB bus-power. Dimensions 66 x 100 x 27mm...
GPS-16-HVS-DCON
GPS 16 HVS GPS receiver, with RS232 O/P, power supply 6-40 vDc, with D connector to suit direct connection to DT82i..
GS-CO2-S-UN
GS-CO2 Space Mounted Carbon Dioxide Transmitter with Non-Dispersive Infra-Red (NDIR) Sensor. Measurement Range: 0-2,000ppm. Output: 4-20mA or 0-10vDC selectable. Power supply: 24vDC. IP30 Flame retardant ABS housing, dimensions 115 x 85 x 30mm...
HBS-PROGKIT
HBS/1/6000 - Programming Kit. USB Configuration Module. Unit will power the sensor using the USB connection to allow for programming. HBS/1/6000's use the SEM206P SMART RTD Temperature Transmitter...
IO-RM-A
Adjustable Switching Point Relay Module. NC/NO relay output for a 0-10V input signal. 24vDC Power Supply. Relay output 230vAC @ 8A...
MCIL4M-1500-MCIL4M
Power switch cable, with two times MCIL4M 4 pin male miniature inline subcon connectors, and 1.5 metres of cable...
MIEX06252
MiniAir 6EX Mini vane anemometer. Sensing head 22mm diameter x 28mm, probe length 175mm. Air velocity range 0-20m/s with a 0-2V output. Accuracy ±1% of full scale, ±3% of reading. Power supply 9-24vDC Sensor is supplied with 20m cable to zener barrier housing. Operating range -10 to +80°C. Plastic sensing..
MSL-EXT-DISP
External LCD display unit for MSL data logger, fitted in aluminium housing, display area 74mm x 45mm, with adjustable back light. Displays either 3 channels or 12 channels of data, programmable via data logger...
MTN/8107
Integral in-line signal conditioner module in potted box (25 x 40 x 13mm) fitted to AC LVDT with 0.5m PVC cable tail ends. Power Supply 14-24VDC, Output 4-20mA...
N420
N420 Frequency Converter. Converts signals from pulse to an analogue current or voltage output. Units can be supplied pre-programmed with a flow meter, or supplied with software to allow user configuration. Programming via USB 2.0 interface, which can also provide an onscreen display on the PC. Output option: Analogue 0-5V,..
OMNI-TDI-HIGHTEMP-SET
Complete set of high temperature transducers for OMNI-TDI-200H flowmeter. Transducer set includes HS1 (for pipe diameter 15-100mm), HM1 (50-700mm) and HL1 (300-6000mm), operating temperature range 0-160 C..
PB-5001-1M5
Standard Thermistor Probe with moulded handle and connector (IP68 rated). The stainless steel probe is 150mm long and 5mm in diameter with a 1.5m cable. Temperature range -40 to 125°C with a 15 second response time in water...
PTM/N/Ex Depth Sensor
Programmable Intrinsically Safe Submersible depth sensor. Output - 2 wire, 4 -20mA. Accuracy +/-0.25%. Temp range -5 to 50°C...

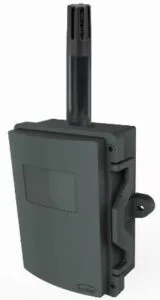

RH-W-5V
RH-W-5V Wall-mounted Air Temperature and Relative Humidity transmitter with Jumper Selectable 0-5vDC or 4-20mA Outputs. Measurement Range 0-100% RH, -20 to +50°C with an accuracy of ±3%RH (20 to 80%RH), ±0.5°C. Power Supply: 24vDC ±10%. Unit is housed in a PC/GF (Halogen free, Flame Retardant & UV Stabilized enclosure with..
SD-15A-12
SD-15A-12 DC to DC converter. Input Voltage: 9.2-18vDC. Output Voltage 12vDC @ 15 Watts. Dimensions: 78 x 51 x 28mm. Panel mounted enclosure with short circuit, overload and over-voltage protection...
SMAG-PWRLINK-CAB
SMAG powerlink cable, connects powerlink transmitter units to control unit, price for 50 metres...
SUBSEA-LOGGER-COMMS-2
Serial interface cable assembly with 8 pin female inline miniature subcon connector ( to subsea housing ) to USB ( PC connection ), supplied with drivers for USB port setup...

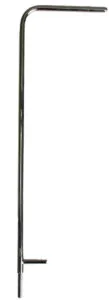

SW10026.6
Steel Pitot Tube for measuring static and dynamic pressure in air flows. 3mm diameter tube with 300mm probe length. Suitable for temperatures up to 350°C..
TP-60-OQ
Stainless Steel Thermal Barrier for OQ610-S data loggers. Dimensions: 250mm x 320mm x 65mm, weight 8Kg approx. Thermal capacity of 120 min at 100°C or 45 min at 300°C (max internal temp 70°C)...

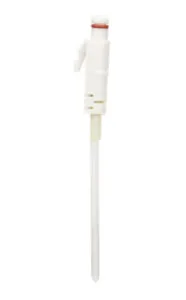

TR-5101
Fluoropolymer coated temperature sensor for TR42 . Flexible probe, 45mm x 2.2mm diameter, measurement range -60 to +155°C. response time 80 seconds in air, 7 seconds in water. Accuracy Avg. ± 0.3°C at -20 to 80°C Avg. ± 0.5°C at -40 to -20°C, 80 to 110°C. Avg. ± 1.0°C at..
TT-OR-CVO
TT-OR-CVO Outside Air Temperature Sensor with a PTFE radiation shield suitable for monitoring temperature in an external environment. Housing is a grey, IP65, PC/GF (Halogen free, flame retardant & UV stablised) with a PT100 temperature sensing elements housed in a 40 x 16mm diameter radiation shield. Selectable 4-20mA or 0-10vDC..

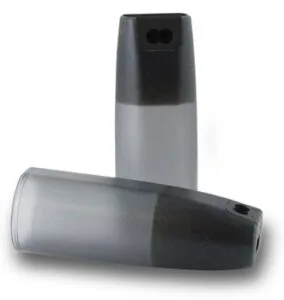

USB-CAP-30V
Spare/replacement cap for the EL-USB-3. The USB-CAP-30V provides the connection method to the current loop to be recorded by the EL-USB-3 data logger...
