OMEGA-WP-SDC65
OMEGA Helix Woltmann Type Bulk Water Meter. Pipe diameter 65mm with PN16 flanged connections, flow range: Qmin 788 l/hr; Qn 63m3/hr; Qmax 78.75m3/hr. Epoxy coated cast Iron body suitable for up to water up to 30 C with WRAS Approval. All OMEGA Flowmeters come prepared for a pulse output of..
Omni C Series Current Transducers
The Omni C Series are single-phase AC current transducer with a split core sensor. Jumpers allow for the a selectable input range of 0-10, 0-20 and 0-50 Amp or 0-100, 0-150 and 0-200 Amps. Self powered units are available with a 0-5vDC or 0-10vDC output plus a loop powered 4-20mA..
P501 Miniature Rotary Sensor
The P501 RIPS (Rotary Inductive Position Sensor) suitable for OEM applications. Each unit is supplied with the output calibrated to the angle required by the customer, between 30 and 140 degrees. It is particularly suitable for OEMs seeking good sensor performance for arduous applications where space is important...
PA-21Y/30BAR/22-2155-144
Series 21Y Pressure Transmitter. Range 0 to 30 Bar. Power Supply 8-32vDC, Output 4-20mA. 1/4" BSP process thread and IP67 rated M12 electrical connection. Compensated temperature range 0 to +50°C and ±0.5%FS linearity...
PA-DPS-83
PA-DPS Differential Air Pressure Switch in an IP54 enclosure. Range 50-500 pascals with a Silver Cadmium Oxide (AgCdO) contacts suitable for up to 1.5A (0.4)/250vAC. 6mm id pressure connections. Dimensions 130mm diameter x 99mm high. Units come complete with duct fixing kit (consisting of 2 x pitot tubes, 2m tubing..
PA33X/8601.26
Keller series 33 subsea transmitter, range 0-1 to 0-1360 bar sealed gauge with 1/4 inch G male thread . With 4-20mA, or 0-5v output, total error band 0.15% and RS485 Output total error band 0.1%. Subsea housing, external case pressure 400 bar, with 5 pole subcon connector MCBH5MSS-316..
PA600 Series Standard Industrial Pressure Transducers and Transmitters
The PA600 series of industrial pressure sensors are suitable for measuring gas and liquid pressures across a wide range of general purpose and industrial applications. The standard the PA600 comes with: Viton O-ring, 303 stainless steel case, ceramic diaphragm (96% Aluminium Oxide Al2O3) and a ¼"BSP male process connection, but..
PA645BP-BARO-B4AV-00-000
PA Series Barometric Pressure Transducer. Stainless Steel Body and Silicon-Based Sensing Element. Ideal for Atmospheric Pressure Fluctuations with Absolute Pressure Reference. 645B - 3 Wire, 0.5-4.5vDC Output, Power Supply 5vDC P - Mini DIN Plug & Socket Connection BARO - Barometric Pressure Range, 750-1250mBar Absolute B - Improved Accuracy 0.1%..
PCV-151-MT-V
PyroCV Infrared Temperature Sensor. Field of View: 15:1 optics, Temperature Range: 0°C to 250°C. Fixed emissivity of 0.95, Spectral Range 8 to 14µm. Output 0-5V, Response Time 125mx (t90). Power Supply: 10-28.8vDC @ 20mA Max. Electrical Connection: M12 5-pin output connector. 86.5mm long Stainless Steel Body with M18 x 1.0..
PL-525-0.2
PL-525 Relative Low Range Pressure Transmitter. Range 0 to 200mBar. Power Supply 10-30vDC, output 4-20mA. IP65 stainless steel casing with ½" BSP male thread pressure connection, ceramic diaphragm and DIN connector. Operating temperature range -15 to +80°C...
PL-692-0.2
PL-692-0.2 differential pressure transmitter suitable for liquids, steam and gases. Pressure range 0-200mBarD over a 4-20mA output with 11-33vDC power supply. IP65 stainless steel casing with a pair of 6mm compression pressure connection, ceramic Al2O3 (96%) diaphragm and 1.5m flying lead. Operating temperature range -15 to +85°C...
PM-CT-150SC
Current Transformer (split core type) - Primary current - 150A, Rating Class 3 - 1.5 VA..
PM-CT-M150
Current Transformer (moulded type) - Primary current - 150A, Rating Class 3 - 2.5VA..
PR 3300 Series Loop-Powered Temperature Converters
The PR 3300 Series is a range of 6mm loop-powered temperature isolators and signal converters suitable for use with K & J Type thermocouples and PT100 temperature sensors. Programming is achieved via selectable DIP switches allowing changes to 4-20mA output and temperature ranges. The series includes the PR 3337 HART..
PS300
PS300 Differential Pressure Switch in an IP54 enclosure. Adjustable Range 30-300 pascals with a NO/NC contacts, suitable for up to 3A / 250vAC. 5mm Diameter Male pressure connections. 25kPa Proof Pressure and 50kPa Burst Pressure. Operating Temperature -20 to +60°C, (0-95%RH Non-Condensing). Dimensions 105 x 73 x 63mm...
PS500 Multi Gas Detector
The Personal Surveyor (PS500 Series) is a robust and accurate portable gas detector that provides personal protection in confined space applications with audible and visual alarms in the event of exposure to dangerous levels of gases being detected. The PS500 unit can be fitted with any 4 of the 20..

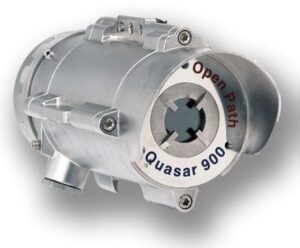

QR-C-112
SafEye Quasar 900 Receiver Unit. Warm up time: 30 seconds. RS485 Modbus Interface and HART Comms. Analogue Output: 0-20mA (Sink). Output: Fault = 0-3mA; Normal Readings = 4-20mA. Power Supply 18-32vDC @ 250mA (Peak: 30mA). ATEX/IECEx Approved Ex d e ib [ib Gb] IIB+H2 T4 Gb, Ex tb IIIC T135°C..
RC250 Modbus GEN II Receiver
The RC250 Modbus GEN II Receiver can be used as a receiver unit for the GEN II transmitters to provide a serial Modbus output for up to 160 active channels. The RC250 is a self-contained mains powered receiver unit with built-in batteries providing more than 24 hours of operation in..
RI-TV Series Isolated True RMS Voltage Transducer
A DIN Rail mounted voltage transducers suitable for converting AC and DC voltage to a proportional mA or voltage output. The TVV0010 is powered by a 85-265vAC mains supply and TVV0040 is powered by 10-36vDC with a full range of selectable AC voltage inputs and mA or V outputs. The..
RI-TVV0040
RI-TV Series Isolated True RMS Voltage Transducer. DIN Rail Mounted with Screw Terminals. Selectable Input Range: 0-24, 0-36, 0-54, 0-80, 0-120, 0-170, 0-250, 0-400, 0-450, 0-500vAC. Selectable Output Range: 0-20mA, 4-20mA, ±20mA, 20-0mA, 20-4mA, 0-5V, 0-10V, ±5V, 10V, 10-0V. Supply Voltage: 10-36vDC @ 1.5W. Operating Temp -20 to +60°C, IP20...

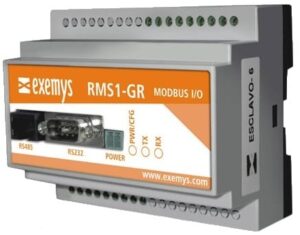

RMS1-OT-11088-0X-GR-MB
Remote I/O Module, 8 Opto isolated digital inputs, 8 Open Collector Digital Outputs. RS232/RS485 Modbus ASCII/RTU Communication, Wide power supply range: 10 up to 30vDC, DIN rail mounting...
RMS2-PT-110-00-80-IA3-MB
RMS2-PT PT100 Acquisition Module. The unit provides 8 Differential Input Channel suitable for 2- or 3-wire PT100 temperature sensors. An RS232 and RS485 isolated pluggable terminal blocks (Modbus RTU/ASCII Slave) plus USB port for configuration. DIN Rail mounted industrial enclosure with terminal blocks. Power supply: 10-30vDC, consumption 50mA @ 12vDC...

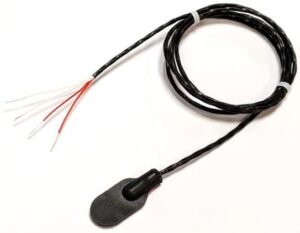

RTD-SURFACE-FLAT-2MFL
Self-Adhesive Surface Mounted PT100 Class A Sensor with 2m PFA Insulated Cable. Measurement Range -30 to +150°C. Suitable for flat surface mounting with a 16 x 37mm rubber patch..

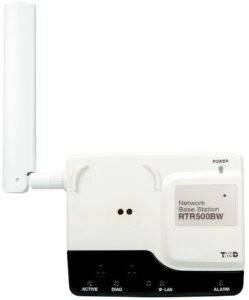

RTR500BW
RTR500BW Network Base Station/Repeater with RJ45 Wired, or Wireless, LAN Connection, and USB 2.0 connection for configuration. FTP and email alarm software supplied, but will require PC with Internet access and SMTP server to provide emails. Downloaded data can be sent to email or server at scheduled intervals, or under..
