Vision Series Turbine Flowmeters
Vision Series Flowmeters. Units are available with 1/4 inch BSP, NPT or 3/8 inch Male threads...
VLS Optical Speed Sensor with Pulse Output
The VLS Series sensors provide an NPN pulsed output for each rotation of a rotating object. Maximum range is up to 250,000 rpm. This is ideal for data-logging applications and where general speed monitoring of machines is required, it is particularly useful for monitoring & recording RPM or rotational speed..
VLS/DA/LSR
VLS-DA-LSR Optical Speed Sensor with a red laser class II 635nm light source. Optical Range: 50 - 2,000mm with Green LED on target indicator. Overall speed range 0-10,000 RPM. Analogue Output: 0-3V for 0 to 10,000 RPM. Optical Angle: up to ±80°. Power Supply: 7.5 to 15vDC. Dimensions: Length 130mm..
VLS5-T
VLS5/T Optical Speed Sensor with Visible Light Source. Optical Range: 50 - 1000mm, up to 250,000rpm. Optical Angle ±45°. Power Supply 5vDC. Light Source: 5vDC Mini Lamp. NPN Pulse Output. 1.5m cable with flying tails. Dimensions: 130 x 34mm diameter...
VM-6360
VM-6360 hand held vibration meter kit, range 0-199mm/sec velocity, 0-20g. 0.04-80 mil displacement, 4 digit LCD display. Complete with 50mm spike, hand held probe, magnetic mounting, interconnecting cable, case and handbook...
VM220 & VM330D Portable Vibration Meters
The MTN/VM220 is a compact, rechargeable, portable handheld Vibration meter designed to conform to ISO10816-3 and operate with a constant current accelerometer providing accurate vibration and temperature measurements. The units come as a kit which consists of a compact vibration meter, dual-output general purpose sensor, magnetic base and spike, a..
VS500-420E
AC voltage transducer model VS500, voltage range 0 - 500vAC, response time less than 300mS, accuracy ±0.5% of full scale. Power supply 24vDC. Operating temperature -10 to +50°C (20-90% RH non condensing)...
W52I010
MX52 Frame rack 3 U 19 inch type MX52 fitted with 100vAC power and CPU cards. Maximum capacity 16 channels, channel card available separately. Standard version, delivered along with French and English simplified user manual. ATEX II (2) G approved - SIL2 approved according to EN61511 standard. This..
Water Leak Detection Sensor – TSF400
The TSF400-0 is a water leak detection sensor designed for detecting the presence of water on a surface without the need for a separate alarm module. The sensor uses 5 electrodes on the base of the sensor and trips when one of the four outer electrodes connects to the central..
WD-CPS
Condensation Prevention Sensor with 2 metre lead. Output: current mode (dry <3mA, wet >12 mA). VFC mode SPDT contact, 24vAC/DC @ 500mA resistive. Supply voltage: 25vDC 5% or 24vAC 10% Supply current: 12mA max...
WD-CS-2M
Water Leak Detection Cable. PVC Twisted pair cable with 316 stainless steel elements. Cable is 3.5mm diameter with a 3m leader and 2m of sensor cable...
WD-PS
Water Leak Detection Point Sensor. Housed in a robust ABS enclosure, dimensions 58 x 58 x 31mm, with slot lugs for easy installation and stainless steel probes. Unit comes with 2m of cable...
WD-RS
Water Detection Rain Sensor. Housed in a robust ABS enclosure, dimensions 70 x 30 x 45mm, with swivelled mounting bracket. Unit comes with 2m of cable...
WH-2100
WH-2100 watt hour sensor. Range 0-100 Amp, input voltage 208-230VAC ±10%, output 1 pulse per 10 watt hours...
WIMO-LOGGER
The WiMo-Logger is supplied in a robust carry case and included activating magnet and sensor tool...
WindSonic75 Ultrasonic Wind Speed and Direction Sensor
The Windsonic75 Ultrasonic anemometer provides wind speed and direction in the range of 0-75m/s. Readings can be provided as an RS232, RS422, or RS485 Serial or two analogue outputs. The WindSonic75 unit is a robust, lightweight (0.5kg) sensor with a corrosion-free polycarbonate blend housing. The WindSonic75 units are suitable for..
WLM4-230
4 Channel Water Leak Detection Module with built in sounder and changeover relay. Power Supply 230vAC @ 60mA. LED indication for input channels, supply detection and heater activation. Output 230vAC @ 10A Volt-free Changeover Contact. Dimensions: 70 x 60 x 90mm...
WLN-2400-ES-EU
WLN-2400 Series, Ethernet Module for Industrial Wireless Applications. Power supply 9-30vDC, frequency range 2.4GHz with a 100mW transmitter power...
WMO-400S
WMO-400S Series, High Performance Modem for Industrial Wireless Applications. Power supply 11-30vDC, frequency range between 430-490MHz (adjustable +/-10MHz) with a configurable transmitter power from 10-500mW in narrow and wide bandwidths...
WMO-869S
WMO-800S Series, High Speed Modem for Industrial Wireless Applications. Power supply 10-30vDC, frequency range 869.525MHz with a 500mW transmitter power. Single serial port for RS485 or RS232 connections...
WP-SDC-50-H
WP-SDC-50-H Woltmann Helix Hot Water Meter. Pipe diameter 50mm with PN16 flanged connections, flow range: Qmin 0.5 m³h; Qn 40 m³h; Qmax 50 m³h. Epoxy coated cast Iron body suitable for up to water up to 90°C. Additional pulse output options from 0.1 to 1 m³/pulse are available at the..

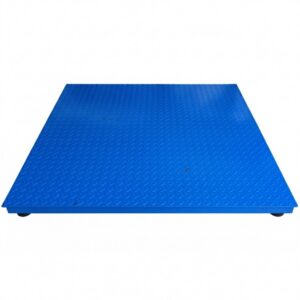

WP600
WP600 Series - Standard Industrial Weighing Platform in Mild Steel. Platform dimensions 600 x 600mm. Capacity 0-150Kg up to 0-3,000Kg. Dunbar top plate with a hammer spray paint finish. Fitted with four Shear Beam load cells sealed to IP66..

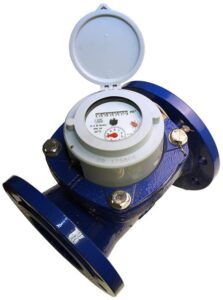

WPI-SDC-50
WPI-SDC Irrigation Water Flowmeter. Pipe diameter DN50 with standard PN16 flanges. Flow range Q1 3.15m³/h, Q2 5.04m³/h, Q3 63m³/h and Q4 78.75m³/h. IP68 Epoxy Coated Iron body with replaceable copper can mechanism. Additional pulse output options from 0.1 to 1 m³/pulse are available at the time of order. (Please order..

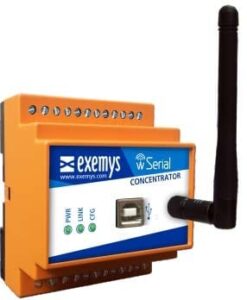

WSERIAL-C
wSerial Wireless Concentrator, provides serial connection to acquire data from wSerial-N remote nodes. Power supply 10-30vDC, operating temperature -5 to +65°C, DIN rail mounting. 1 x RS232/RS485 transparent serial port, supports MODBUS protocol RTU/ASCII. 2.4GHz Zigbee radio communications, maxim range 2Km line of sight. Maximum number of remote nodes -..
