WPI-SDC Irrigation Water Flowmeter. Pipe diameter DN50 with standard PN16 flanges. Flow range Q1 3.15m³/h, Q2 5.04m³/h, Q3 63m³/h and Q4 78.75m³/h. IP68 Epoxy Coated Iron body with replaceable copper can mechanism. Additional pulse output options from 0.1 to 1 m³/pulse are available at the time of order. (Please order pulse modules separately). Dimensions: Length 200mm, diameter 165mm and height 252mm. Weight: 10.5Kg.
£202.34
The WPI-SDC flow meters are designed for monitoring sandy/dirty irrigation water using an undershot paddle wheel. An undershot wheel is a vertically mounted water wheel with a horizontal axle that is rotated by the flow of water through the pipe. The paddle wheel in the WPI-SDC irrigation flow meter is positioned so that the lower half of the paddle wheel is immersed in the flow. The motion of the paddle wheel is then proportional to the volume of water flowing through the flow meter.

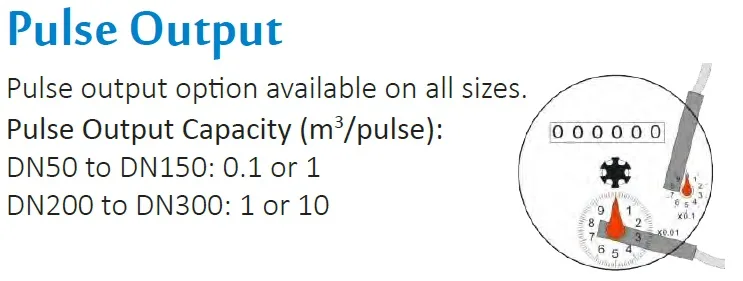

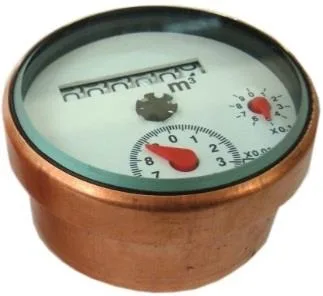

The meter body is an epoxy coated iron with a Dry Dial, Copper Can design display with frost protection. The copper can mechanism can be replaced onsite without the need to remove the flow meter itself. The DN50 flanged connection is suitable for pressures up to 16 bar. The mechanical indicator allows for two optional pulse output at 0.1 and 1 m³/pulse. The WPI-SDC flow meter is ideal for irrigation and agricultural applications where flows may contain solid particles.
Features
Specifications
| Size | DN | DN50 |
| R | Q3/Q1 | 20 |
| Q4 | m³/h | 78.75 |
| Q3 | m³/h | 63 |
| Q2 | m³/h | 5.04 |
| Q1 | m³/h | 3.15 |
| Max Reading | m³ | 999999.99 |
| Min Reading | Litre | 0.0001 |
Dimensions:
| Size: | DN50 |
| L: | 200 |
| H: | 252 |
| H1: | 338 |
| D: | 165 |
| D1: | 125 |
| nxM: | 4 x M16 |
| Weight: | 10.5Kg |
Due to the large size and weight of the WPI-SDC irrigation meter, the meters aren’t available to purchase online. If you are interested in purchasing one of these flow meters, please contact us directly for a quotation. Email: [email protected]
