Description

The Gill WindUltra is a next-generation, ultra-compact 2-axis ultrasonic anemometer engineered for high-precision wind monitoring in the most demanding industrial and meteorological environments. While serving as a modern, space-efficient alternative to the standard WindSonic, the WindUltra is a significantly more rugged professional instrument, boasting a triple-certified IP66, IP68, and IP69k rating for total protection against high-pressure washdowns, fine dust, and submersion. Weighing just 270g and featuring an innovative ‘twist-lock’ mounting system, it provides maintenance-free wind speed and direction data up to 75m/s (168mph). With integrated heating as standard and support for Modbus, SDI-12, and NMEA protocols, the WindUltra is the definitive choice for mobile masts, UAV platforms, and critical infrastructure where size, weight, and extreme durability are non-negotiable.

Features

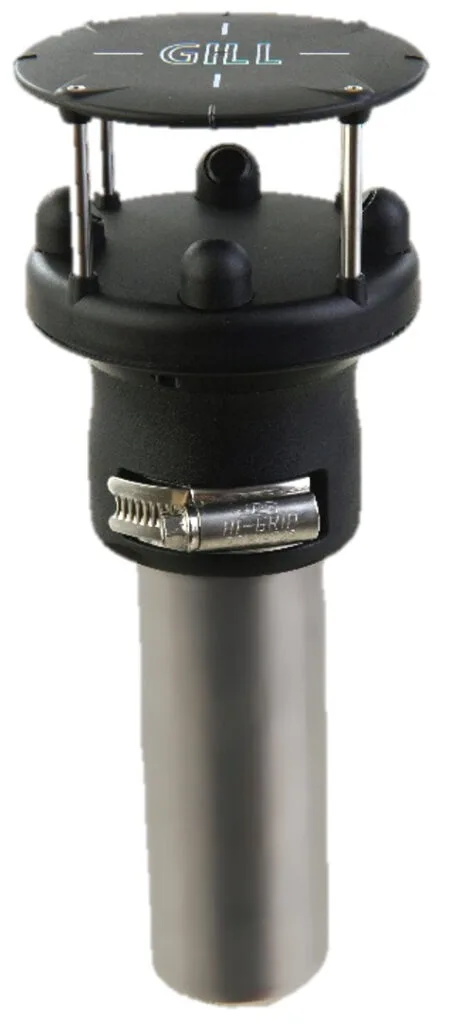

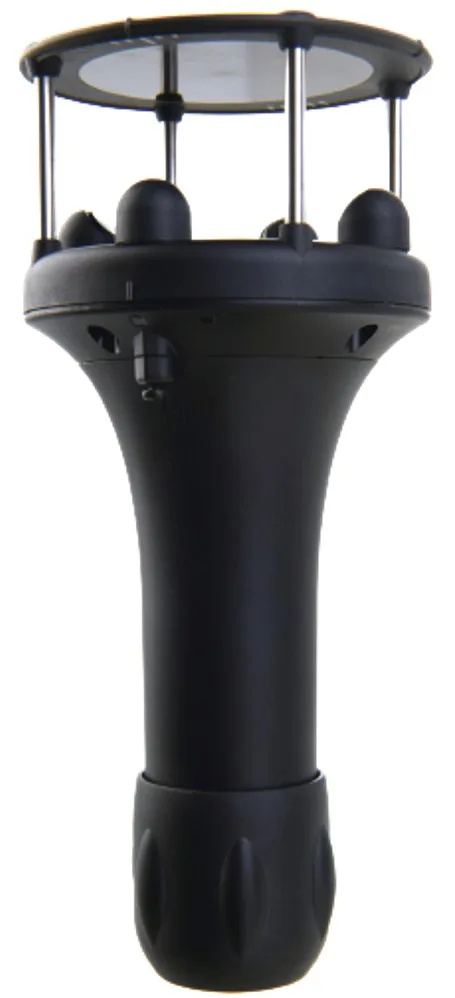

  • Two options for rapid alignment & installation – 1″ (25-26mm) and 1.75-2″ (44-51mm) pole mounts
  • 0-75 m/s (270 km/h) wind speed
  • 0-360° wind direction
  • RS485, MODBUS, NMEA and SDI-12 outputs
  • Corrosion free construction
  • Environmental protection to IP66, IP68 and IP69k
  • 270g with 1″ pole mount

Specifications

Version WindUltra
Wind Speed Range 0-75m/s (168mph, 270Km/h)
Wind Direction 0-360°
Starting Threshold 0.01m/s
Accuracy (0-20m/s)
 Wind Speed <2%, Direction <1° RMSE
Resolution Wind Speed 0.01m/s, Direction 1°
Output Rate Polled or 1, 2, 4 or 8Hz
Parameters Polar Wind and gust speed and direction,
signed U & V Vectors, supply voltage
Wind Speed Units m/s, knots, mph, kph, ft/min
Power Supply 5-30vDC @ 100 to 800mW @ 70m/s Unheated
– Heating (Optional) <7.6W Heated.
Housing Material Thermoplastic and marine-grade Stainless Steel
Operating Temperature -40 to +70°C
Size 84mm Diameter. 1″ Pole mount 189mm, 2″ Pole Mount 107mm
Weight 1″ Pole mount 270g, 2″ Pole Mount 260g

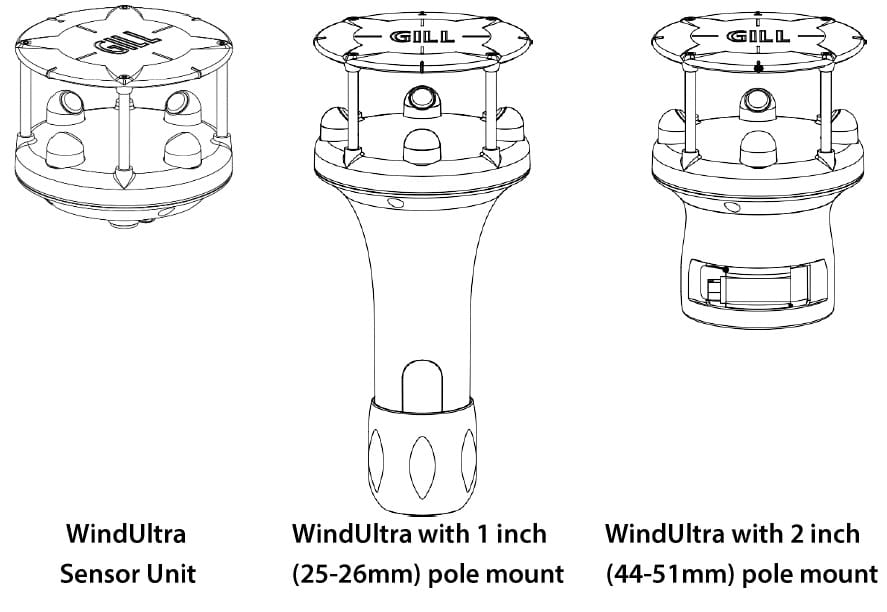

WindUltra Product Range
