Description

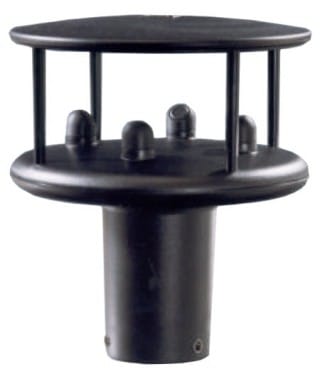

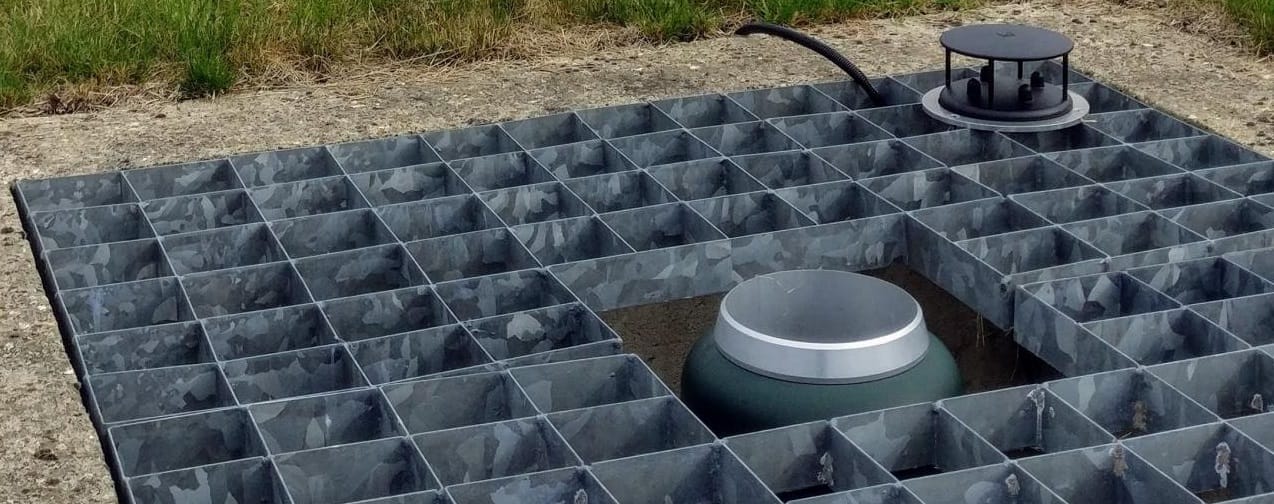

The WindSonic 60 is a robust, versatile wind speed and direction sensor. With no moving parts, or cups that can easily be damage, the WindSonic anemometer can be position in the grating over the mounting pit protecting a rain bucket, or where birds have previously damaged the more delicate cup anemometer. Providing consistent, useful wind data with minimal disruption or downtime.
Features
- Wind Speed & Direction Sensor
- 0-60m/s (116 knots) Wind Speed
- 0-359° Wind Direction
- NMEA Output
- ASCII Output
- Low Power Consumption
- Maintenance Free.
- Free WindCom Software
Typical Applications
- Building controls
- Small airports & helipads
- Road & rail tunnels
- Environmental field sites
- Weather monitoring stations
- Portable weather stations
Specifications
| Version | WindSonic |
| Wind Speed Range | 0-60m/s (0-116 knots) |
| Wind Direction | 0-360° (no dead band) |
| Starting Threshold | 0.01m/s |
| Accuracy | Wind Speed 2%, Direction 2° @ 12m/s |
| Resolution | Wind Speed 0.01m/s, Direction 1° |
| Ultrasonic Output Rate | 0.25, 0.5, 1, 2 or 4Hz |
| Parameters | Wind Speed & Direction or U & V Vectors |
| Units | m/s, knots, mph, kph, ft/min |
| Power Supply | 5-30vDC (Dependant on Output) |
| Housing Material | Polycarbonate |
| Size | 142 x 160mm |
| Weight | 0.5Kg |
WindSonic 60 Output Options
| Option 1: | RS232 and NMEA |
| Option 2: | RS232, RS422, RS485 and NMEA |
| Option 3: | RS232, RS422, RS485 and NMEA plus 2 x Analogue Outputs: 0-5V, 0-20mA or 4-20mA |
| Option 4: | SDI-12 |
| Option 5: | RS485 Modbus RTU |
| Baud Rates: | 2400 to 38400. |
| Anemometer Status: | Supplied as part of standard message |

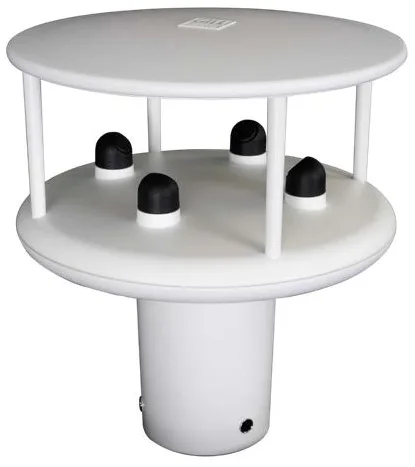

WindSonic 60 sensors are available in Black or White Polycarbonate housings.
