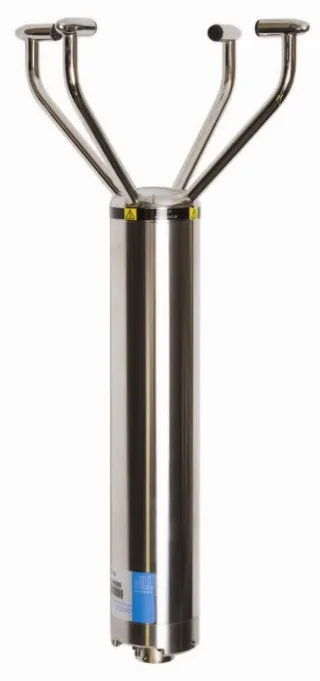

The WindObserver 70 is a solid state, heated ultrasonic anemometer designed for use within the aviation industry and for applications where weather conditions are more extreme. The sensor is accepted for service by both the FAA (Federal Aviation Administration and the CAA (Civil Aviation Authority) for the observation and reporting of surface wind. This WindObserver meets the requirements of Annex 3 of the convention on International Civil Aviation Organization (ICAO). The WindObserver 75 is recommended for high altitude, Arctic and Antarctic weather monitoring. The WindObserver 90 is ideal for measuring high wind speeds, up to 100m/s (224mph), in extreme weather conditions, eg typhoons and hurricanes. The new WindObservers are approved by the Lloyd’s Register of London.
Specifications
Wind Speed Specifications
| Model: | WindObserver 70 | WindObserver 75 | WindObserver 90 |
| Range: | 0-70m/s (0-156mph) | 0-75m/s (0-186mph) | 0-100m/s (0-224mph) |
| Starting Threshold: | 0.01m/s | ||
| Accuracy: | ±2% @ 12m/s | ||
| Resolution: | 0.01m/s | ||
Wind Direction Specifications
| Range: | 0-359° (no dead band) |
| Accuracy: | ±2° @ 12m/s |
| Resolution: | 1° |
Measurement
| Ultrasonic Output Rate: | 1-4Hz |
| Parameters: | UV, Polar, NMEA |
| Units: | m/s, knots, mph, kph, ft/min |
| Averaging: | Flexible, 1-3600 seconds |
Digital Output
| Communication: | RS422/RS485 full duplex/half duplex |
| Baud Rates: | 1200, 2400, 4800, 9600, 19200, 38400. |
| Formats: | 8 bit data; odd, even or no parity |
| Anemometer Statue: | Supplied as part of standard message |
Power Requirement
| Anemometer Only: | 9-30vDC (Max 60mA @ 12vDC). WindObserver 90 20-30vDC (max 60mA) |
| Heating (Optional): | Max 7A @ 24vAC or DC |
Mechanical
| External Construction: | 316 Stainless Steel |
| Size: | 381 x 213mm |
| Weight: | 1.3Kg (excluding base & cable) |
The new WindObservers are currently being approved by the Lloyd’s Register of London. The previous generation, WindObserver II, have approval and will be available on request until the new units are approved. Please contact us for details.

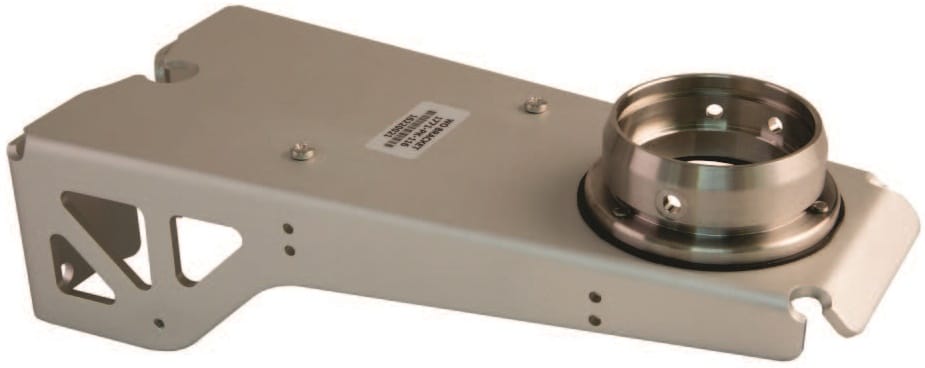

1771-PK-116
£227.00
