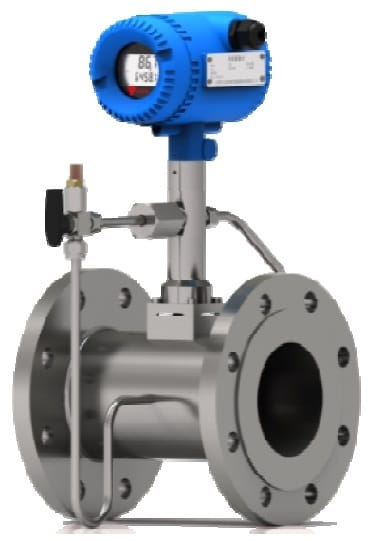

VFM60 Vortex Flow Meter

The VFM60 vortex flow meter uses the Karman Vortex theory to allow the flow meter to be used with gas, steam or liquid flows. The transmitter utilises a unique dual sensor design to allow for the unit to compensate for vibration in the meter and provide a much more reliable performance and lower measurement limits. The unit can also include an optional Bluetooth function, allowing the unit to be connected to via a mobile phone app for configuration and to take readings from the meter onsite. Meters can also be fitted with pressure and temperature sensors to provide these additional parameters.

Need help finding the right product?

Downloads

Vortex Flow Meter

Description

.

Product

Ref

Price

Product Description

VFM60MV-T2113N3BN-050

£1,732.33

Multi-variable vortex flowmeter. Integral Transmitter with display DN50 Wafer style connection 304SS wetted parts Integral RTD and pressure sensor for density compensation Pulse and RS485 Modbus outputs 24VDC power supply Velocity Accuracy: RD 1% Temperature allowance: -40°C~150°C Pressure allowance: 1.6 Mpa max Ambient temperature and humidity: -40°C~80°C, 5~95% RH Velocity measure range: 0.3~7m/s
