Description

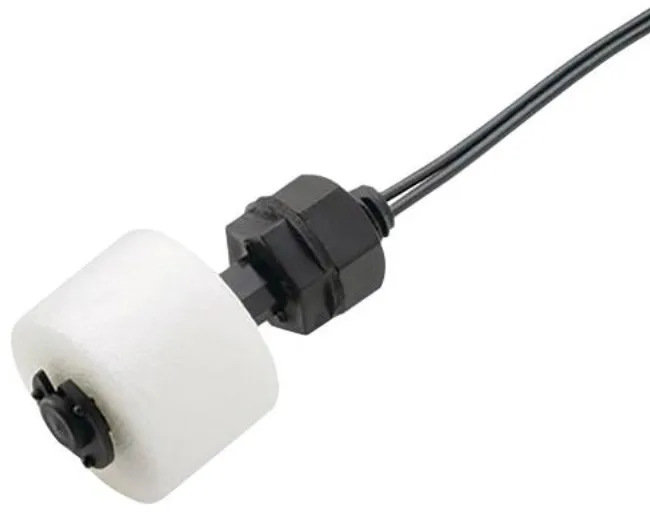

The 59630 is a reed level sensor featuring an integrated float actuator and an M8 x 1.25mm pitch thread. It offers versatile contact options, including normally open, normally open high voltage, normally closed, or change-over contacts. This sensor can switch up to 265vAC/300vDC at 10VA, making it well-suited for applications such as liquid and air conditioning condensate monitoring, as well as industrial process control.

Features

• Float sensor with integral float magnet attached
• Sensor operates when float rises from end stop position
• Choice of Normally Open or Normally Closed.
• No standby power required
• Hermetically sealed
• Simple installation with M8 thread and nut.

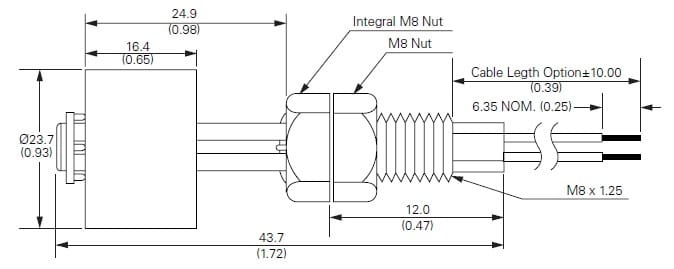

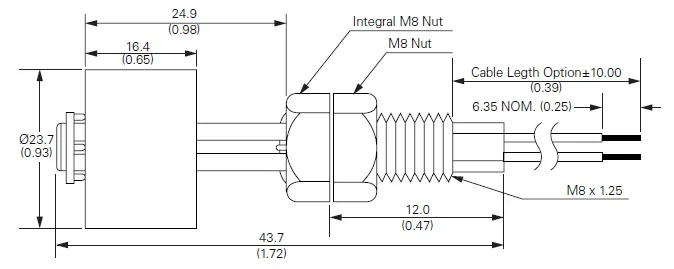

Drawing

Specifications
