Description

Features

• Detects up to 4 different gases.
• Sampling pump allows samples to be drawn from up to 100 feet.
• Sampling pump can be integrated or as a conversion kit.

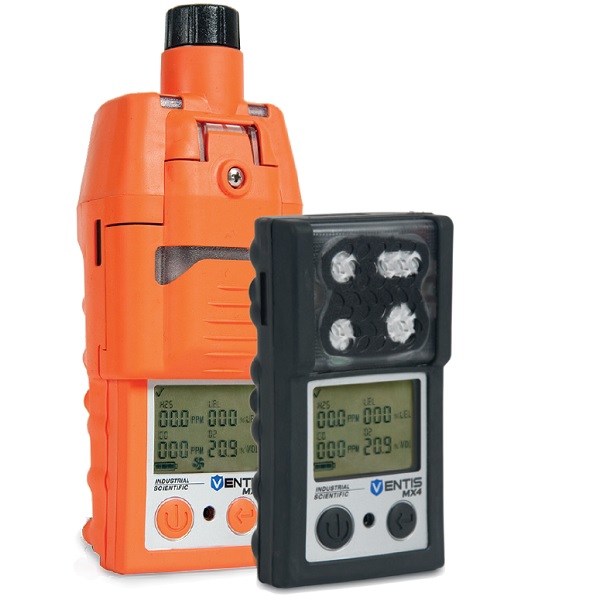

• Available with a high visibility orange casing.
• Extended range battery allows for up to 20 hours use (without pump)

Specifications

Case Material:
Polycarbonate with Protective Rubber Overmold

Dimensions:
103 mm x 58 mm x 30 mm (4.1” x 2.3” x 1.2”) – Ventis, Lithium-ion Battery
Version (typical)
172 mm x 67 mm x 66 mm (6.8” x 2.6” x 2.6”) – Ventis with Pump,
Lithium-ion Battery Version (typical)

Weight:
182 g (6.4 oz) – Ventis, Lithium-ion Battery Version (typical)
380 g (13.4 oz) – Ventis with Pump, Lithium-ion Battery Version (typical)

Operating Temperature Range:
-20°C- 50°C (-4°F-122°F) typical

Operating Humidity Range:
15%-95% non-condensing (continuous) typical

Display/Readout:
Backlit Liquid Crystal Display (LCD)

Power Source/Run Time:
Rechargeable Lithium-ion Battery Pack
(12 hours typical @ 20ºC) – Ventis

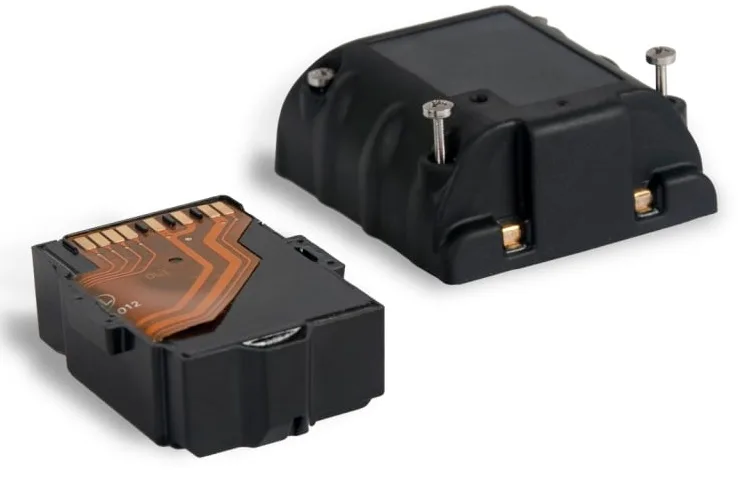

Rechargeable Extended-Range Lithium-ion Battery Pack
(20 hours typical @ 20ºC) – Ventis
(12 hours typical @ 20ºC) – Ventis with Pump
Replaceable AAA Alkaline Battery Pack
(8 hours typical @ 20ºC) – Ventis
(4 hours typical @ 20ºC) – Ventis with Pump

Alarms:
Ultra-bright LEDs, loud audible alarm (95 dB at 30 cm) and vibrating alarm

Sensors:
Combustible gases/methane – Catalytic Diffusion
O2, CO, H2S, NO2, SO2 – Electrochemical

Measuring Ranges:
Combustible Gases: 0-100% LEL in 1% increments
Methane (CH4): 0-5% of vol. in 0.1% increments
Oxygen (O2): 0-30% volume in 0.1% increments
Carbon Monoxide (CO): 0-1,000 ppm in 1 ppm increments
Hydrogen Sulfide (H2S): 0-500 ppm in 0.1 ppm increments
Nitrogen Dioxide (NO2): 0-150 ppm in 0.1 ppm increments
Sulfur Dioxide (SO2): 0-150 ppm in 0.1 ppm increments
