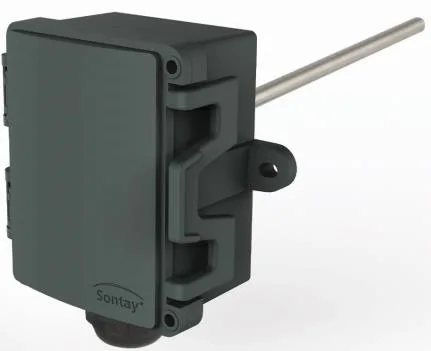

TT-I-CVO Immersion Temperature Transmitter

The TT-I-CVO temperature sensors are used to measure the temperature of liquids in pipework using a thermowell. Units are available with a PT100 sensing element which is housed in a Stainless Steel 6mm diameter probe with 65, 150 or 250mm insertion lengths. The high temperature TT-IH-CVO version has a probe mounted on a separate Stainless Steel probe with 150 or 250mm insertion probe length with 1m cable connecting the probe to an IP65 housing for termination. The unit uses a 24vDC power supply to provide an active 0-10V or 4-20mA output option with 2 pre-set temperature ranges (selectable via jumpers), plus a customised calibrated output range is also available. Suitable thermowells are the TT-PO Stainless Steel pocket.

Need help finding the right product?

Downloads

TT-I Immersion Temperature Sensor

TT-IH High Temperature Immersion Sensor

TT-PO Stainless Steel Thermowell Pockets

Description

Description

Features

PT100 sensing element
6mm Stainless Steel insertion probe
Optional probe lengths 65, 150 & 250mm.
2 Pre-set temperature ranges
Jumper selectable outputs
Optional Stainless Steel thermowells for easier installation and maintenance.
24vDC power supply.
Weatherproof housing, IP65

Specifications

Output types:	Current: 4-20mA Voltage: 0-10vDC
Housing material:	PC/GF (Halogen free, flame retardant & UV stablised housing
Dimensions:	80 x 79 x 44mm
Ambient range:	–30 to +70°C
Protection:	IP65
Weight:	160g

Connection Diagram:

Thermowells

Product

Ref

Price

Product Description

TT-I-CVO-65

£74.41

TT-I-CVO Immersion Temperature Sensor suitable for monitoring temperature in pipework systems. PT100 temperature sensing elements housed in a 65mm x 6mm diameter Stainless Steel probe with an IP65 housing. Selectable 4-20mA or 0-10vDC output options with 2 pre-set selectable temperature ranges (-10 to +40°C or -10 to +110°C) Power supply 24vDC

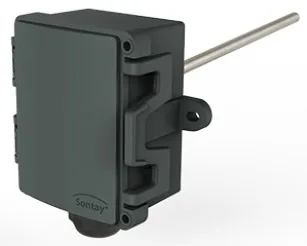

TT-I-CVO

£74.41

TT-I-CVO Immersion Temperature Sensor suitable for monitoring temperature in pipework systems. PT100 temperature sensing elements housed in a 150mm x 6mm diameter Stainless Steel probe with an IP65 housing. Selectable 4-20mA or 0-10vDC output options with 2 pre-set selectable temperature ranges (-10 to +40°C or -10 to +110°C) Power supply 24vDC

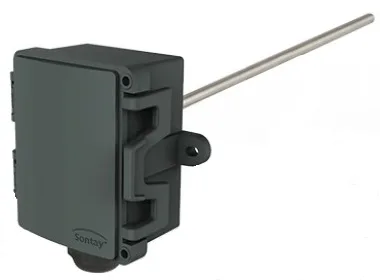

TT-I-CVO-250

£85.33

TT-I-CVO-250 Immersion Temperature Sensor suitable for monitoring temperature in pipework systems. PT100 temperature sensing elements housed in a 250mm x 6mm diameter Stainless Steel probe with an IP65 housing. Selectable 4-20mA or 0-10vDC output options with 4 pre-set selectable temperature ranges (-10 to +40°C or -10 to +110°C) Power supply 24vDC

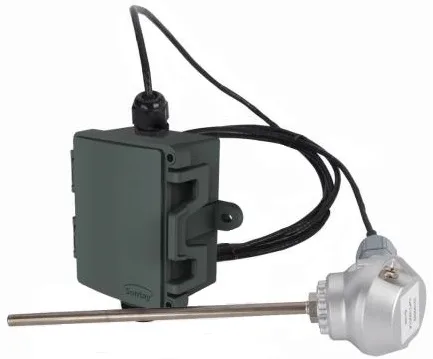

TT-IH-CVO

£147.68

TT-IH-CVO High Temperature Immersion Sensor suitable for monitoring temperature in pipework systems. PT100 temperature sensing elements housed in a 150mm x 6mm diameter Stainless Steel probe with a 1m cable back to an IP65 housing. Selectable 4-20mA or 0-10vDC output options with 4 pre-set selectable temperature ranges (-10 to +40°C, -10 to +110°C, -10 to +160°C or 0 to +400°C.) Power supply 24vDC

TT-IH-CVO-250

£184.90

TT-IH-CVO High Temperature Immersion Sensor suitable for monitoring temperature in pipework systems. PT100 temperature sensing elements housed in a 250mm x 6mm diameter Stainless Steel probe with a 1m cable back to an IP65 housing. Selectable 4-20mA or 0-10vDC output options with 4 pre-set selectable temperature ranges (-10 to +40°C, -10 to +110°C, -10 to +160°C or 0 to +400°C.) Power supply 24vDC

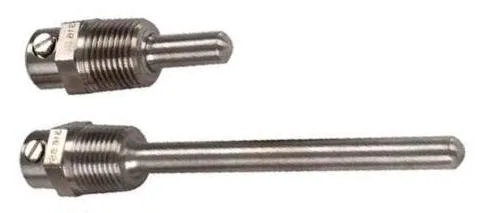

TT-PO521-65

£12.54

Stainless Steel 316 thermowell with 1/2 inch BSPT male thread suitable for temperature probes up to 6mm in diameter. Overall length 65mm with an immersion length of 25mm and external diameter of 9.45mm (internal diameter 6.25mm). Suitable for use in systems up to 16 Bar with a max flow rate of 18m/s and in a temperature range of -20 to +400 C
