Description

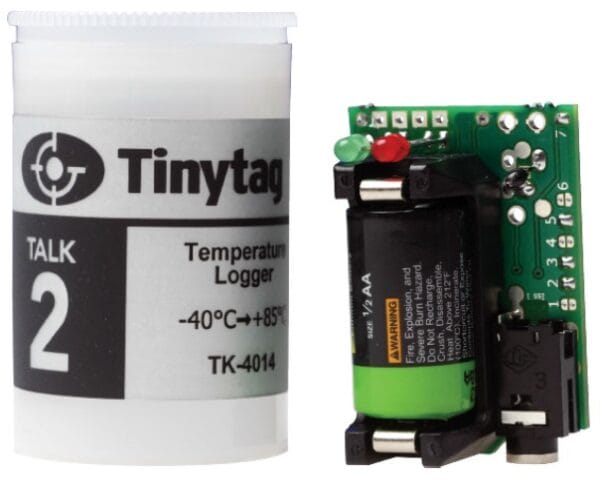

The TK-4014 Tinytag Talk 2 data logger is a compact data logger that provide accurate temperature monitoring. The TK-4014 has been specifically designed as a low cost temperature loggers for monitoring temperature in vaccine and medical fridges and is a very popular logger for building condition monitoring and academia. The lightweight 35mm film canister case allows for easy cleaning and can be completely separated from the logger itself for more thorough cleaning..

Features

• Temperature Range: -40 to +85°C
• Internal memory for up to 16,000 readings
• Logging rates from 1 sec up to 10 days.
• Opaque 35mm film canister case
• 2 user programmable alarms
• Delayed start option (up to 45 days)
• IP54 splashproof casing
• User replaceable battery

Popular Applications

• Pharmaceutical storage
• Cold store monitoring
• Medical fridge & freezer temperature monitoring and profiling
• Museum display and repository
• Building condition monitoring
• Deep Subsea applications when combined with the ACS-0001 enclosure.

Physical Specifications		Sensor Specifications
Total Reading Capacity:	16,000 Readings	Sensor Type:	Internal 10K NTC Thermistor Sensor
Memory Type:	Non-Volatile	Measuring Range:	-40 to +85°C (-40 to +185°F)
Reading Types:	Actual, Min, Max	Reading Resolution:	0.05°C or better
Logging Interval:	1 sec to 10 days	Response Time:	25 mins to 90% FSD in moving air
Delayed Start:	Relative/Absolute (up to 45 days)	Sensor Accuracy:
Stop Options:	When full After n Readings Never (overwrite oldest data)
Alarms:	2 fully programmable; latchable
Operational Temperature Rating:	-40 to +85°C (-40 to +185°F)
IP Rating:	IP54 (Splashproof)
Case Dimension:	34mm Diameter x 54mm High
Weight:	30g

The TK-4014 can be downloaded using the USB cable, Ref CAB-0005-USB. The download cable connects to the logger inside the canister and allows for configuration and downloading data.
