The Tinytag Talk 2 series is a range of compact, 16-bit high-resolution data loggers designed for precise temperature, voltage, and current monitoring in indoor or lab environments. This versatile series supports both internal sensing and external thermistor probes, offering a cost-effective, battery-powered solution for long-term data acquisition via the Tinytag Explorer software interface.
Specification
| Memory Size | 16K (Non-volatile) |
| Readings | 16000Â (approx) |
| Resolution | 12 or 16 bit |
| Delayed Start | Relative / Actual (up to 45 days) |
| Stop Options | When full, After No. of Readings |
| Reading Types | Actual, Minimum, Maximum |
| Logging Interval | 1 second to 4.5 hours |
| Offload | While stopped |
| Functional Range | -40 to +85°C |
| IP Rating | IP54 Splash proof (IP20 Without Canister) |
| Battery Life | Up to 5 years |
| Dimensions | 34mm x 54mm |
| Weight | 30g |

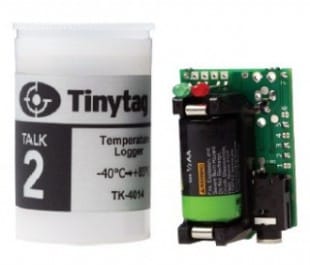

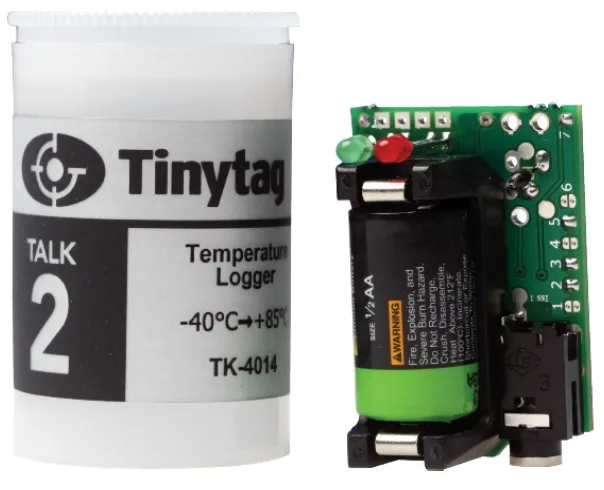

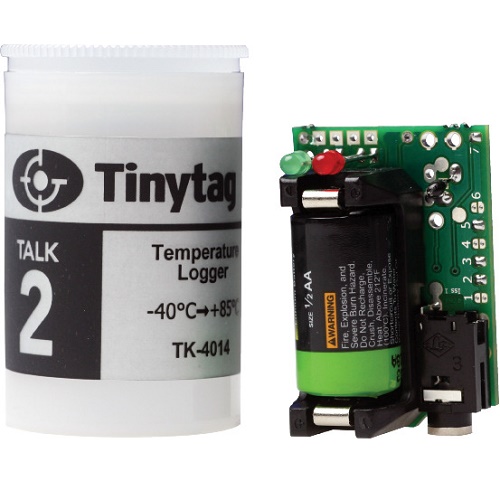

Tinytag Talk 2 data loggers are small, lightweight and economical data loggers encased inside a standard 35mm film canister. Extremely reliable and very easy to use make them suitable for a vast range of applications including fridge monitoring, building environment monitoring and academic applications.
Tinytalk 2 Range
| Specification | Standard Temp TK-4014 |
Medical Temp TK-4014-MED |
Egg Logger TK-4014-V1 |

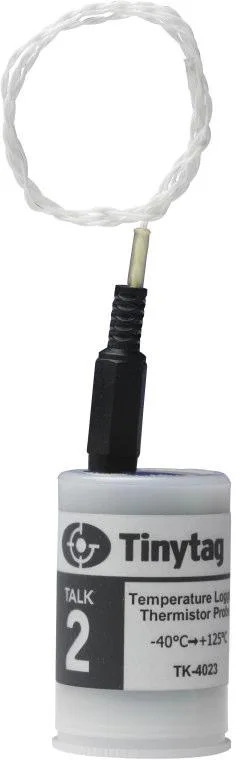

Ext. Probe TK-4023-PK |

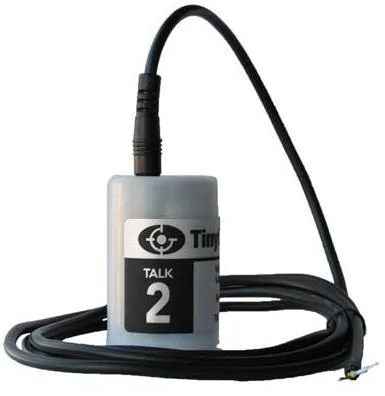

Voltage TK-4702 |
Low Voltage TK-4703 |
Current TK-4802 |
| Primary Use | Ambient Monitoring | Vaccine/Fridge | Incubation | Pipe/Oven Temp | Process Signals | Process Signals | Process Signals |
| Sensor Type | Internal NTC | Internal NTC | Internal NTC | External (PB-5005-0M6) | External (CAB-3233) | External (CAB-3233) | External (CAB-3233) |
| Range | -40 to +85°C | -40 to +85°C | 0 to +60°C | -40 to +125°C | 0-25V | 0-2.5V | 0-20mA |
You will also require Tinytag Explorer software and a CAB-0005 Data Download Cable to use these data loggers.
