Description

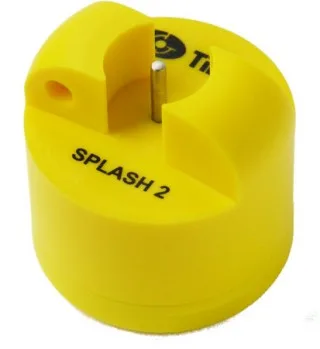

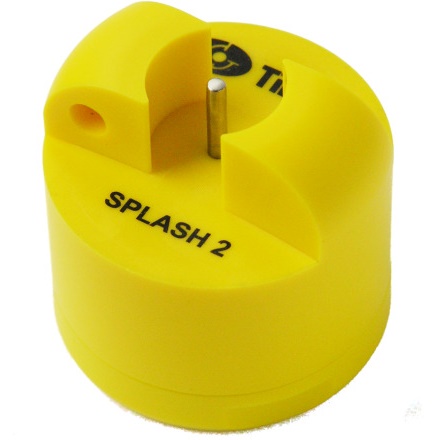

The Tinytag Splash is fully cased in resin making it robust, waterproof and able to stand temperatures of over 100°C. Ideal for use in dishwashers, washer disinfectors and other harsh environments or during food processing. The Tinytag Splash 2 can be secured in place by a small mounting hole in the top to stop is being thrown around inside the machinery. The unit’s bright yellow casing ensures it is easily found after, allowing it to be easily retrieved for collecting the temperature data. The Tinytag Splash 2 data loggers are ideal for monitoring temperature in cleaning, pasteurisation and other food processing processes. The TG-4105 can be downloaded using the inductive pad, Ref ACS-3030. The inductive pad allows many loggers to be quickly downloaded.
Features
- Fast response time
- Submersible temperature recorder
- Waterproof to 15m
- 32,000 reading capacity
- User-programmable logging interval
- 2 user-programmable alarms
- Delayed and trigger-start options
- 3 stop options
- Low battery warning
Popular Applications
- Dish Washers
- Food Processing
- Pasteurisation
| Specifications | Reading Specifications | ||
| Memory Size: | 32,000 Readings | Sensor Type: | PT1000 (Integral Probe) |
| Delayed Start: | Relative / Absolute (up to 45 days) | Measuring Range: | -40 to 175°C (-22 to +221°F) |
| Stop Options: | When full, After No. of Readings or Never | Response Time (in water): | 10 seconds to 90% FSD |
| Reading Types: | Actual, Minimum, Maximum | Reading Resolution: | 0.01°C or better |

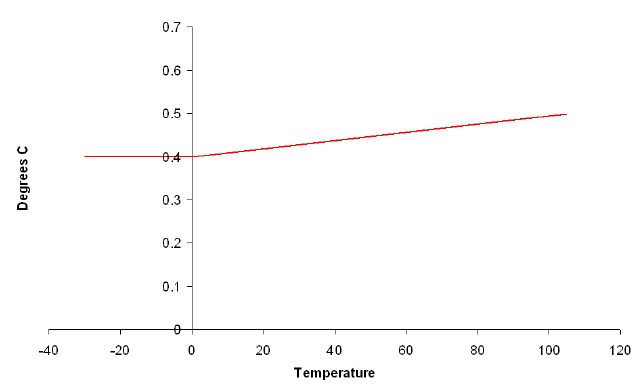

| Logging Interval: | 1 second to 10 Days | Reading Accuracy: | |
| Offload: | While stopped or in minute logging mode |  |
|
| Operational Range: | -30 to +105°C (-22 to +221°F) | ||
| Alarms: | 2 Fully Programmable, Latchable. | ||
| Battery Type: | SER-SPL2 (Return for replacement) | ||
| Battery Life: | Annual replacement advised | ||
| Case Dimensions: | Diameter 51mm x 51mm | ||
| Mounting: | 6mm hole for securing in place. | ||
| IP Rating: | IP68 (Waterproof, up to 15m) | ||
| Weight: | 95g | ||
