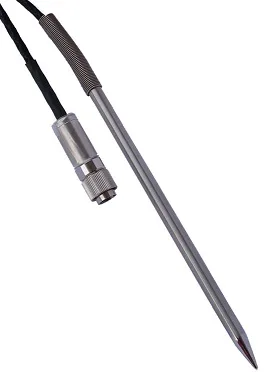

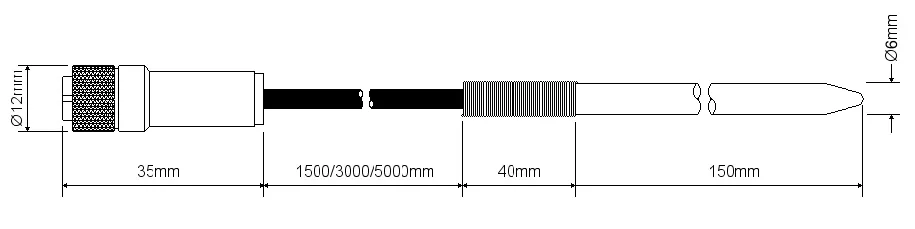

Tinytag oven Temperature Probe with pointed stainless steel probe and PTFE cable, it is ideally suited to oven temperature monitoring applications. The stainless steel probe is 150mm long and 5mm in diameter with PTFE cable available in 1.5m, 3m and 5m lengths. Temperature range -50 to 250°C with a 20 second response time in water. The Tinytag PB-6007 PT100 probe will work with the TGP-4104 or TV-4104 data loggers.
The PB-6007 is an oven temperature probe available with 1.5m, 3m or 5m PTFE cable. The probe is suitable for monitoring temperature ranges from -50 to +250°C and for a variety of in product temperature applications, with a stab probe for easier insertion into hot food products.
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP65 (Splash-proof) | Sensor Type: | PT100 (Class A) |
| Weight: | 75g | Measuring Range: | -50 to 250°C (-58 to +482°F) |

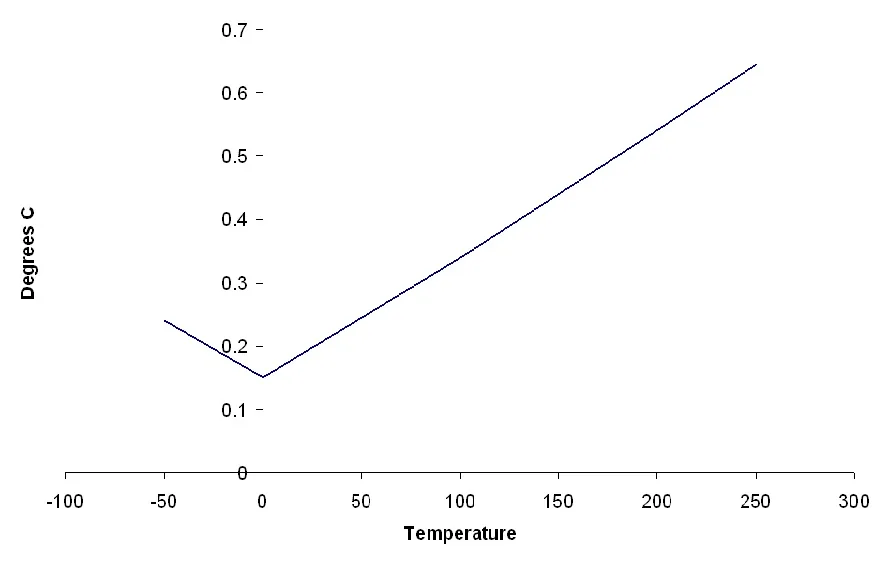

| Response Time Water: | 20 Seconds (to 90% FSD) | Sensor Accuracy: | |
| Moving Air: | Better than 4 Mins (to 90% FSD) |  |
|
| Probe Material: | 316 Stainless steel | ||
| Probe Temperature Rating: | -50 to +250°C (-58 to +482°F) | ||
| Sheath/Cable Join Material: | 316 Stainless steel | ||
| Handle Temperature Rating: | -50 to +250°C (-58 to +482°F) | ||
| Cable Material: | PTFE | ||
| Cable Temperature Rating: | -50 to +250°C (-58 to +482°F) | ||
| Connector Material: | Nickel Plated Brass/Zinc Alloy | ||
| Connector Temperature Rating: | -25 to 85°C (-13 to 185°F) | ||
| Tinytag Plus 2 model number: | TGP-4104 |
| Tinytag View 2 model number: | TV-4104 |
| Tinytag Ultra Radio model numbers: | TR-3101 |
| Tinytag Plus Radio model numbers: | TGRF-4101, TGRF-4102 |
| Tinytag Plus LAN model numbers: | TE-4101, TE-4102 |
PB-6007-1M5
£95.00
PB-6007-3M
£105.00
PB-6007-5M
£115.00
