Description
Features

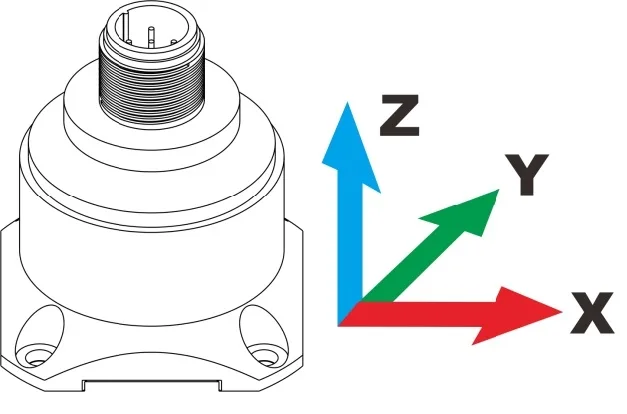

- Three Axis (X, Y & Z) measurement
- Output options RS232, RS485, TTL
- Good performance in anti-impact, vibration and temperature
Applications
- Crash record, fatigue monitoring and prediction
- Shipborne Satellite tracking system
- Traffic system monitoring, roadbed analysis and high-speed railway fault detection
- Flight Simulators
- Low frequency vibration and automatic monitoring
Specifications
| Measuring Range: | ±1g | |
| Measuring Axis: | X, Y, Z | |
| Non-linearity: | <3%FS (Max) | |
| Bandwidth: | 500Hz | |
| Output Rate: | 5, 10, 25, 50, 100, 200, 500, 1000Hz | |
| Output Interface: | RS232/RS485 | |
| Communications Protocol: | Modbus RTU | |
| Power Supply: | 9-36vDC | |
| Operating Current: | <60mA @ 12vDC | |
| Connector: | Standard 5-Pin M12 connector | |
| Weight: | 73.5g | |
| Dimensions:
|
 Magnetic Absorption Screw Positioning |
34.3 x 34.3 x 43.2mm 34.3 x 34.3 x 38.5mm |

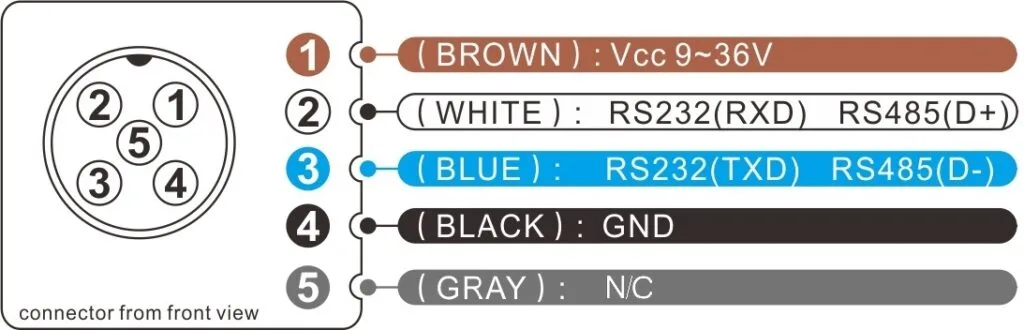

M12 Connections
