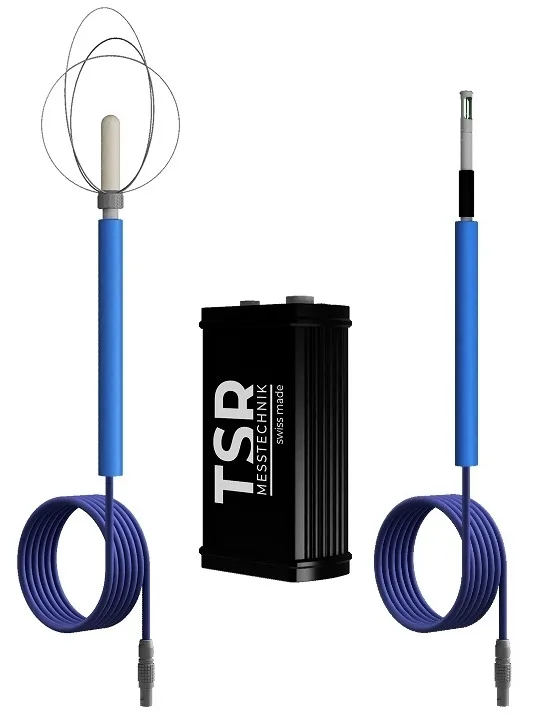

The ThermoAir 6 and 64 anemometers are ideal for low air flow measurement with high resolution (0.01-5m/s) where an analogue output is required to interface with external systems such as PLC’s data loggers or BMS systems. Features include automatic zero point calibration and temperature compensation from 0-40°C.
The ThermoAir6 and ThermoAir64 are specialist instrument for measuring very small air flow rates and determining degree of turbulence. Typical applications for the ThermoAir probes are very small flow rate measurements in laboratories, cleanrooms, air conditioning, drying and refrigeration installations, plus workplace comfort and well-being measurements with analogue inputs suitable for connection to control or monitoring systems in these locations.
Specifications
| Probes | ThermoAir 6 |
ThermoAir 64 | |||
| Power Supply |
15-26vDC | ||||
| Current Consumption | Approx. 35mA | Approx. 40-60mA | |||
| Output Signal |
0 to 1V | 4-20mA | |||
| IP Rating |
IP40 (Aluminium case) | ||||
| Operating Temperature |
0 to 40°C | ||||

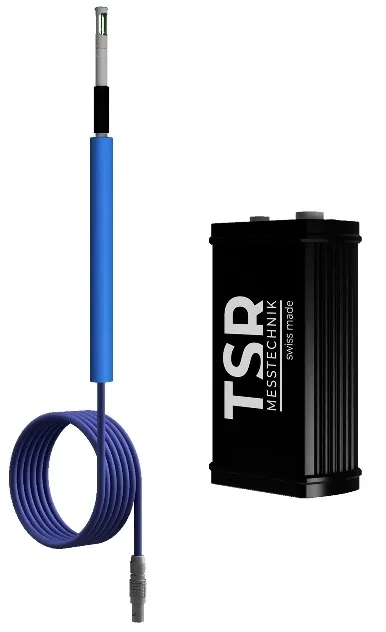

| ThermoAir6/64 Probes | Directional Air Probe |

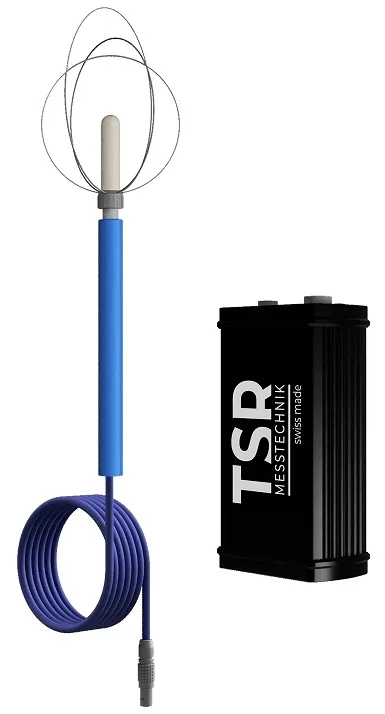

Omni-Directional Air Probe |
| Flow Range | 0.01 – 1 m/s or 0.15 – 5m/s | |
| Compensated Temperature Range |
0 to +40°C | |
| Sensing Head |
8mm | 8mm (110mm protective basket) |
| Shaft Diameter | 15mm | 15mm |
| Probe length | 300mm | 310mm |
The integrated temperature compensation and individual calibration in our accredited SCS wind tunnel are a guarantee of high precision.
97.0269
£1,964.08
97.0272
£1,964.08
97.0273
£2,374.06
97.0274
£2,374.06
97.0275
£1,964.08
Need help with your products or have a question for us on our custom systems? Use the form below to send us a message and our experts will be in touch to help.
