Description

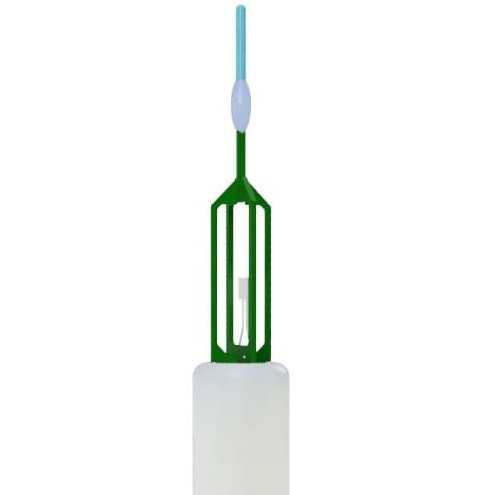

The key benefit of the ThermoAir 20 Omni-directional probes are significantly easier and faster to deploy for area-based measurements, as the operator does not need to waste time aligning the probe to the perceived direction of the flow. For tasks like checking the average air speed across a ventilation grille or mapping the velocity profile of a large room, the omni-directional probe simply needs to be placed at the measurement point.

This feature is particularly valuable for comfort testing and validating ventilation standards in occupied areas, like within a cubicle farm or near hospital beds. These instruments are often used for taking numerous measurements across a fixed grid to calculate an area-averaged air velocity, which is a key parameter for Indoor Air Quality (IAQ) and thermal comfort assessments. The portable handheld ThermoAir 20 display simplifies the measurement process saving time and reducing the margin of error associated with improper directional alignment across dozens of measurement points.

Features

  • Modular concept allows a single instrument to adapt to various different applications.
  • 3.2″ display with button operation, plus option for touchscreen display
  • MC 4.0 ThermoAir are supplied with removable rubber case in red.
  • Minimum, Maximum and Average values continuously selectable
  • Measurement rate of 2 Secs.
  • Internal logger with 1 million reading capacity in 4GB storage
  • Extramodules are available to convert the MC 4.0 display to accept MiniAir 20 Probes and differential pressure tubing.

Specifications

MC4.0 ThermoAir Handheld Display

MC 4.0 Display Unit



Display: 3.2″ TFT Display
Unit of Measure:



 Flow: m/s, km/h, ft/s. mph
Volume: Flow: m³h, l/min, m³/s, cfm
Humidity: %RH
Temperature: °C, F, °K
Pressure: Pa, mBar, mm H20, PSI, VOC, CO2 and PM1: ppm
Logger: Internal 4GB memory, capacity 1 million readings
Power Supply: Lithium Polymer Battery
Battery Life: Approx 15 Hours
Case Dimensions: 168 x 68 x 38mm
IP Rating: IP67
Weight: Approx 300g
Operating Temp: 0 to 60°C
Humidity: 0-99%RH
Protective Case: Removable Red Rubber Case. Also available in Blue, Orange or Green.

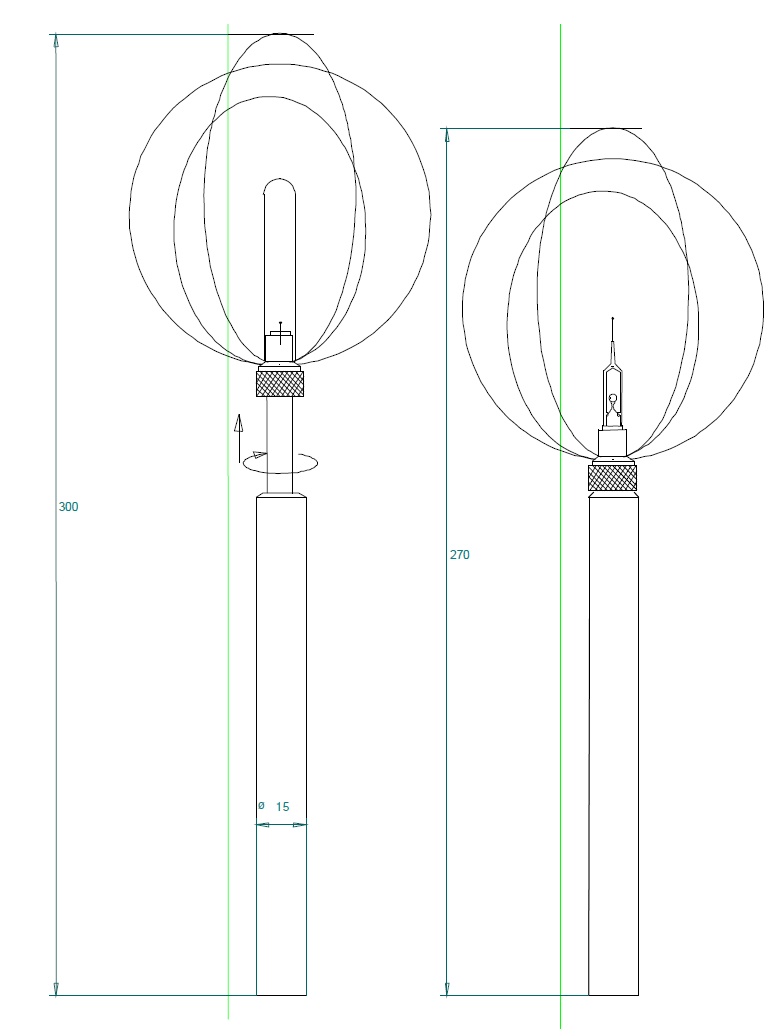

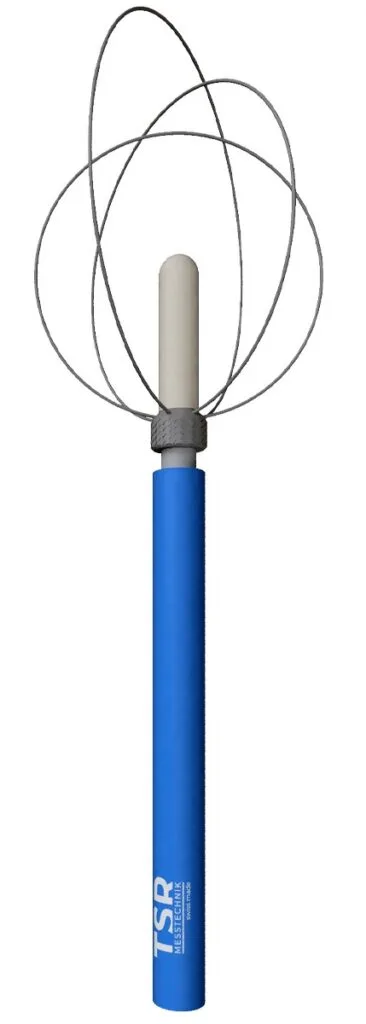

Omni-Directional Probes

Flow Measuring Range:
 0.015 to 1 m/s
or 0.015 to 5m/s
Head Size: 8mm
Shaft Diameter: 15mm
Probe Length: 300mm
Angle of Flow: ±180°
Cable Length: 1.5m (more on request)
