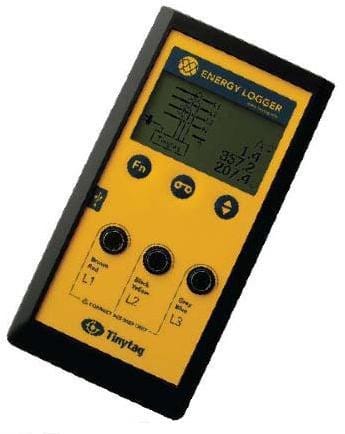

Tinytag Energy Logger Hire Unit, TGE-HIRE. Suitable for monitoring single and three phase power supplies. Ranges Current 0-2000A AC RMS, Voltage 200-250vAC with 2% accuracy. Units are supplied in a carry case with three rogowski current coils (85mm internal loop diameter), UK mains leads, a USB cable, a copy of the Tinytag Explorer software and a user manual.
Hire Per week.
£125.00
The Tinytag Energy Logger can be used to monitor single and three phase energy supplies and is very simple and easy to use portable energy logger. Current measurements are taken using flexible non-invasive coils for quick and easy installation and voltage readings are taken from the UK mains power supply the unit is connected to. The unit provides 6 weeks continuous logging at 5 minute intervals. Each unit is supplied with a carry case, three current coils, UK mains leads, a USB cable, a copy of the Tinytag Explorer software and a user manual.
The Tinytag energy logger’s can be used to monitor individual pieces of equipment through to complete buildings and installations. Suitable for monitoring single or three phase power supplies, it can be used as a hand-held unit for spot checks or as a data logger for longer term assessment. The recorded data can be used to build up energy usage profiles, to determine when pieces of equipment are being used, to troubleshoot power supply problems or highlight inefficient equipment that should be replaced.
Logging Interval: 30 seconds to 10 days
Reading Capacity: Six weeks at the default 5 minute logging interval
Current Range: 2,000A AC RMS (Momentary peak surge current: 2x rated range), resolution 0.1A
Voltage Range: 200-253V AC nominal, resolution 0.1V.
Frequency: Nominal 50/60Hz
Operational Range: 0 to +50°C, 95%RH (non-condensing). For indoor use only!
Case Dimensions: Length 195mm Width 102mm Depth 50mm
Weight: 600g (Including batteries)
PC Connection: USB
Rogowski Coils: Coil Thickness (Diameter) 8mm Internal Loop Diameter, 85mm or 175mm, Cable Length 1m
Mains Power: UK Mains plugs, 200-253vAC
Battery Type: 4 x 1.5V AA Alkaline Batteries
Battery Life: 60 days, typical, based on a battery capacity of 2500mAH*
Logger Current: 1.5mA (10mA when display Consumption backlight is on)
When fitting batteries, observe the correct polarity. *When a mains lead is plugged in, the logger will be mains powered. If the mains should fail, the batteries in the logger will typically keep it recording for 60 days.
The Tinytag Energy Logger Hire, Part Ref: TGE-HIRE, is supplied in a carry case with three current coils, UK mains leads, a USB cable, a copy of the Tinytag Explorer software and a user manual.
