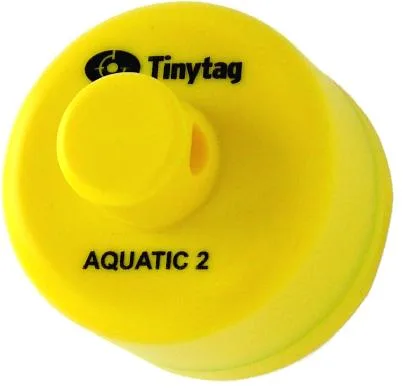

The Tinytag Aquatic 2 Data Logger is designed for long-term immersion and the unit is waterproof to a depth of 500m, making it ideal for environmental monitoring in rivers and oceans. The high visibility yellow case has an attachment point that can be used to secure the logger in position. The lid can be removed to enable user-replacement of the battery. Data is downloaded to the computer via a USB or serial download pad. This ‘wireless connection’ eliminates the need for sockets with waterproof caps which can easily be lost or forgotten.
Features
- Waterproof to 500m
- 32,000 reading capacity
- User-programmable logging interval
- 2 user-programmable alarms
- Delayed and trigger-start option
- 3 stop options
- User-replaceable battery
- Low battery warning
- Robust and completely waterproof case
Popular Applications
- Environmental monitoring
• Fisheries
• Aquaculture
• Rivers - Food Processing
| Specifications | Reading Specifications | ||
| Memory Size: | 32,000 Readings | Sensor Type: | Internal 10K NTC Thermistor Sensor |
| Delayed Start: | Relative / Absolute (up to 45 days) | Measuring Range: | -40 to 70°C (-40 to +158°F) |
| Stop Options: | When full, After No. of Readings or Never | Response Time (in water): | <20 Minutes to 90% FSD in moving water |
| Reading Types: | Actual, Minimum, Maximum | Reading Resolution: | 0.01°C or better |
| Logging Interval: | 1 second to 10 Days | Reading Accuracy: | |
| Offload: | While stopped or in minute logging mode |  |
|
| Operational Range: | -40 to +70°C (-40 to +158°F) | ||
| Alarms: | 2 Fully Programmable, Latchable. | ||
| Battery Type: | SER-9525, Renata CR2450N | ||
| Battery Life: | Annual replacement advised, or prior to deployment. | ||
| Case Dimensions: | Diameter 51mm x 51mm | ||
| Mounting: | Attachment point at top of casing | ||
| IP Rating: | IP68 (Waterproof, up to 50m) | ||
| Weight: | 90g | ||
