TG-4081-SPK

Tinytag Transit 2 (TG-4081-SPK) Temperature Logger Starter Pack. Temperature range -40 to +70°C. Memory 8,000 readings with delayed and magnetic switch trigger start options, plus 2 programmable alarms. Logging intervals 1 sec to 10 days with min, max & actual readings. Data can be downloaded via the USB cable, or the ACS-3030 inductive pad. Each pack contains 1 x TG-4081, 1 x SWCD-0040 and 1 x CAB-0005-USB.

£95.00

Need help finding the right product?

Downloads

Tinytag Transit 2 - TG-4081

Description

The TG-4081 has been specifically designed for monitoring the temperature of products during shipment monitoring in mind, the EN 12830 compliant Tinytag Transit 2 is a robust, lightweight temperature recorder. The unit’s low profile means that it can be easily slipped into product packaging and easily retrieved again for collecting the temperature data. The Tinytag Transit loggers are ideal for monitoring shipments of pharmaceuticals, foodstuffs and many other products.

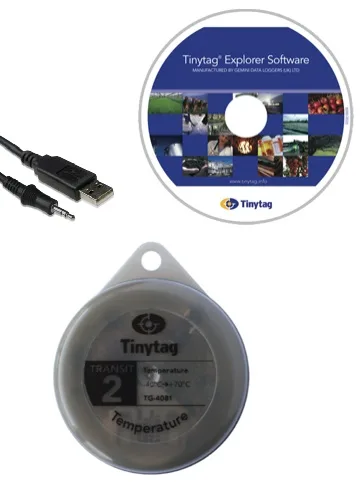

The TG-4081-SPK is a starter pack that includes the TG-4081 Transit 2 data logger, software and USB download cable. This pack has everything you need to set the unit up on your PC and connect to the unit. This is an ideal kit for spot checking temperatures during shipping, defrost cycles in freezers or any other in-transit temperature monitoring.

The TG-4081 can be downloaded using either the USB cable, Ref CAB-0005-USB, or an inductive pad, Ref ACS-3030. The inductive pad allows many loggers to be quickly downloaded and doesn’t require the casings to be opened or plugging in cables. The inductive pad also helps prevent condensation building up inside the casing when the loggers are deployed from a warm office.



Features

  • Temperature Range: -40 to +70°C
  • Internal memory for up to 8,000 readings
  • Logging rates from 1 sec up to 10 days.
  • Unobtrusive grey casing
  • 2 user programmable alarms
  • Delayed and trigger start options
  • IP54 splashproof casing
  • User replaceable battery
  • Cable and inductive pad connectivity
  • EN 12830 compliant
  • Sold as a starter pack with download cables and software



Popular Applications

  • Cold chain monitoring
  • Pharmaceutical transportation
  • Dry goods transportation



 Specifications
Memory Size 8,000 Readings
Resolution 0.01°C
Delayed Start Relative / Absolute (up to 45 days)
Stop Options When full, After No. of Readings or Never
Reading Types Actual, Minimum, Maximum
Logging Interval 1 second to 10 Days
Offload While stopped or in minute logging mode
Functional Range -40 to +70°C
IP Rating IP54 Splashproof
Battery Life Annual replacement advised
Dimensions Diameter 60.2mm x 15.3mm
Weight 28g



The link below takes you to the main Tinytag Transit logger page to view the related spares and accessories available for the Tinytag Transit data loggers.

ACS-6000

£10.00

Trigger Start Magnet for various Tinytag data loggers. The magnet is ideal for delayed triggering of Tinytag loggers that have been set up for a trigger start. The magnet is merely passed over the correct location on the logger and the lights will start to flash showing that logging procedure has been started. The position of the unit’s trigger start switch is indicated by the • • • label on the back of the logger.

ACS-3030

£50.00

Tinytag USB inductive pad for configuring and downloading the Tinytag Splash 2, Aquatic 2 and Transit 2 loggers. The ACS-3030 inductive pad is the download connection for Tinytag inductive data loggers and is ideal for use in wet or harsh environments, or where large numbers of loggers are being programmed. It plugs into the PC via USB cable facilitating the offloading and configuration of multiple loggers without the need to directly connect a cable to the logger. Cable length 1m. This pad is supplied with a CD containing a copy of the Tinytag USB User Guide.

SER-9514

£3.00

Service Kit for Tinytag Transit 2 & CO2 data loggers. This kit contains a replacement battery and a service instruction sheet for the Transit 2 (TG-4080 & TG-4081) and CO2 (TGE-0010 & TGE-0011) data loggers.
