TG-4081

Tinytag Transit 2 (TG-4081) Temperature Logger in an unobtrusive grey case. Temperature range -40 to +70°C. Memory 8,000 readings with delayed and magnetic switch trigger start options, plus 2 programmable alarms. Logging intervals 1 sec to 10 days with min, max & actual readings. Data can be downloaded via the USB cable, or the ACS-3030 inductive pad.

£55.00

Need help finding the right product?

Downloads

Tinytag Transit 2 - TG-4081

Description

The TG-4081 has been specifically designed for monitoring the temperature of products during shipment monitoring in mind, the EN 12830 compliant Tinytag Transit 2 is a robust, lightweight temperature recorder. The unit’s low profile means that it can be easily slipped into product packaging. The Tinytag Transit loggers are ideal for monitoring shipments of pharmaceuticals, foodstuffs and many other products.

The TG-4081 can be downloaded using either the USB cable, Ref CAB-0005-USB, or an inductive pad, Ref ACS-3030. The inductive pad allows many loggers to be quickly downloaded and doesn’t require the casings to be opened or plugging in cables. The inductive pad also helps prevent condensation building up inside the casing when the loggers are deployed from a warm office.

Features

  • Temperature Range: -40 to +70°C
  • Internal memory for up to 8,000 readings
  • Logging rates from 1 sec up to 10 days.
  • Unobtrusive grey casing
  • 2 user programmable alarms
  • Delayed and trigger start options
  • IP54 splashproof casing
  • User replaceable battery
  • Cable and inductive pad connectivity
  • EN 12830 compliant



Popular Applications

  • Cold chain monitoring
  • Pharmaceutical transportation
  • Dry goods transportation



 Specifications
Memory Size 8,000 Readings
Resolution 0.01°C
Delayed Start Relative / Absolute (up to 45 days)
Stop Options When full, After No. of Readings or Never
Reading Types Actual, Minimum, Maximum
Logging Interval 1 second to 10 Days
Offload While stopped or in minute logging mode
Functional Range -40 to +70°C
IP Rating IP54 Splashproof
Battery Life Annual replacement advised
Dimensions Diameter 60.2mm x 15.3mm
Weight 28g

The link below takes you to the main Tinytag Transit logger page to view the related spares and accessories available for the Tinytag Transit data loggers.

TG-4081-X5

£220.00

5 Pack of Tinytag Transit 2 (TG-4081) Temperature Logger in an unobtrusive grey case. Temperature range -40 to +70°C. Memory 8,000 readings with delayed and magnetic switch trigger start options, plus 2 programmable alarms. Logging intervals 1 sec to 10 days with min, max & actual readings. Data can be downloaded via the USB cable, or the ACS-3030 inductive pad.

TG-4081-SPK

£95.00

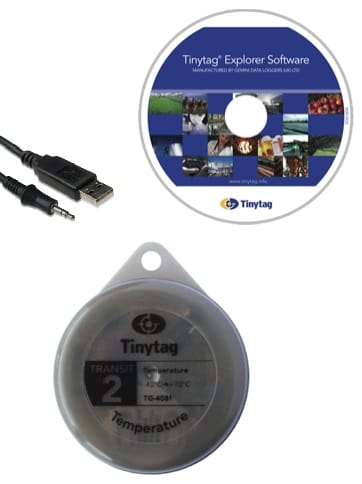

Tinytag Transit 2 (TG-4081-SPK) Temperature Logger Starter Pack. Temperature range -40 to +70°C. Memory 8,000 readings with delayed and magnetic switch trigger start options, plus 2 programmable alarms. Logging intervals 1 sec to 10 days with min, max & actual readings. Data can be downloaded via the USB cable, or the ACS-3030 inductive pad. Each pack contains 1 x TG-4081, 1 x SWCD-0040 and 1 x CAB-0005-USB.

ACS-6000

£10.00

Trigger Start Magnet for various Tinytag data loggers. The magnet is ideal for delayed triggering of Tinytag loggers that have been set up for a trigger start. The magnet is merely passed over the correct location on the logger and the lights will start to flash showing that logging procedure has been started. The position of the unit’s trigger start switch is indicated by the • • • label on the back of the logger.

SWPK-3-USB

£75.00

Tinytag Explorer Software and download cable starter pack. The SWPK-3-USB starter pack contains USB inductive pad, Software CD, with device drivers, and an English, French, German, Italian, Spanish and Swedish quick start guide. This pack is suitable for use with the Tinytag Transit, Splash and Aquatic data loggers. The Tinytag software comes with a site licence allowing installation on multiple PCs at the same location, additional software should be purchased when used at a different site location.

ACS-3030

£50.00

Tinytag USB inductive pad for configuring and downloading the Tinytag Splash 2, Aquatic 2 and Transit 2 loggers. The ACS-3030 inductive pad is the download connection for Tinytag inductive data loggers and is ideal for use in wet or harsh environments, or where large numbers of loggers are being programmed. It plugs into the PC via USB cable facilitating the offloading and configuration of multiple loggers without the need to directly connect a cable to the logger. Cable length 1m. This pad is supplied with a CD containing a copy of the Tinytag USB User Guide.
