Description

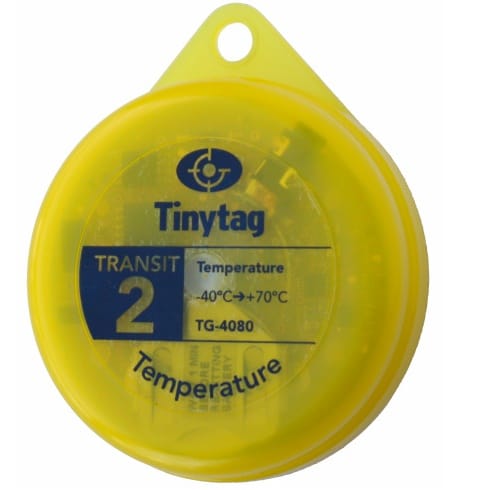

The TG-4080 has been specifically designed for monitoring the temperature of products during shipment monitoring in mind, the EN 12830 compliant Tinytag Transit 2 is a robust, lightweight temperature recorder. The unit’s low profile means that it can be easily slipped into product packaging and the bright yellow casing allows it to be easily retrieved for collecting the temperature data. The Tinytag Transit loggers are ideal for monitoring shipments of pharmaceuticals, foodstuffs and many other products.

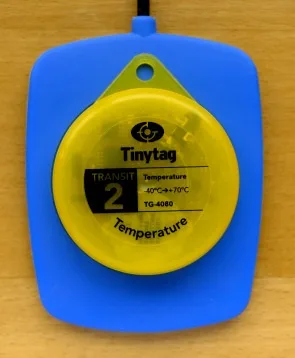

The TG-4080 can be downloaded using either the USB cable, Ref CAB-0005-USB, or an inductive pad, Ref ACS-3030. The inductive pad allows many loggers to be quickly downloaded and doesn’t require the casings to be opened or plugging in cables. The inductive pad also helps prevent condensation building up inside the casing when the loggers are deployed from a warm office.

Features

• Temperature Range: -40 to +70°C
• Non-Volatile memory for up to 8,000 readings
• Logging rates from 1 sec up to 10 days.
• Highly visible bright yellow casing
• 2 user programmable alarms
• Delayed and trigger start options
• Stops when Full, after n Readings or Never.
• IP54 splashproof casing
• User replaceable battery (Allow 1 minute before replacing to reset logger)
• Download cable and inductive pad connectivity options
• EN 12830 compliant (S; T; C; D; 1)

Popular Applications

• Cold chain monitoring
• Pharmaceutical transportation
• Dry goods transportation
• Environmental monitoring

Specifications		Reading Specifications
Memory Size:	8,000 Readings	Sensor Type:	10K NTC Thermistor (Internally Mounted
Delayed Start:	Relative / Absolute (up to 45 days)	Measuring Range:	-40 to 70°C (-40 to +158°F)
Stop Options:	When full, After No. of Readings or Never	Response Time (in moving air):	10 mins to 90% FSD
Reading Types:	Actual, Minimum, Maximum	Reading Resolution:	0.01°C or better

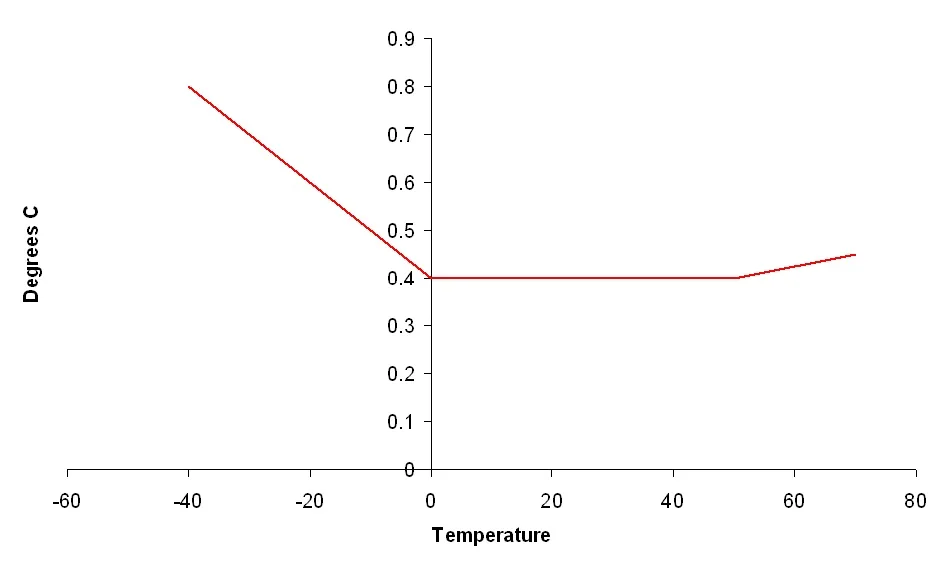

Logging Interval:	1 second to 10 Days	Reading Accuracy:
Offload:	While stopped or in minute logging mode
Operational Range*:	-40 to +70°C (-40 to +158°F)
Alarms:	2 Fully Programmable, Latchable.
Battery Type:	Renata CR2325
Battery Life:	Annual replacement advised
Case Dimensions:	Diameter 60.2mm x 15.3mm
Hanging Tab:	Extra 12mm with 6mm mounting hole.
IP Rating:	IP54 (Splashproof)
Weight:	28g

*The Operational Range indicates the physical limits to which the unit can be exposed, not the reading range over which it will record.

Alarms

When logging, two status LEDs are visible through the lid of the logger. The flash patterns for these indicators are as follows:

Green LED flash every 4 seconds: Logger is currently logging
Green LED flash every 8 seconds: Logger is waiting to log (trigger or delayed start set)
Red LED flash every 4 seconds: Alarm limit breached during logging

A logger with latched alarms will only flash its red LED whilst the logger is recording, if the logger stops the red LED will stop as well.

The data logger can be programmed to flash the Red LED when the temperature exceeds limits set by the customer. The user can set two independent values to
trigger the flashing of the red LED, and both values can be set to latch so that a unit will continue to show an alarm even when the temperature goes back to acceptable values once again.
