Description

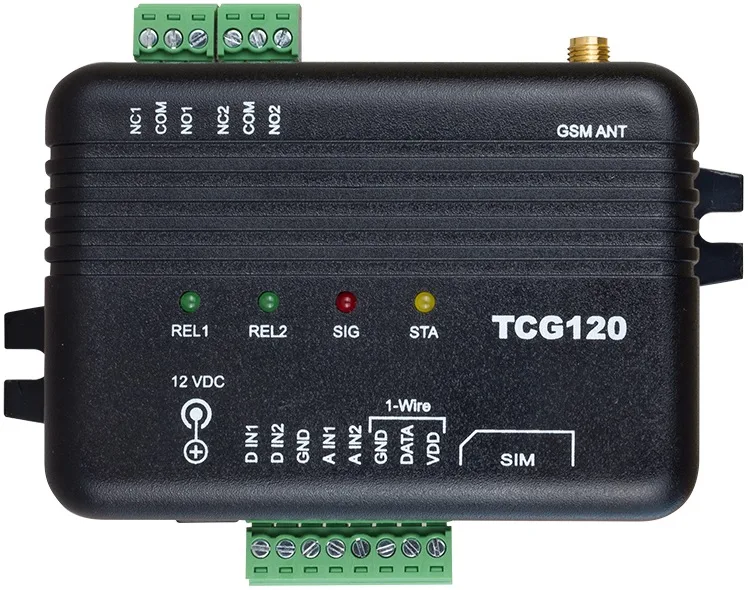

The Teracom TCG120-4G is a wireless I/O module designed for robust “last-mile” communication. It ensures reliable connectivity with versions supporting 4G, 3G, and 2G (GSM-GPRS) networks, automatically adapting to available coverage. If needed, you can manually select the network during setup. For inputs and outputs, it includes two digital inputs, two analogue inputs, and two relays with both normally open and normally closed contacts. Additionally, it features a 1-Wire interface that supports up to four Teracom sensors, expanding its monitoring capabilities.

Setting up the TCG120-4G is straightforward; you can use a web-based graphical interface initially. Once deployed, it can be easily configured remotely using SMS or HTTP API commands. This module also supports offline operation, allowing its relays to be triggered by alarm conditions from any monitored parameter, be it digital inputs, analogue inputs, or connected sensors. This means the device can control processes directly without external commands. For integration into SCADA systems, the TCG120-4G supports machine-to-machine (M2M) communication protocols like HTTP API (sending full status in XML or JSON) and MQTT (sending selected parameters efficiently, even on limited bandwidth networks).

The TCG120-4G covers the following bands:

4G LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B34/B38/B39/B40/B41
3G: B1/B2/B4/B5/B6/B8/B19
2G: B2/B3/B5/B8

Features

• 4G LTE, 3G, and 2G connectivity
• Setup via WEB interface through the USB
• 2 digital (”dry contact”) inputs
• 2 analogue input with 0 to 60VDC range
• 2 relay output with normally open and normally closed contacts
• 1-Wire support for up to 4 Teracom sensors
• SMS alarm alerts (up to 5 numbers)
• TLS over SMTP support
• Email alarm alerts (up to 5 email recipients)
• GSM Geolocation, Google or Unwired labs registration required
• MQTT support
• Periodical HTTP Post with XML/JSON status file
• Remote setup with HTTP API or SMS commands
• Firmware update over the air

Applications

• Environmental monitoring of agriculture sites and vehicles
• Remote control of railway facilities and vehicles
• Remote control of water pumps
• Remote monitoring and control of distant facilities
• GSM Geolocation of refrigerated vehicles
• Drug and food storage monitoring

Specifications

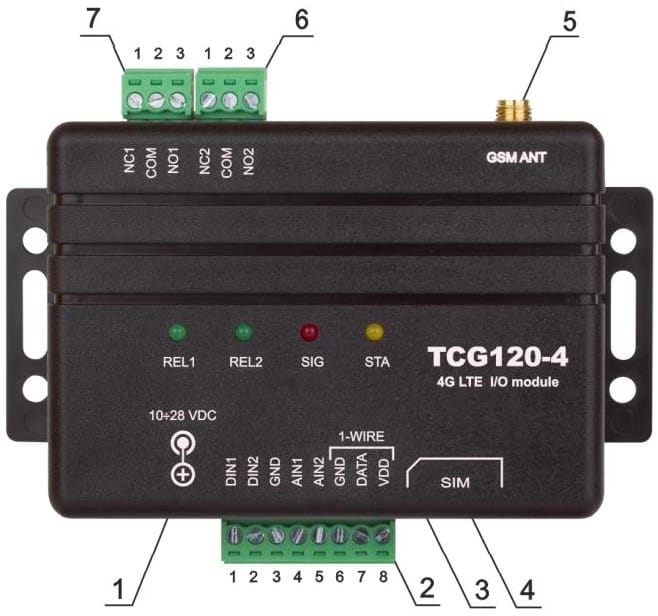

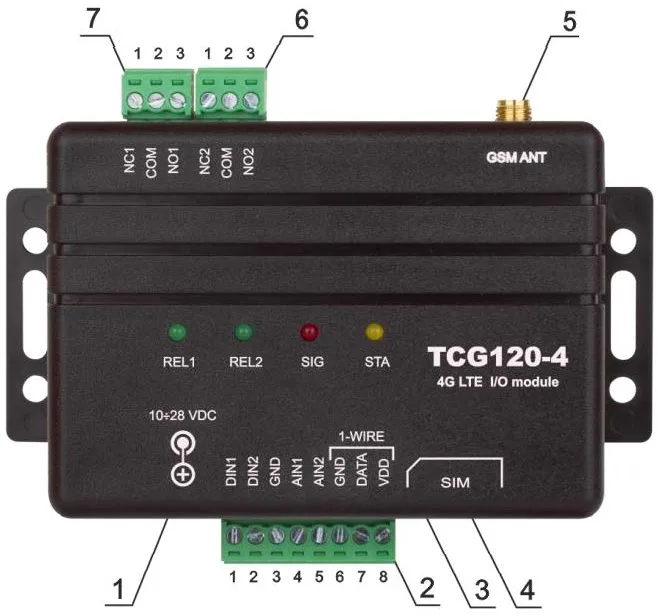

Connection Diagram

The TCG120-4E is a cheaper option but covers a more limited 4G and 2G network bands. This unit can be found here.

A full selection of compatible 1-Wire sensors can be found on www.omniinstruments.co.uk/c/remote-monitoring/remote-monitoring-over-1-wire-networks
